Block Cameras ML-KX-30GS IP 2 MP Zoom Module Camera With 30x Optical Zoom, 60fps, H.264/H.265, Global Shutter

ML-KX-30GS Spec Sheet

The Block Cameras ML-KX-30GS is a high-performance 2MP IP zoom module camera featuring a 1/3” Sony CMOS global shutter sensor, delivering crystal-clear image quality with up to 60fps video streaming. With a powerful 30x optical zoom and 10x digital zoom, this camera excels in detail capture even in challenging lighting conditions, with a low minimum illumination of 0.03 Lux (color) and 0 Lux (BW with IR LED).

It supports H.264 and H.265 compression for efficient video streaming, including quadruple IP streaming for multiple viewing options. With a high resolution of 2048 x 1536, the camera offers 256 zoom/focus presets, auto/manual focus modes, and adjustable day/night settings for versatility in various lighting conditions. The camera’s advanced features include 2D/3D noise reduction, privacy masking (up to 8 zones), and AI motion detection, making it ideal for industrial surveillance, traffic monitoring, and high-security applications.

With seamless integration options like HTTP RESTful API and Onvif compatibility, along with support for external storage via microSD, this compact camera is built to withstand varying environmental conditions with an operational temperature range of -10°C to +50°C.

Features:

• 2MP resolution with a 1/3” Sony CMOS global shutter sensor
• 30x optical zoom and 10x digital zoom
• 60fps streaming at 2048 x 1536 resolution
• H.264, H.265, and JPEG compression support
• Quadruple IP streaming for flexible viewing options
• 256 zoom/focus presets for enhanced control
• Auto and manual focus modes, including zoom trigger and one-push focus
• 10 adjustable day/night levels (auto, day, night, external input)
• 2D/3D noise reduction for clear imaging in low-light conditions
• Privacy masking (up to 8 zones)
• AI motion detection for intelligent surveillance
• Electronic shutter speed from 1/25 to 1/5000 for flexible exposure control
• DC auto iris and IR cut filter for improved image quality
• Onvif compliance and HTTP RESTful API for easy integration
• External storage support via microSD for data storage
• Power supply: 12V DC
• Operating temperature range: -10°C to +50°C

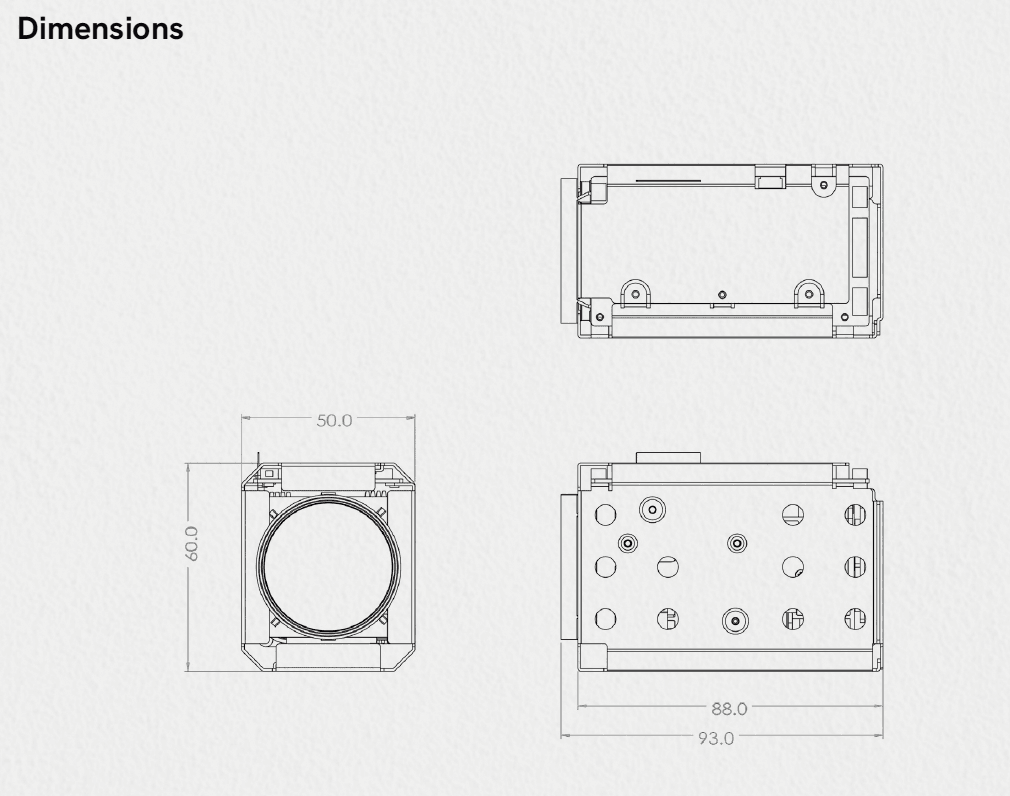

• Compact size (50 x 60 x 93mm) and lightweight (290g)

Applications:

• Industrial surveillance
• Traffic monitoring
• High-security systems
• Public safety and law enforcement
• Commercial and retail monitoring
• Smart city surveillance
• Critical infrastructure protection
