If you’ve ever tried integrating a professional block camera into an embedded AI system, you already know the problem:
The camera works. The Jetson works. But they don’t speak the same language.
That’s exactly where the FCB-EV9520L LVDS to MIPI CSI-2 Bridge Board comes in—and why it’s quietly becoming one of the most important pieces in modern embedded vision systems.
The Integration Gap No One Talks About
High-performance block cameras—like those from Sony, KT&C, Tamron and Wonwoo —typically output LVDS video. That’s great for signal integrity and reliability.
But platforms like the NVIDIA Jetson Nano and Jetson Orin Nano?
They expect MIPI CSI-2.
So without a proper bridge, you’re stuck:
- Adding bulky converters
- Introducing latency
- Or worse—abandoning high-quality cameras altogether
What the MIPI-CSI2-EV Actually Does
The MIPI-CSI2-EV solves this cleanly.

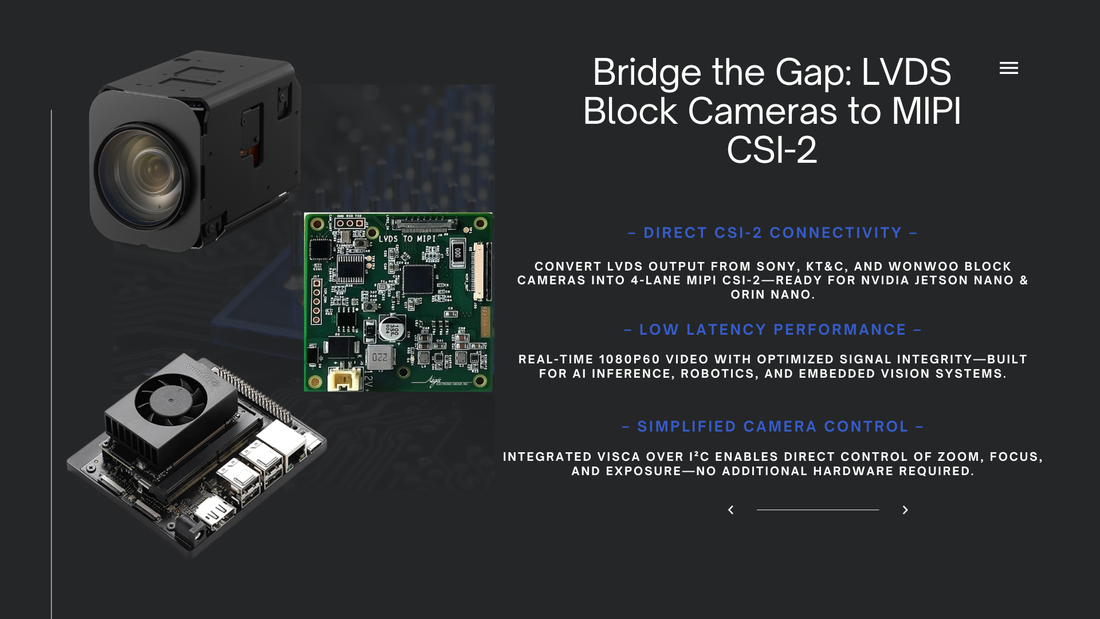

It converts LVDS video directly into a 4-lane MIPI CSI-2 output, allowing you to connect professional block cameras straight into embedded AI platforms.
No hacks. No messy workarounds.
Just a clean pipeline:
Block Camera → LVDS → MIPI-CSI2-EV → Jetson → AI Processing
And it does it while maintaining:
- Full HD 1080p @ 60fps
- Low latency performance
- High signal integrity for AI workloads
Built Specifically for NVIDIA Jetson Systems
This isn’t a generic converter board.
The MIPI-CSI2-EV is purpose-built for:
- Jetson Nano
- Jetson Orin Nano Super Developer Kit
That means:
- No guesswork on compatibility
- No unstable drivers
- No bottlenecks in your vision pipeline
If you're running DeepStream, OpenCV, or custom AI models, this board fits right into your workflow.
One Board, Multiple Camera Ecosystems
One of the biggest advantages—and a major SEO win for your site—is compatibility.
This board works across multiple major block camera brands:
- Sony FCB Block Cameras
- KT&C Block Cameras
- Wonwoo Modules
- Tamron Block Cameras
Instead of designing around a single camera ecosystem, you get flexibility across your entire product stack.
That’s huge for:
- Engineers prototyping systems
- Integrators building scalable solutions
- Teams switching camera vendors mid-project
Control + Video in One Clean Interface
Here’s where it gets even better.
The board doesn’t just handle video—it also handles camera control.
Through an onboard I²C-to-UART bridge, it enables:
- VISCA control over Jetson
- Zoom, focus, exposure adjustments
- No need for external serial adapters
So instead of juggling:
- Video cables
- Control lines
- External converters
You get a single, integrated solution.
Designed for Real-World Environments
This isn’t a lab-only board.
The MIPI-CSI2-EV is built for deployment:
- Industrial temperature range: –25°C to +85°C
- Compact footprint: 50 × 50 mm
- 12V regulated input
- EMI-optimized layout
Whether you’re working on:
- Robotics platforms
- UAV/drone payloads
- Defense imaging systems
- Industrial automation
…it’s designed to hold up.
Where This Board Really Shines
This is where things get interesting.
Because once you remove the integration barrier, you unlock new possibilities:
AI Edge Computing
Run real-time inference directly from high-quality optical data.
Robotics & Autonomous Systems
Low latency = better decision-making.
UAV / Drone Vision
Lightweight + compact + reliable.
Machine Vision & Inspection
Use proven block cameras instead of limited USB options.
Security & Surveillance
Leverage zoom block cameras with AI analytics.
Why This Matters More Than You Think
A lot of vision systems fail—not because of bad AI—but because of bad input data or unstable pipelines.
The MIPI-CSI2-EV fixes a foundational problem:
It lets you use the right camera with the right compute platform—without compromise.
And that’s where performance gains really happen.
Final Thoughts
If you're working with NVIDIA Jetson platforms and want to use professional LVDS block cameras, this board isn’t optional—it’s essential.
It simplifies integration, reduces latency, and opens up compatibility across major camera brands like Sony, KT&C, Tamron and Wonwoo.
Want help choosing the right camera + board combo for your system?
Talk to a technical expert → sales@block-cameras.com | (623) 240-0030
