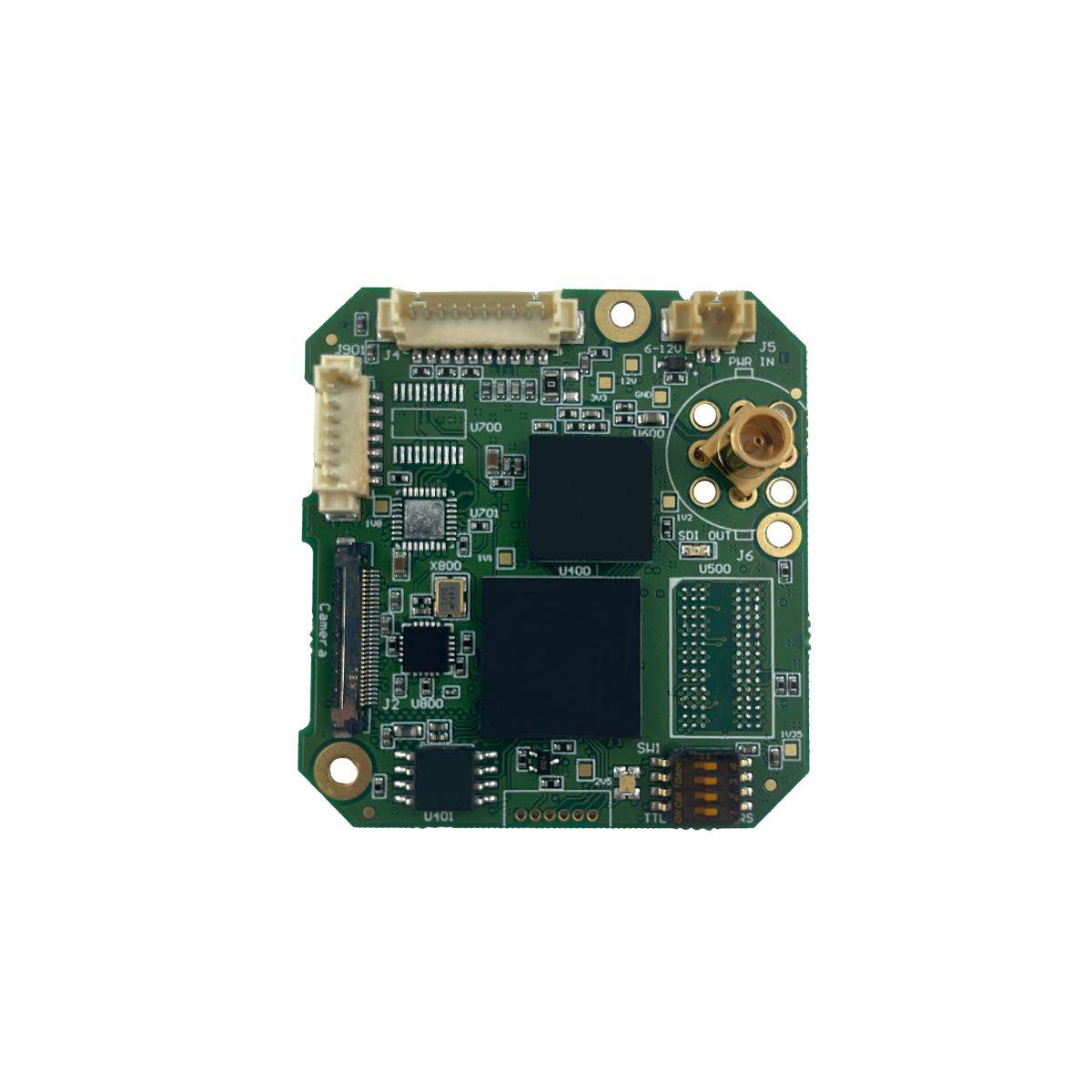

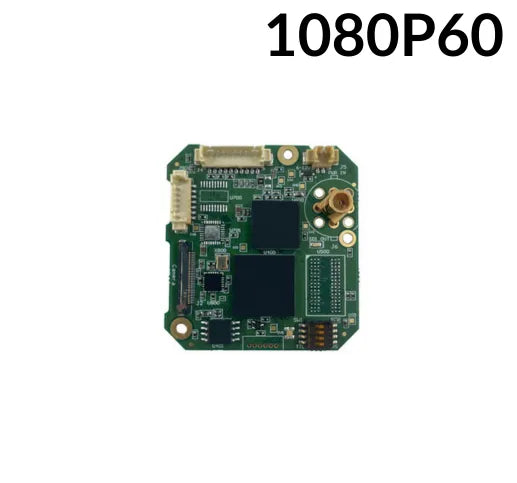

TV10 0096 3G/HD-SDI Interface Board for LVDS Zoom HD Block Cameras

The TV10 0096 3G/HD-SDI for LVDS Zoom Block Cameras is a highly efficient 3G-SDI interface board designed to convert the native LVDS video signal from zoom block cameras into the 3G/HD-SDI standard, ensuring seamless, high-quality video transmission. This advanced solution supports video resolutions up to 1080p60 with ultra-low transmission latency (<1ms), delivering real-time, uncompressed HD video over long distances via coaxial cable (up to 100m+).

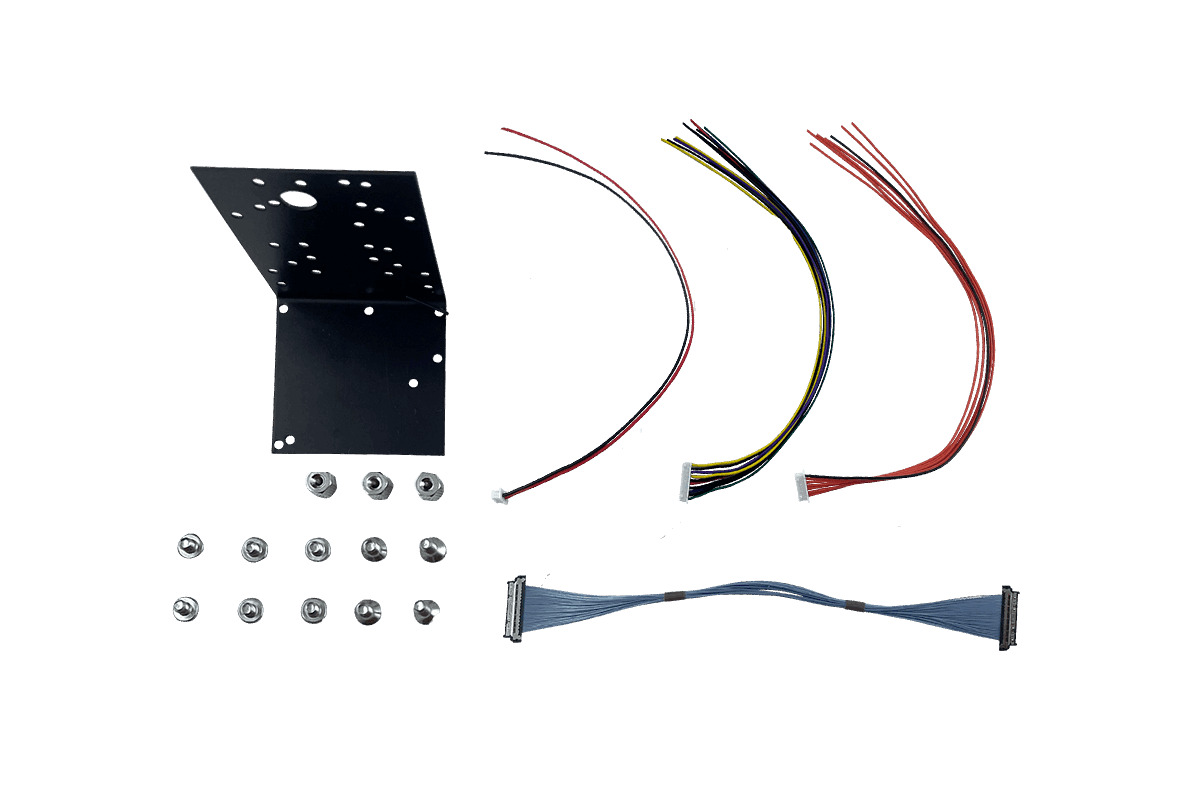

This module is fully compatible with the latest camera models, including the Sony FCB-EV series, KT&C ATC-HZ series, and Tamron MP3010, ensuring versatility and integration flexibility. Its compact design allows for easy rear-mount integration without interfering with the mechanical setup of the camera, making it an ideal solution for various industries such as medical imaging, surveillance, machine vision, and inspection.

Built with sustainability in mind, the TV10 0096 board offers a robust, long-life cycle, making it a reliable choice for demanding applications. The board-to-board connector enables customization options such as RTC integration, audio embedding to SDI, and additional video inputs, catering to specific project requirements.

Features:

• 3G/HD-SDI Output
• Video resolution up to 1080p60
• Ultra-low transmission latency (<1ms)
• UART Communication - RS232/TTL using VISCA
• Setup & Update via UART
• Video mode selection by switches



Applications:

• Medical Imaging
• Surveillance
• Machine Vision
• Inspection
