TL7070 3G/HD-SDI Fiber Optic Transmitter Interface Board plus Coax for Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV HD Block Cameras

TL7070 3G/HD-SDI Fiber Optic Transmitter Interface Board plus Coax for Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV HD Block Cameras

SKU: TL7070
Tax included.

TL7070 Spec Sheet

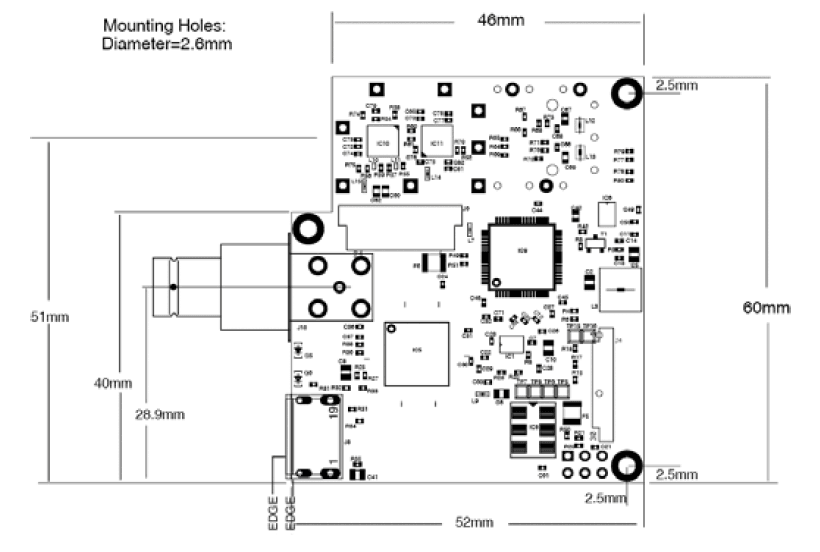

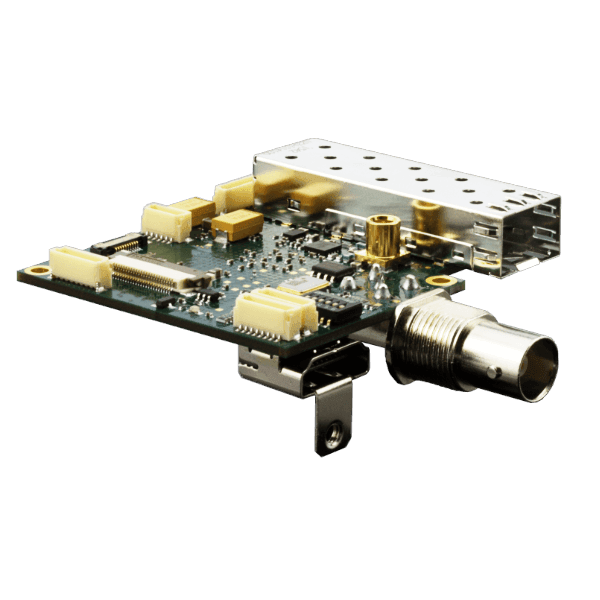

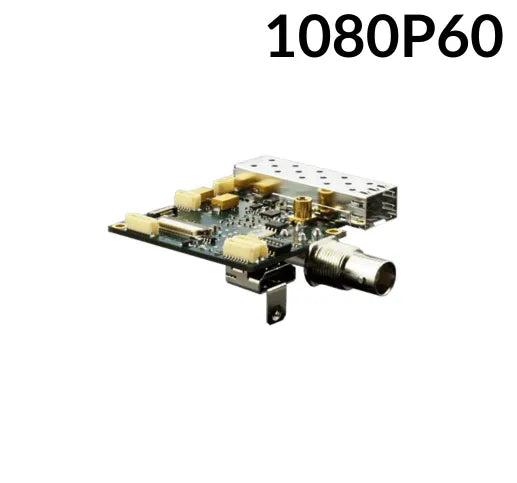

The TL7070 is a high-performance 3G/HD-SDI fiber optic transmitter designed for Sony FCB-EV9520L, FCB-EV9500L, and Tamron MP3010M-EV HD block cameras. This advanced interface board delivers long-range HD video transmission over single-mode fiber (SMF) up to 10km, ensuring superior image fidelity and low latency for professional applications.

Equipped with an optical SFP transmitter, the TL7070 supports SMPTE425M/424M/292M/274M/296M standards and features an LVDS digital video input with automatic video format detection. Multiple output options, including 3G/HD-SDI (BNC, MCX), DVI (HDMI), YPbPr, and CVBS, provide seamless integration into various AV workflows.

Dual RS232 and 3.3V TTL serial control interfaces ensure robust camera operation with full Sony Visca protocol support. The device operates on a regulated 7V to 12V DC power supply, is built for -5°C to +60°C (23°F to 140°F) environments, and maintains reliable performance in demanding applications like broadcast, surveillance, medical imaging, and industrial video systems.

Features:

  • 3G/HD-SDI Optical Transmission – 10km+ over single-mode fiber (SMF) with SFP LC module
  • LVDS Digital Video Input – Compatible with Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV
  • Multiple Video OutputsBNC, MCX, DVI (HDMI), YPbPr, CVBS
  • SMPTE Compliant – Supports SMPTE425M/424M/292M/274M/296M
  • Automatic Video Standard Detection – 1080p/720p at 60Hz, 59.94Hz, 50Hz, 30Hz, 29.97Hz, 25Hz
  • Dual Serial Control InterfacesRS232 & 3.3V TTL with Sony Visca protocol
  • Power Efficient & Compact7V-12V DC input, low power consumption
  • Industrial-Grade Build – Operates in -5°C to +60°C (23°F to 140°F), 20-80% humidity
  • Multiple Model OptionsTL7070-Pure (without converter/receiver) & OH-TX-1-LC (SFP 3G-SDI converter)

Applications:

  • Broadcast & Live Production
  • Surveillance & Security
  • Medical Imaging
  • Industrial & Robotics
  • Event Production


INPUTS
Data LVDS digital video (from camera)
Clock LVDS (from camera)
Control Rx 3.3V TTL serial control interface
Analog  YPbPr and CVBS video 1Vpp into 75ohms
OUTPUTS
Control Tx 3.3V TTL serial control interface
Reset 3.3V TTL, active low
OnePushAF 3.3V TTL, active low (FCB-SE600 only)
Power Power consumption value conditions:
Power input 12V DC
Ambient temperature +25°C/77°F
Humidity 30%
Operating Conditions Ambient temperature (min/max): -5°C/+60°C = 23°F/140°F
Humidity: 20%-80%
Storage Conditions Temperature (min/max): -20°C/+60°C = -4°F/140°F
Humidity: 20%-80%
Optical Output (SFP module Viita RM3-S1-4103K-T or equivalent):  For single mode fibre (9/125), LC connector, wavelength = 1310nm, range = 10km Optical output power -5dBm typical
