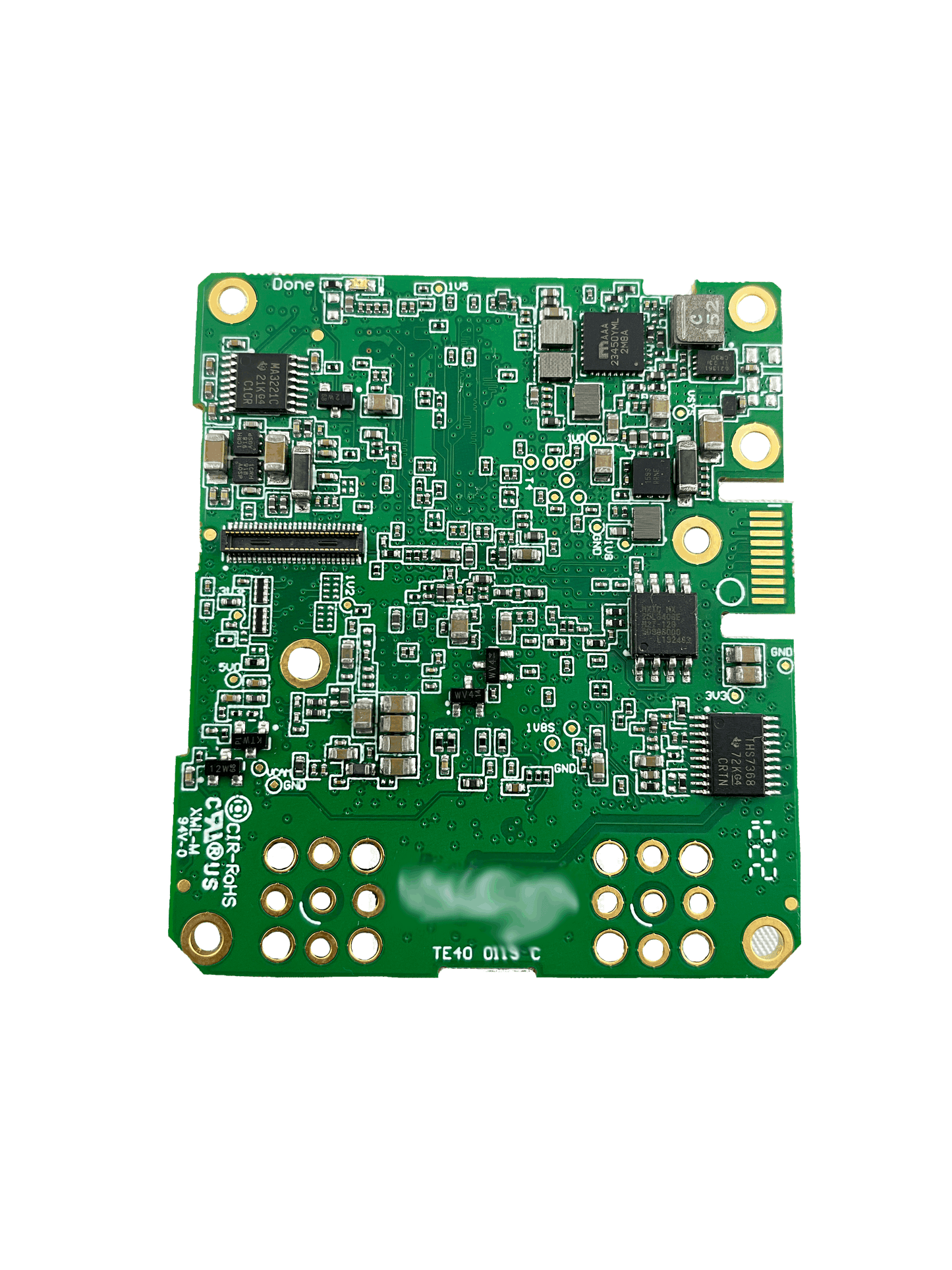

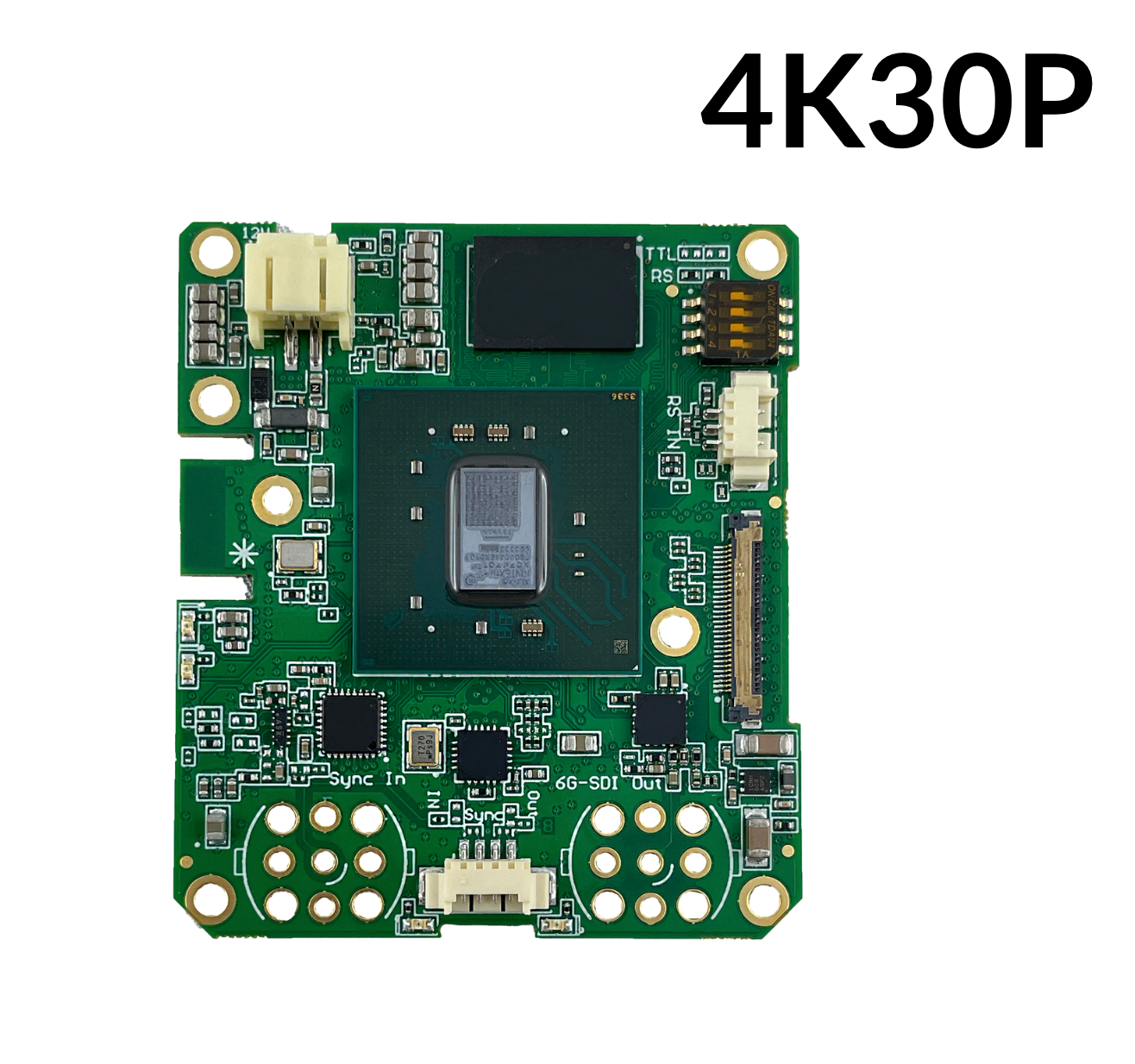

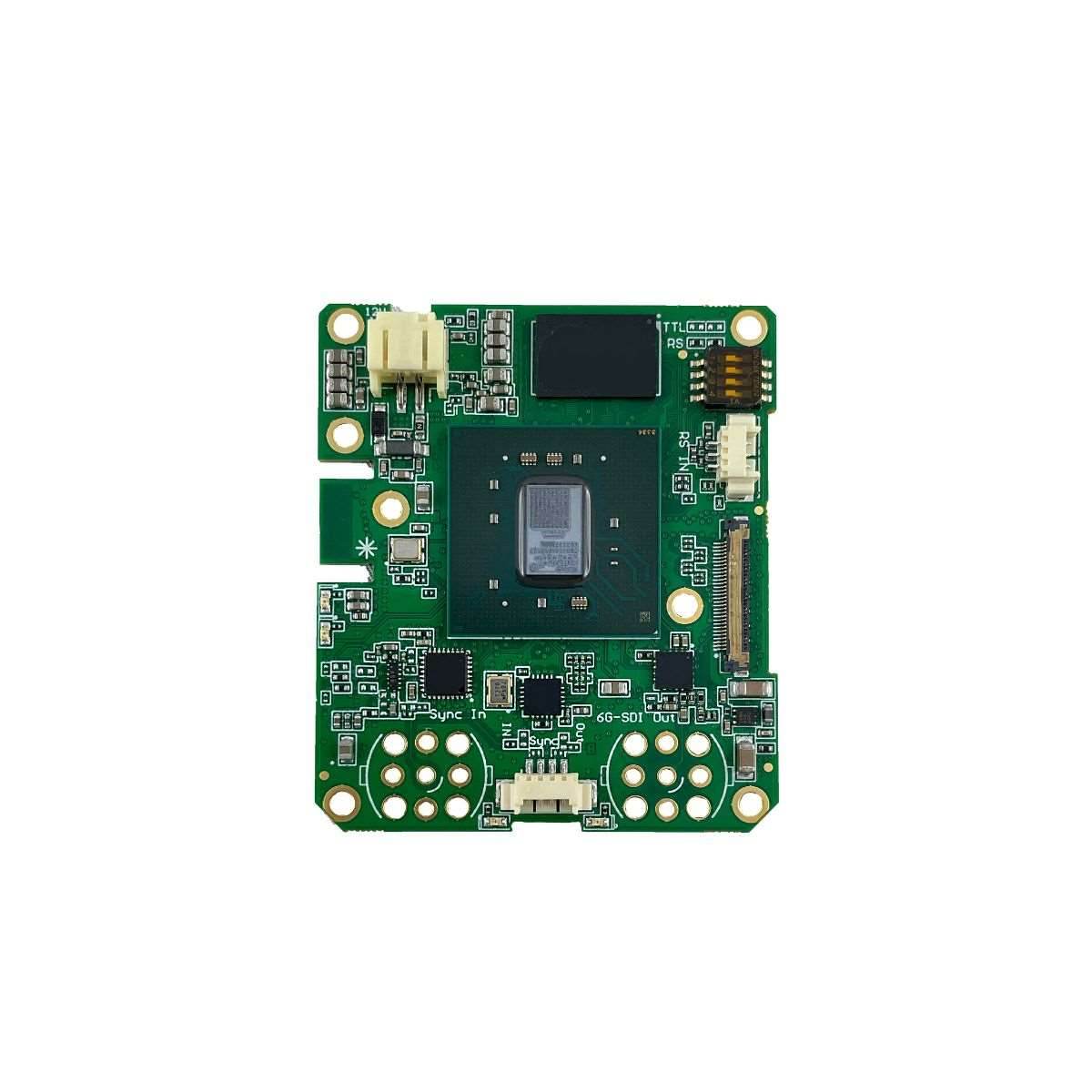

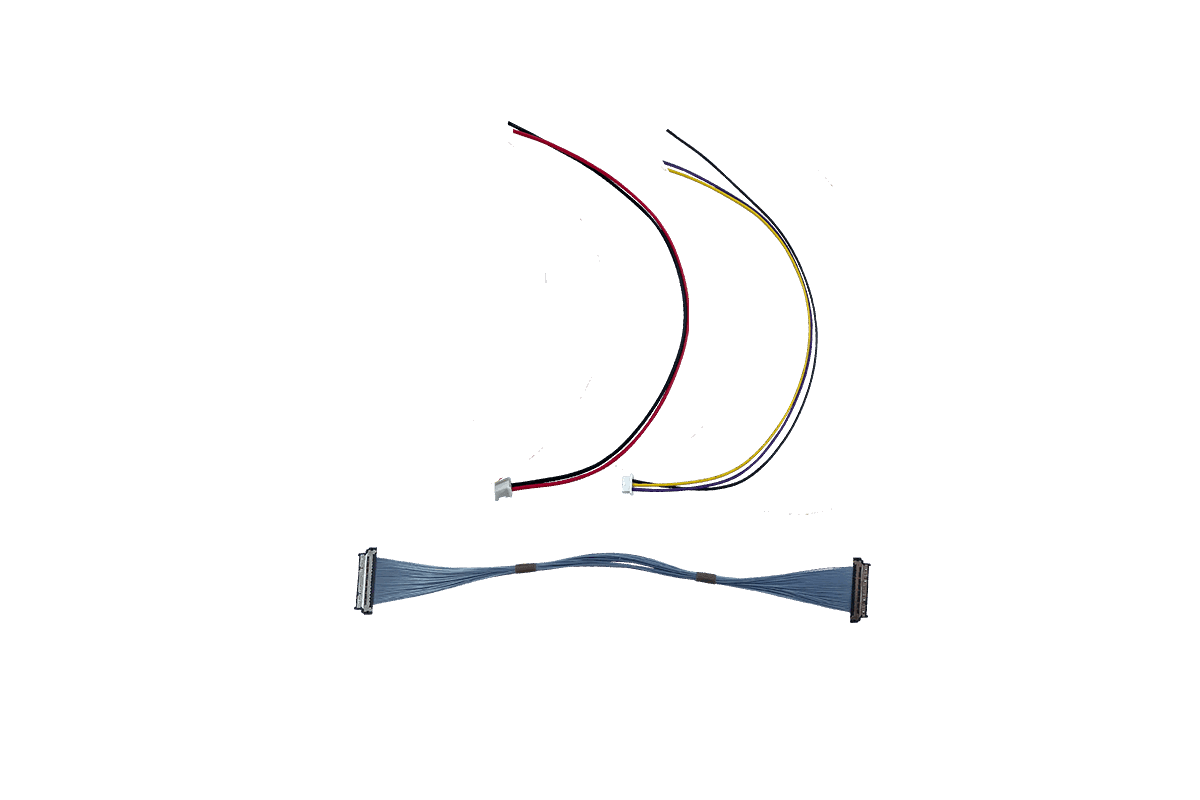

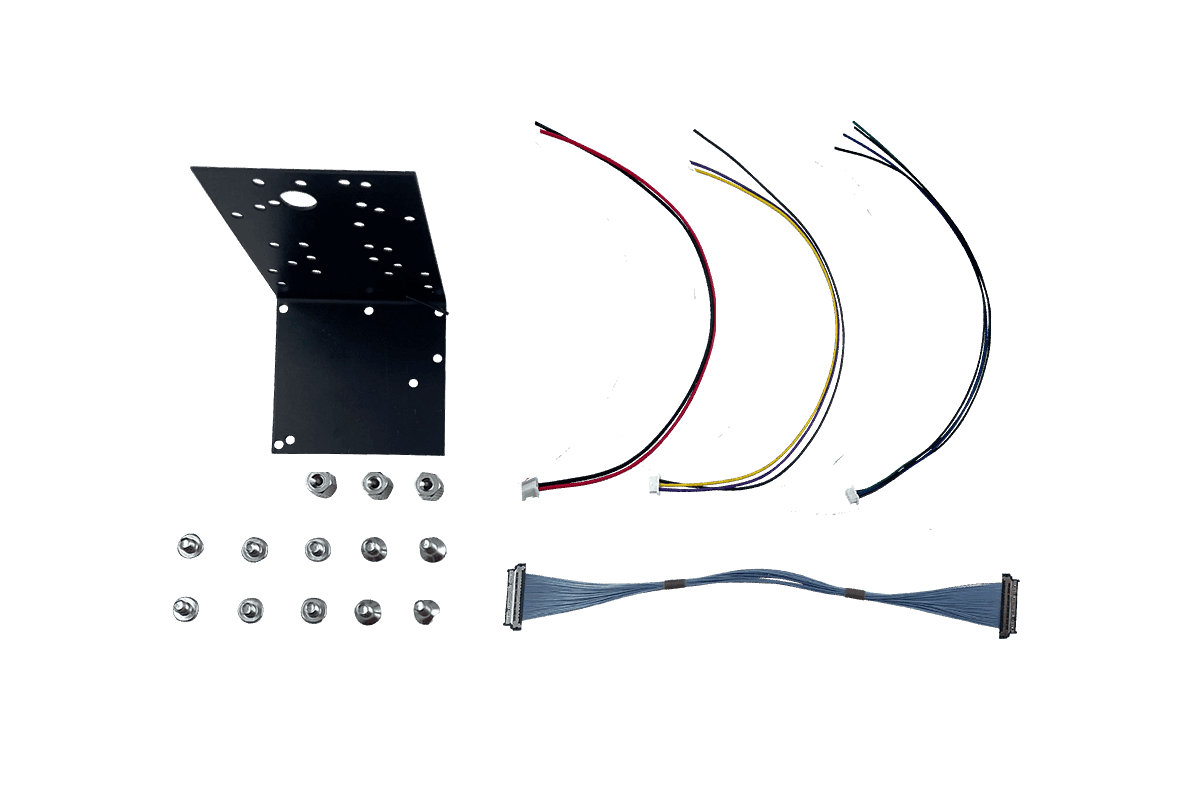

TV10 0080 4K-6GSDI-SYNC Interface Board for Sony FCB-ER9500 & FCB-ER8530 4K Block Cameras

TV10 0080 Spec Sheet

The TV10 0080 4K-6GSDI-SYNC Interface Board is a high-performance module designed for seamless integration with Sony FCB-ER9500 & FCB-ER8530 4K block cameras. Featuring 6G-SDI (SMPTE ST-2081) digital video output, this board supports 4K resolution up to 2160p25/29.97Hz, ensuring high-quality video transmission.

Built with an external sync input (Molex connector) and optional sync output, it enables precise synchronization for professional broadcasting, surveillance, and industrial applications. The DIP switch configuration allows easy selection of video formats, while RS232 or TTL-level VISCA communication ensures full control over camera settings.

Key technical features include a 6-12VDC power supply, operating at 6W (including camera power consumption), and a temperature range of 0°C to 60°C, making it suitable for demanding environments. The board is EMC FCC Part 15 compliant, with a UL 94 V0-rated PCB, ensuring safety and reliability. Compact at 50mm (H) x 57.5mm (W), it offers multiple connector options, including BNC (default) and MCX (optional), providing installation flexibility across various industries.

Features:

• 6G-SDI (SMPTE ST-2081) output – Up to 2160p25/29.97Hz
• External Sync Input (Molex) & Optional Sync Output
• RS232/TTL VISCA communication for camera control
• DIP switch video format configuration
• Power: 6-12VDC, 6W (includes camera power)
• BNC connector (default), optional MCX
• Compact size: 50mm (H) x 57.5mm (W)
• Operating temperature: 0°C to 60°C
• EMC FCC Part 15 compliant, UL 94 V0-rated PCB

Applications:

• Broadcast & Live Streaming
• Surveillance & Security Systems
• Robotics & Industrial Automation
• Video Conferencing & Remote Communication
• Medical Imaging & Telemedicine
• Sports & Event Recording
• Aerial Surveillance & Inspection
• Virtual & Augmented Reality
