AGX Orin MIPI CSI-2 Bridge Board for NVIDIA Jetson AGX Orin

AGX Orin MIPI CSI-2 Bridge Board for NVIDIA Jetson AGX Orin

SKU: AGX Orin MIPI CSI-2 Bridge Board
Tax included.

AGX Orin MIPI CSI-2 Bridge Board Spec Sheet

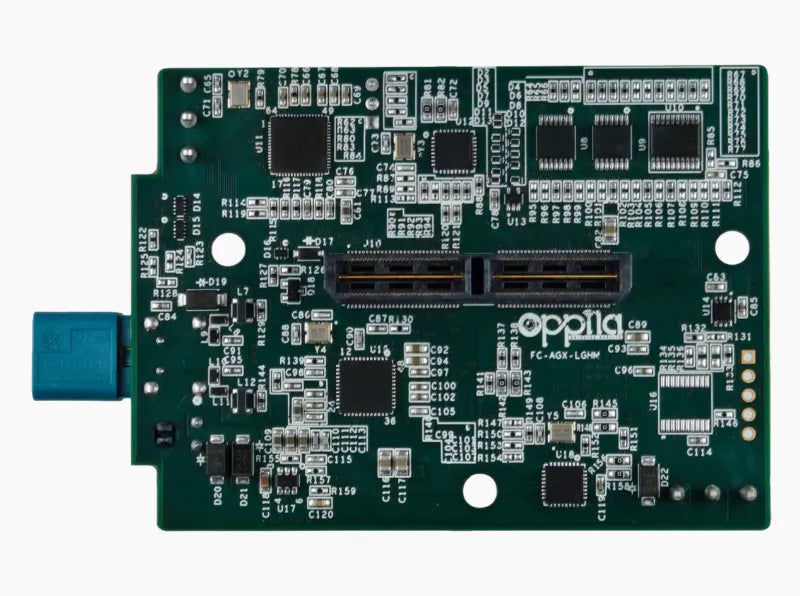

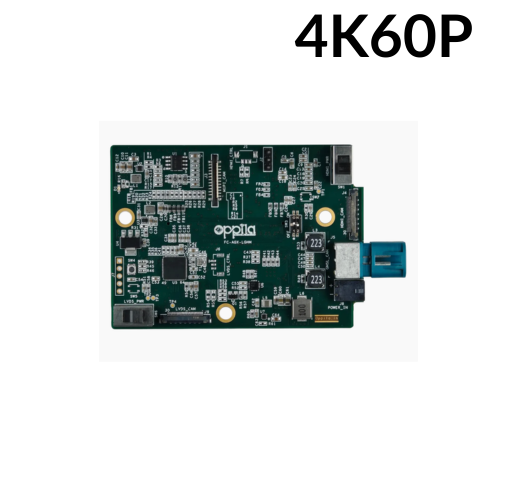

The AGX Orin MIPI CSI-2 Bridge Board is a compact multi-interface camera platform for NVIDIA Jetson AGX Orin embedded vision systems. It supports LVDS, HDMI, dual-channel GMSL3, and native MIPI CSI-2 camera inputs on a single board, providing a flexible way to integrate multiple camera types into Jetson-based AI and vision applications.

The board connects through an AGX Orin-compatible 120-pin camera expansion connector and supports all four 4-lane MIPI CSI-2 interfaces available on the platform. Compatible LVDS and HDMI block-camera video can be converted to 4-lane MIPI CSI-2, while the dual-channel GMSL3 interface supports Power over Coax and backward compatibility with GMSL2 cameras.

For compatible LVDS and HDMI cameras, an onboard I²C-to-UART bridge enables VISCA control from the Jetson host. A native 22-pin, 4-lane MIPI CSI-2 connector is also available for direct sensor integration.

Key Features

  • Designed for NVIDIA Jetson AGX Orin

  • LVDS-to-MIPI CSI-2 conversion

  • HDMI-to-MIPI CSI-2 conversion

  • Dual-channel GMSL3 camera interface

  • GMSL2 backward compatibility

  • Power over Coax support

  • Native 22-pin, 4-lane MIPI CSI-2 interface

  • Four 4-lane MIPI CSI-2 host interfaces

  • Up to 16 total CSI-2 lanes

  • Supports video formats up to 4K at 60 fps, camera dependent

  • VISCA camera control through host I²C-to-UART bridge

  • 12–24 V DC input

  • –20°C to +85°C operating temperature

  • Compact 84.87 mm × 61.95 mm board size

Applications

  • Edge AI vision

  • Robotics and autonomous systems

  • UAV and UGV camera payloads

  • Industrial machine vision

  • Intelligent transportation

  • Surveillance and defense systems

  • Medical and scientific imaging

  • Multi-camera NVIDIA Jetson projects

Technical Specifications

Specification Details
Host Platform NVIDIA Jetson AGX Orin
Host Interface Four 4-lane MIPI CSI-2 interfaces
Total CSI-2 Lanes 16
Camera Inputs LVDS, HDMI, dual-channel GMSL3, native MIPI CSI-2
GMSL Compatibility GMSL3 and compatible GMSL2
Native MIPI 22-pin, 4-lane MIPI CSI-2
Maximum Video Format Up to 4K60, camera dependent
Camera Control VISCA over UART via host I²C bridge
Input Power 12–24 V DC
Recommended Supply 12 V DC, 3 A
Dimensions 84.87 mm × 61.95 mm
Operating Temperature –20°C to +85°C
Compliance RoHS

FAQ

What does the AGX Orin MIPI CSI-2 Bridge Board do?

It connects LVDS, HDMI, GMSL3, GMSL2, and native MIPI CSI-2 cameras to NVIDIA Jetson AGX Orin systems.

How many MIPI CSI-2 lanes are supported?

The board supports four 4-lane MIPI CSI-2 interfaces, providing up to 16 CSI-2 lanes to the Jetson platform.

Does it support GMSL3 cameras?

Yes. Two compatible GMSL3 camera links are supported, with Power over Coax and GMSL2 backward compatibility.

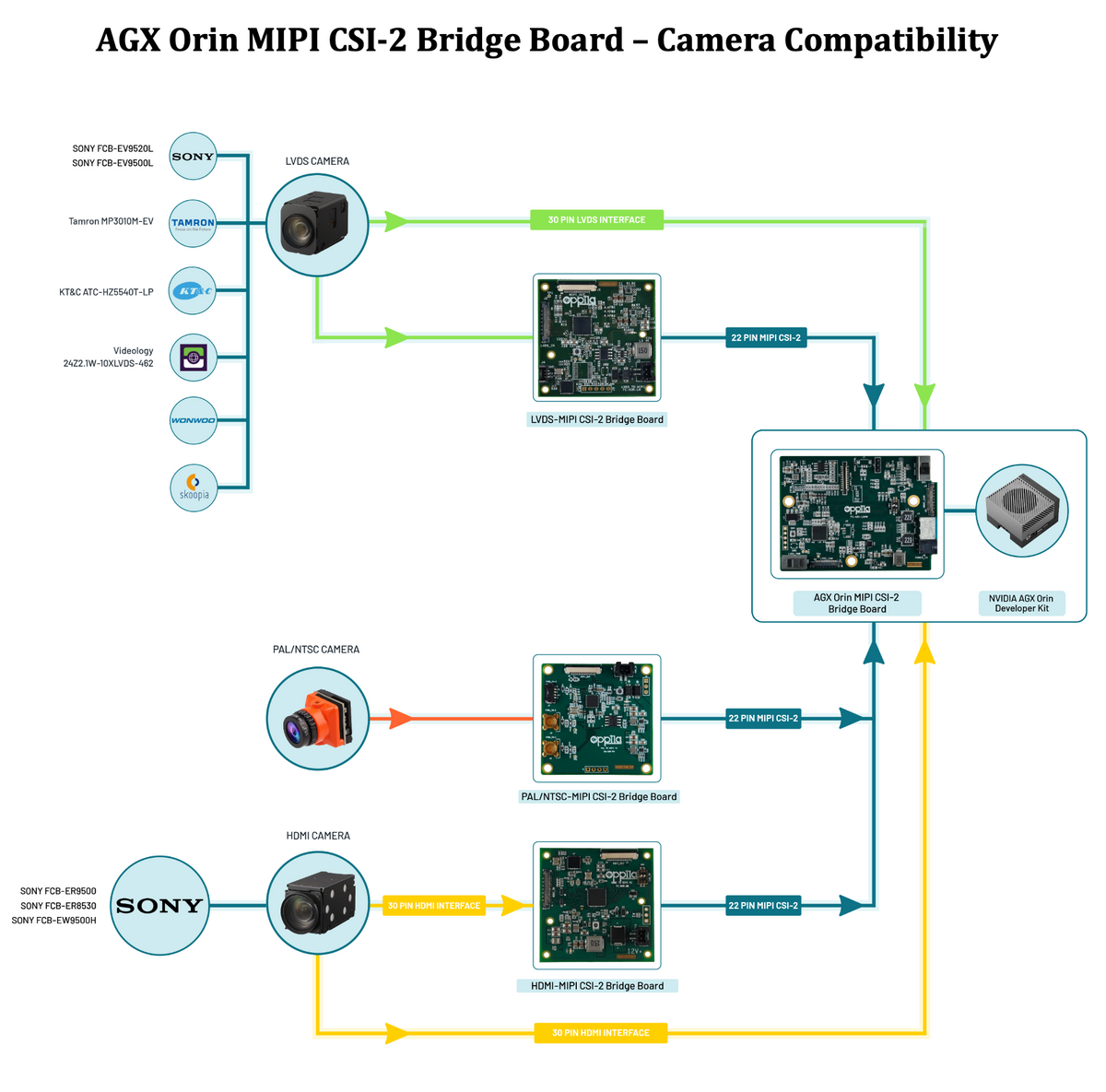

Can it be used with Sony FCB block cameras?

Select Sony LVDS and HDMI FCB cameras are supported. Exact camera compatibility should be confirmed before ordering.

What power input is required?

The board accepts 12–24 V DC. A regulated 12 V DC, 3 A supply is recommended.
