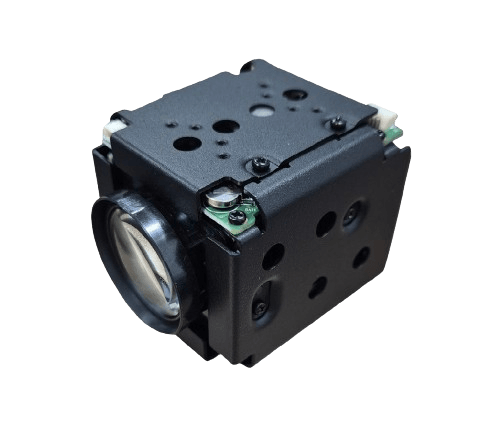

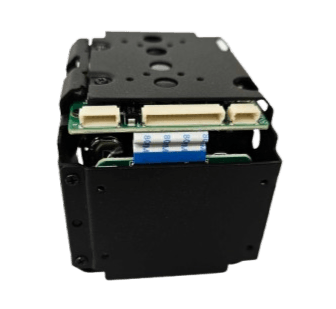

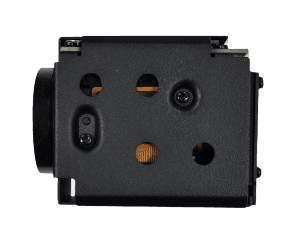

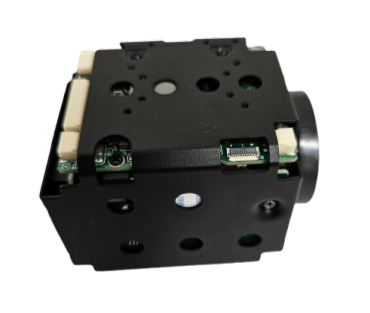

Block Cameras ML-KX10 IP 2MP Zoom Module Camera With 10x Optical Zoom, 60fps, H.264/H.265, Rolling Shutter
Block Cameras ML-KX10 IP 2MP Zoom Module Camera With 10x Optical Zoom, 60fps, H.264/H.265, Rolling Shutter
Couldn't load pickup availability
ML-KX10 Spec Sheet
The ML-KX10 2MP IP Zoom Module Camera delivers high-performance imaging with a 1/2.8” Sony CMOS sensor, 1920x1080 resolution, and rolling shutter technology. Capturing video at 60fps, this module ensures smooth, low-latency streaming with support for H.264, H.265, and JPEG encoding.
Designed for professional surveillance, the 10x optical zoom and 10x digital zoom provide precise image detail, with 256 zoom/focus presets for seamless PTZ operation. The camera’s minimum illumination of 0.03 Lux in color mode (F1.7, AGC ON) and 0 Lux in black & white with IR support guarantees clear visibility in low-light conditions.
Built for integration, the ML-KX10 is ONVIF-compliant and supports HTTP RESTful API for flexible compatibility with NVRs and security platforms. Quadruple streaming enables optimized bandwidth usage, while G.711 audio compression ensures efficient sound transmission. Advanced image control includes Auto/Manual White Balance, WDR, BLC, HLC, 2D & 3D DNR, and Defog modes for adaptable surveillance solutions.
With a 47x47x64.4mm compact design and weighing just 155g, the module is ideal for embedded systems, security monitoring, and remote applications. Power-efficient at just 3.6W, it operates between -10℃ and +50℃, ensuring reliability in demanding environments.
Features:
- 2MP 1/2.8” Sony CMOS Sensor (Rolling Shutter)
- 1920x1080 Resolution, 60/50fps Streaming
- 10x Optical Zoom, 10x Digital Zoom
- H.264/H.265/JPEG Quadruple Streaming
- 0.03 Lux Color, 0 Lux IR Sensitivity
- Auto Focus, 256 Zoom/Focus Presets
- ONVIF & HTTP RESTful API Integration
- WDR, BLC, HLC, 2D/3D DNR, Defog
- Privacy Masking (Max 8 Zones), Motion Detection
- Micro SD Storage, 12V Power Supply, Low Power Consumption (Max 3.6W)
- Compact 47x47x64.4mm, 155g Lightweight Design
Applications:
- Security & Surveillance Systems
- Remote Monitoring & Industrial Automation
- Traffic & Transport Surveillance
- UAV & Robotics Vision Solutions
| Image Sensor | 1/2.8” Sony CMOS Image sensor (Rolling shutter) |
| Sensor Total Pixels | 2,014(H) x 1,196(V) = 2.4M Pixels |
| Effective Pixels | 1,965(H) x 1,113(V) = 2.18M Pixels |
| Resolution | 1920 x 1080 |
| Frame Rate | 60/50 fps, 30/25 fps |
| Min. Illumination | Color: 0.03 Lux @ (F1.7, AGC ON), BW: 0Lux (IR LED) |
| Zoom Ratio | 10x Optical, 10x Digital |
| Focal Length | f = 4.8mm ~ 40.8mm |
| Aperture Ratio | F1.7(wide) ~ F3.1(tele) |
| Angle of View | H: 62°(W) ~ 7.6°(T) / V: 36.4°(W) ~ 4.4°(T) / D: 69.2°(W) ~ 8.6°(T) |
| Min. Distance | 1m (Wide), 2m (Tele) |
| Iris | DC Auto Iris (TBA) |
| IR Cut Filter | On/Off |
| Focus Control Mode | -Auto Focus (Zoom Trigger, Timer Trigger, One Push) -Manual Mode (Slide Control, One Push) |
| Presets | 256 Zoom/Focus Presets (TBA) |
| Day & Night | Auto, Day, Night, Ext-in |
| D&N Levels | 10 Levels (without Ext-in) |
| Electronic Shutter Speed | 1/25(30)/1/50(60) ~ 1/5,000 |
| White Balance Modes | Auto, Manual (3 Steps or More), Indoor Mode |
| Exposure Modes | Auto Mode, Manual Mode |
| Gain Control | Auto Mode, Manual Mode |
| WDR | On/Off |
| BLC | On/Off |
| HLC | On/Off |
| DNR | 2D&3D |
| Defog | Off/Low/Middle/High |
| DIS | On/Off (TBA) |
| Mirror | Off, Vertical Flip, Horizontal Flip, H+V Flip (180degree rotation) |
| Privacy Mask | Max 8 Zones |
| Motion Detection | 32 x 18 cell / AI motion detection(TBA) |
| Output Format | H.264 / H.265 / JPEG |
| Bitrate | 512~15000 kbps |
| Streaming | Quadruple ( x4 ) IP Streaming Main Stream : up to 1920 x 1080 Second Stream : up to 1280 x 720 Third Stream : up to 640 x 480(TBA) JPEG : 1920 x 1080 |
| OSD | Title, Date, Resolution |
| Main UI | Web-based GUI |
| System Mode | NTSC / PAL |
| Video | TBD |
| JPEG | TBD |
| Rule Engine/Tracker | - |
| Video Analytics | - |
| Compression | G.711 ulaw |
| Sampling Rate | 8khz |
| Input & Output | 1 line In / 1 Line Out |
| Interface | 10BASE-T/100BASE-TX |
| Protocol | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, NTP, SMTP, FTP, UPnP(TBA), HTTP, HTTPS, SSL/TLS |
| Security | Password protection, IP address filtering, Https encryption, brute force delay protection |
| Control Protocol | HTTP RESTful API, Onvif |
| External Devices | 1x Alarm input 1x Alarm output 1x D&N input(Ext-in) 1x PWM output(lighting control) 1x UART |
| External Storage | Micro SD |
| Power Supply | 12V |
| Power Consumption | Max. 3.6W |
| Storage Temperature | -20℃ ~ +60℃ (Humidity < 90%RH, Non-condensing) |
| Operating Temperature | -10℃ ~ +50℃ (Humidity < 90%RH, Non-condensing) |
| Dimension | 47 x 47 x 64.4 (WxHxD) |
| Weight | 155g |
| Certifications | NA |
