Block Cameras SV-4K34IP 4K Miniature H.265, 3.4x Zoom, Sony Exmor CMOS Sensor Network Camera

SV-4K34IP Spec Sheet
SV-4K34IP Tech Manual

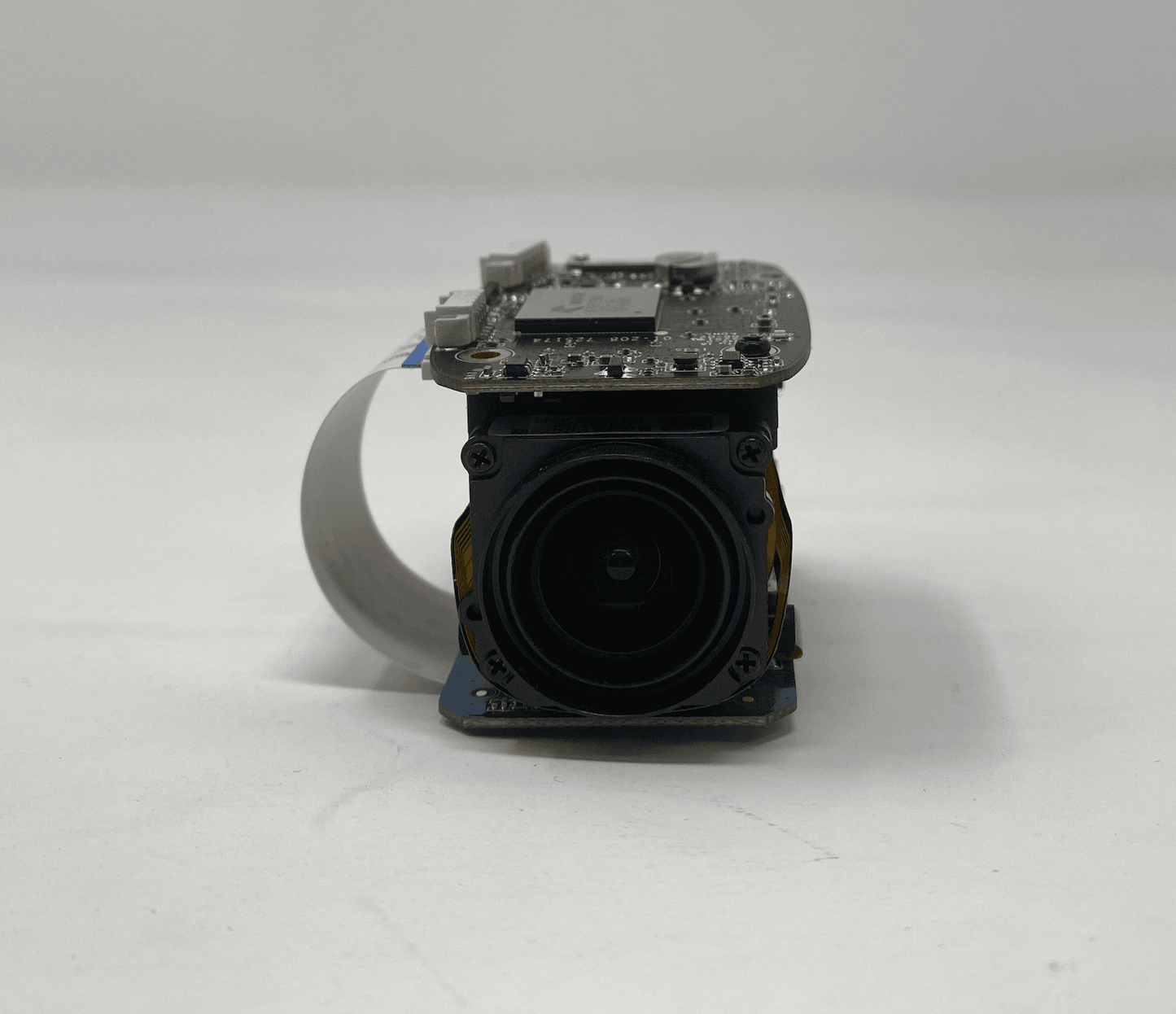

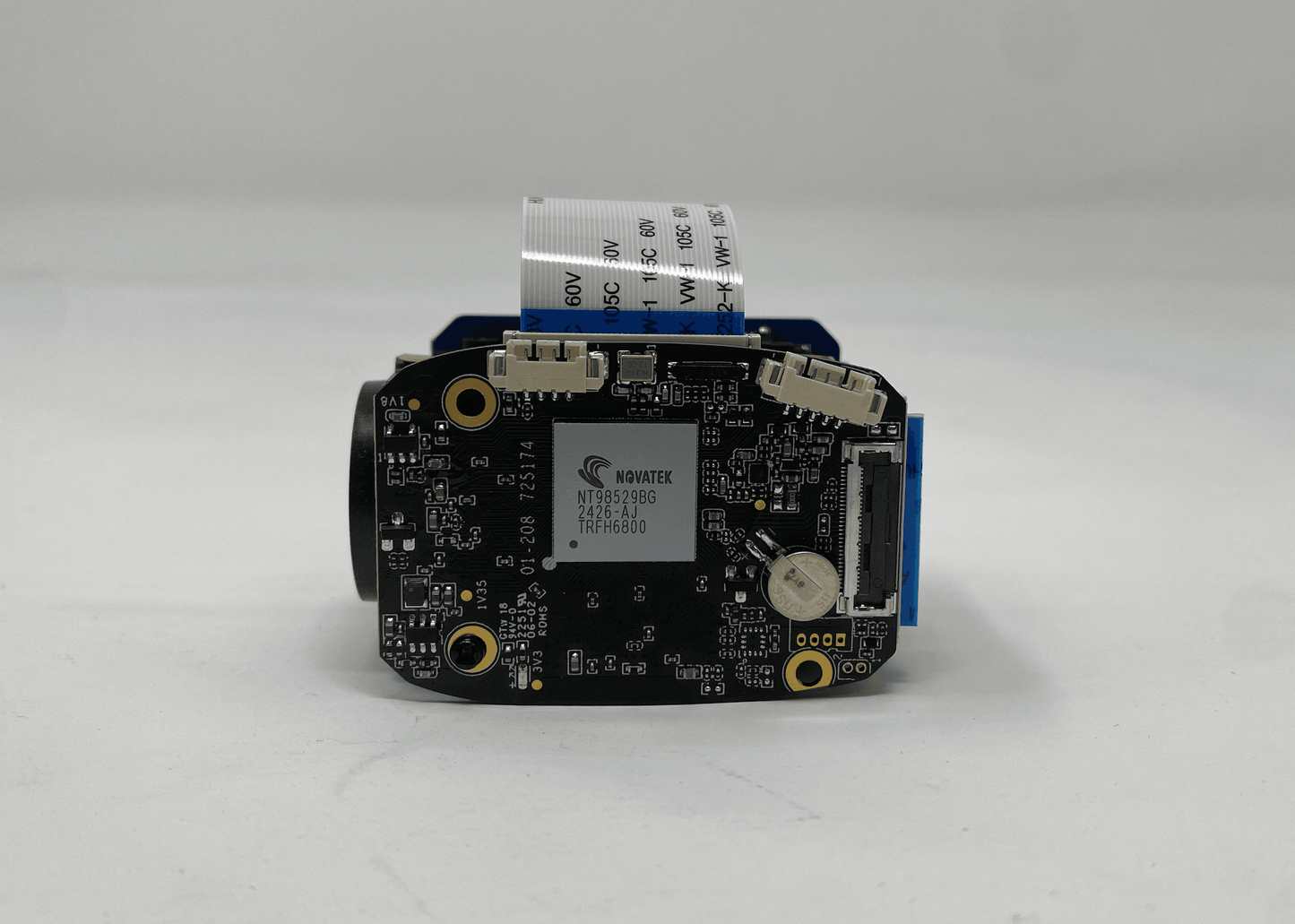

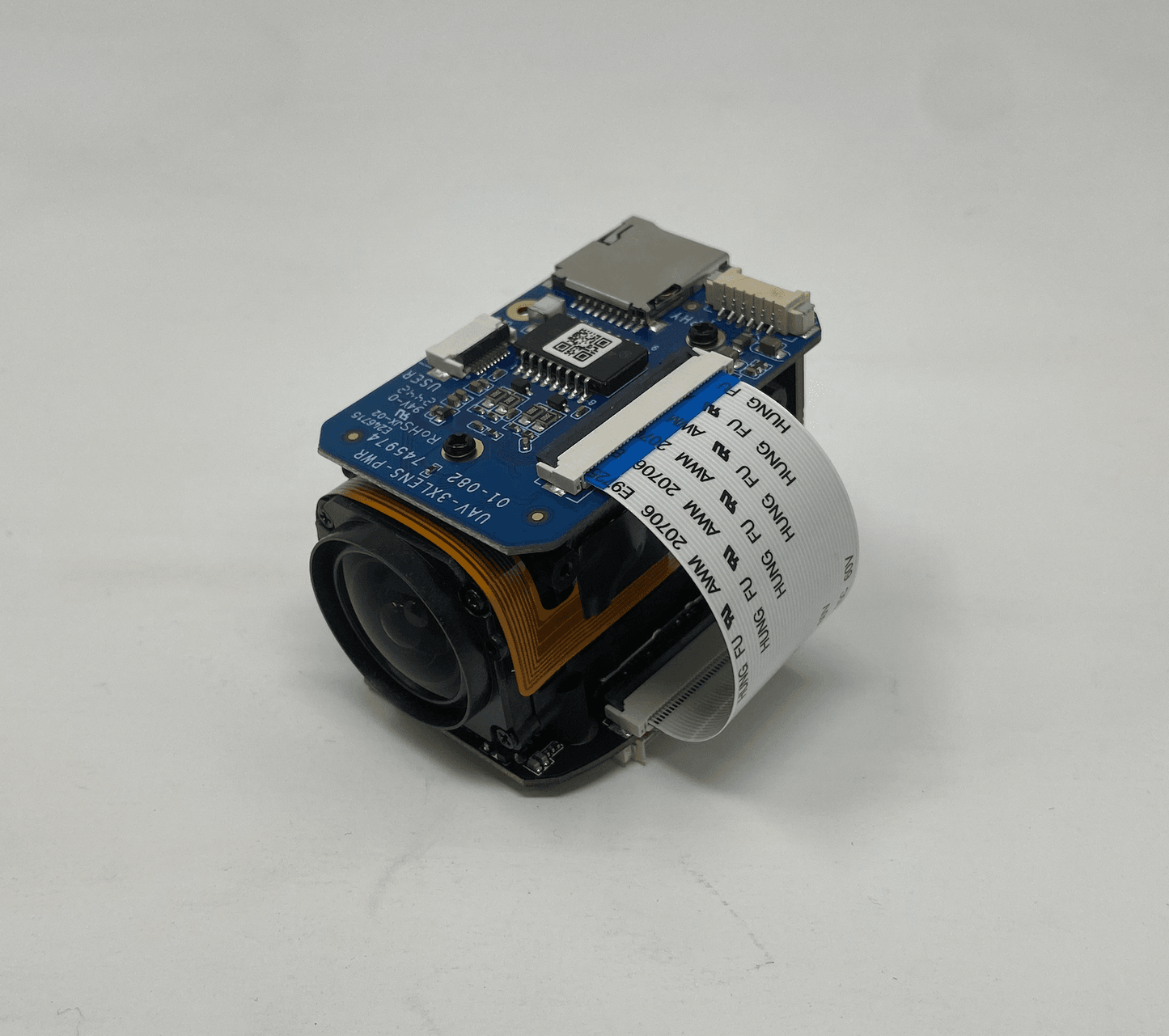

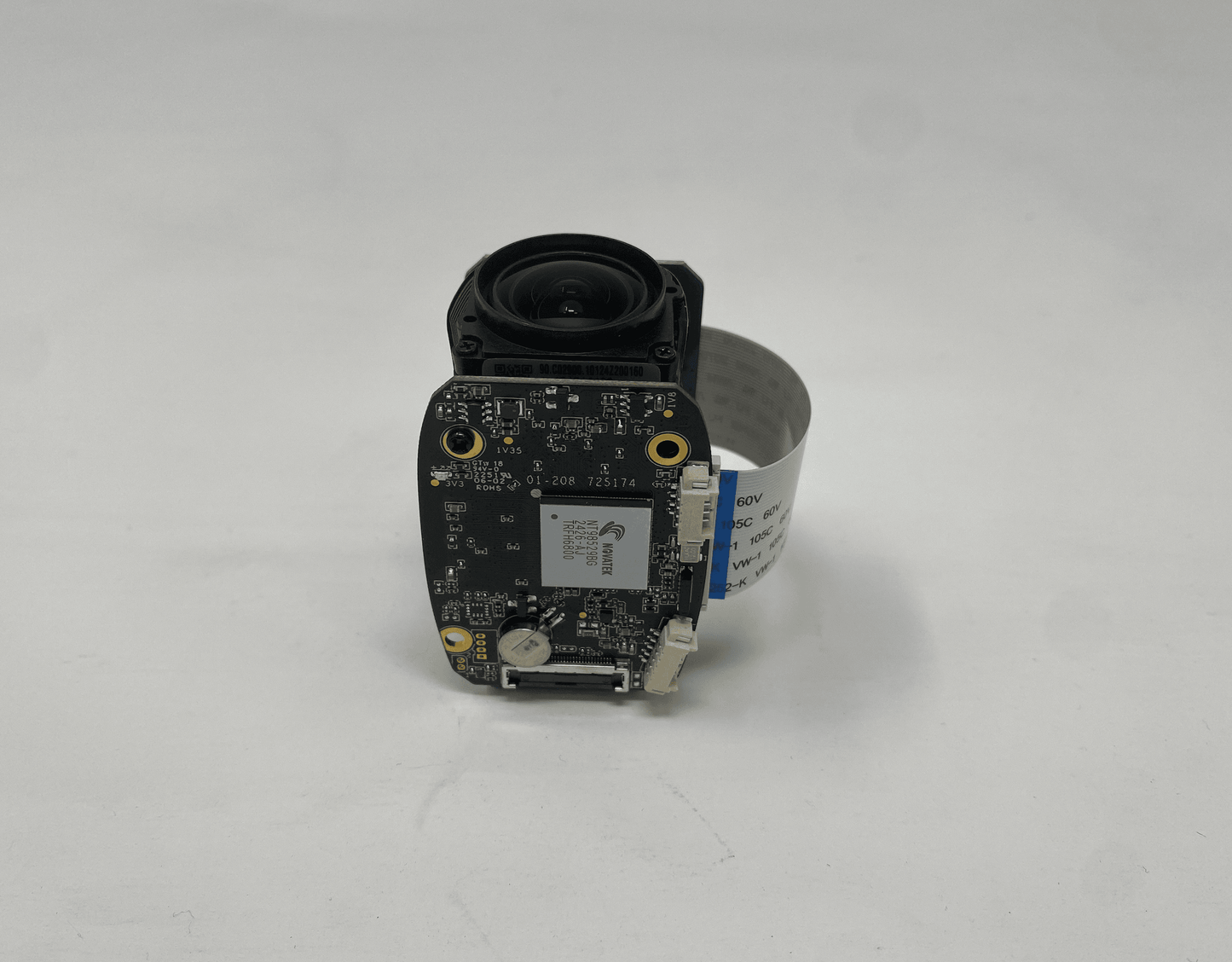

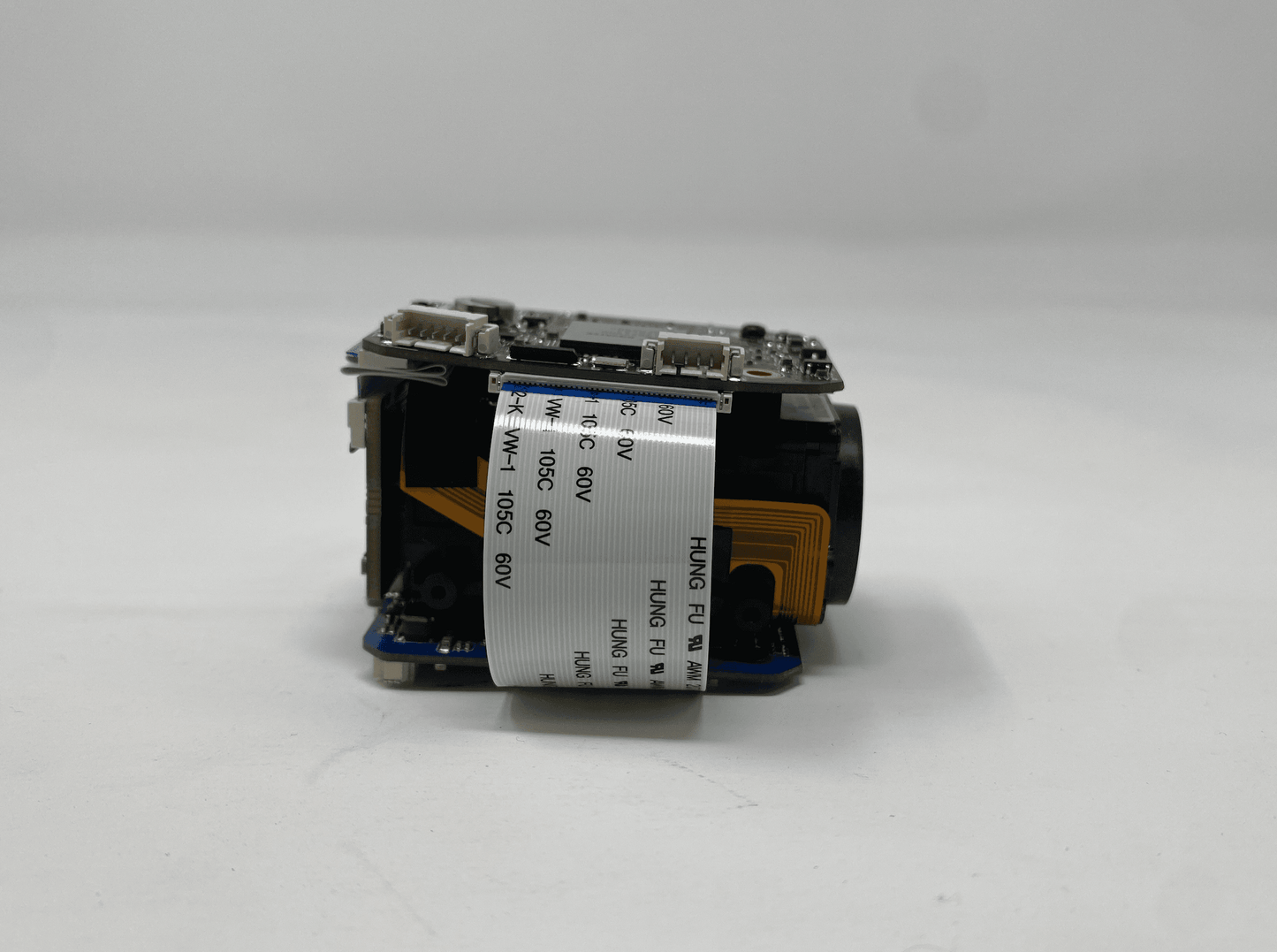

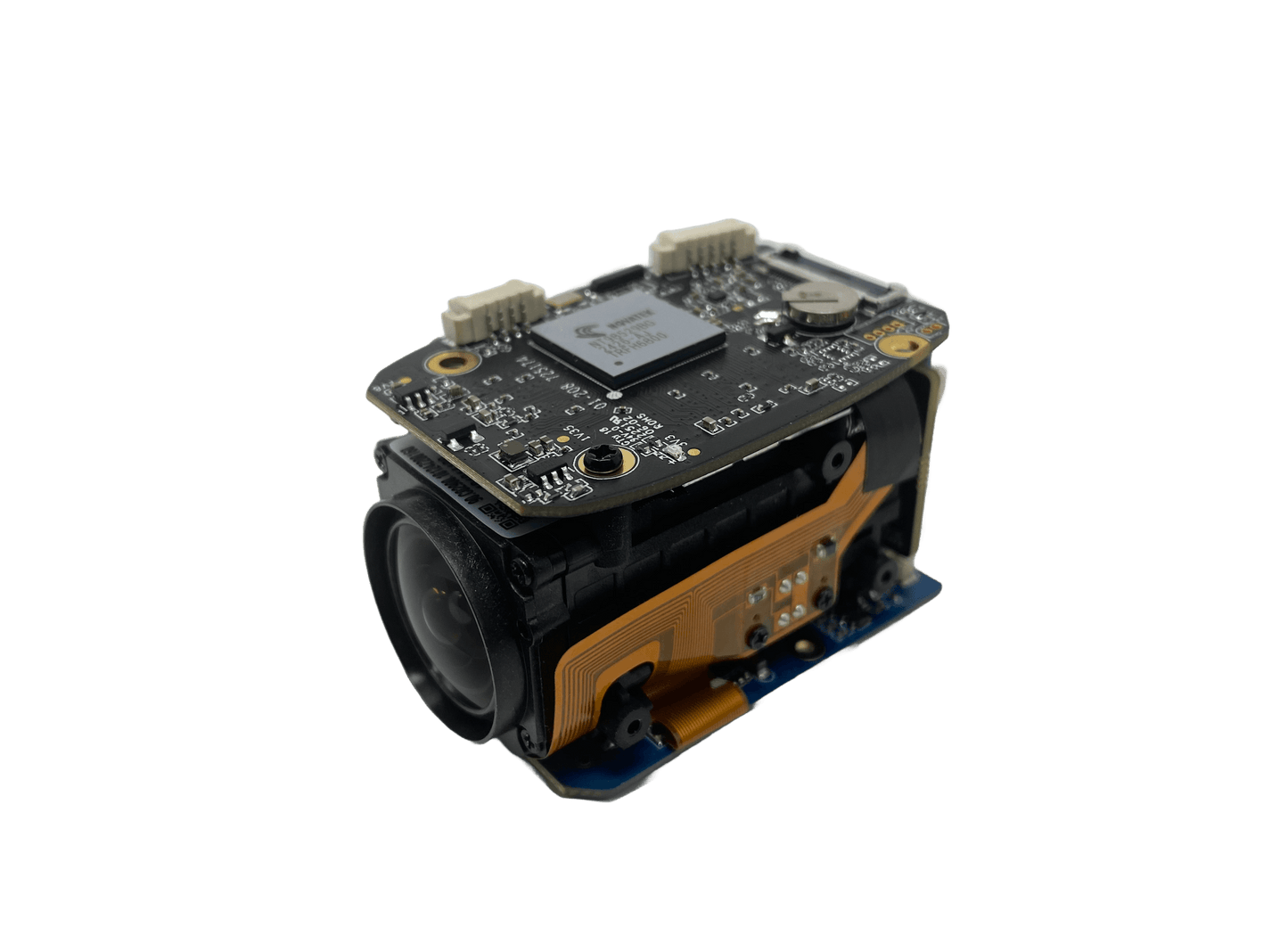

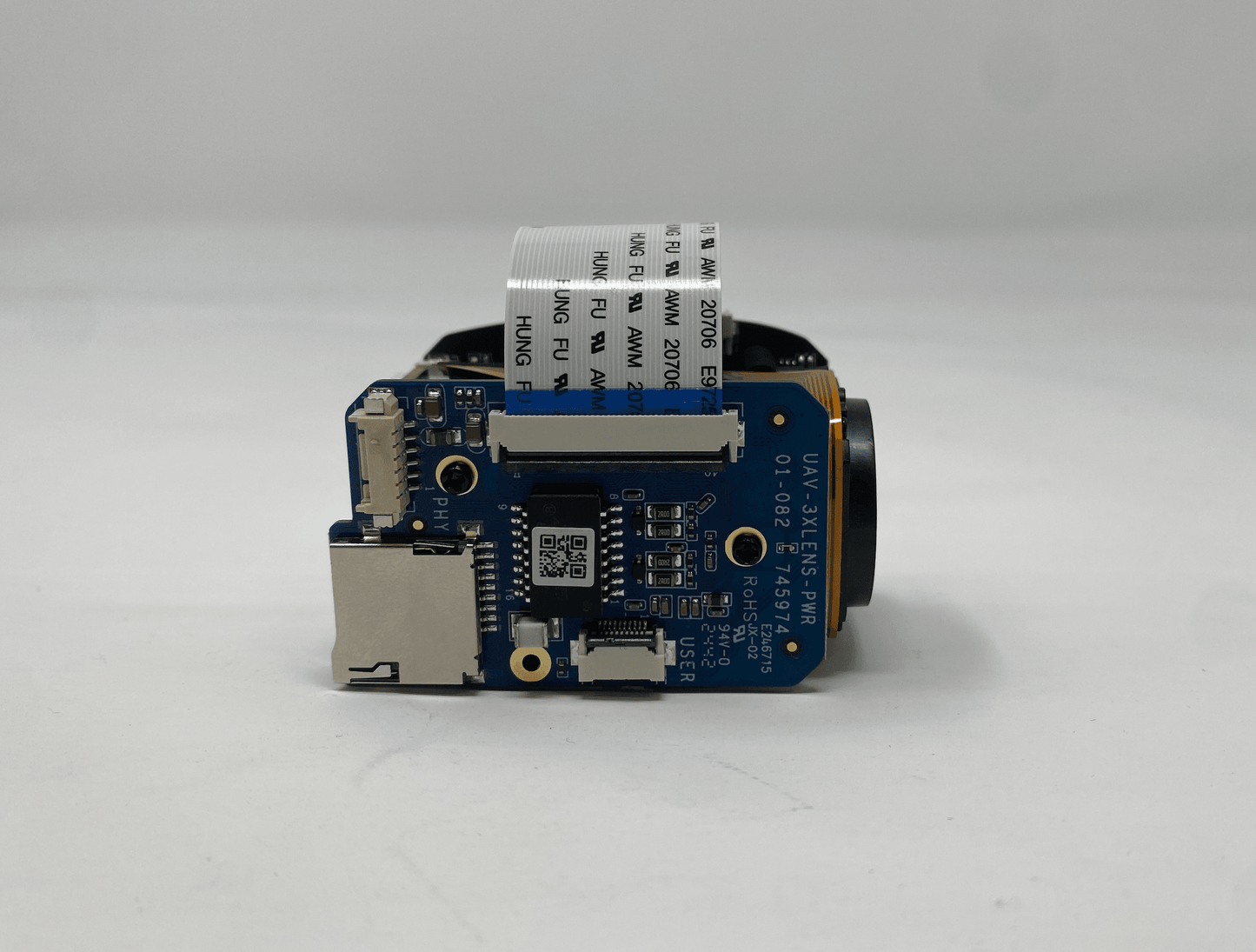

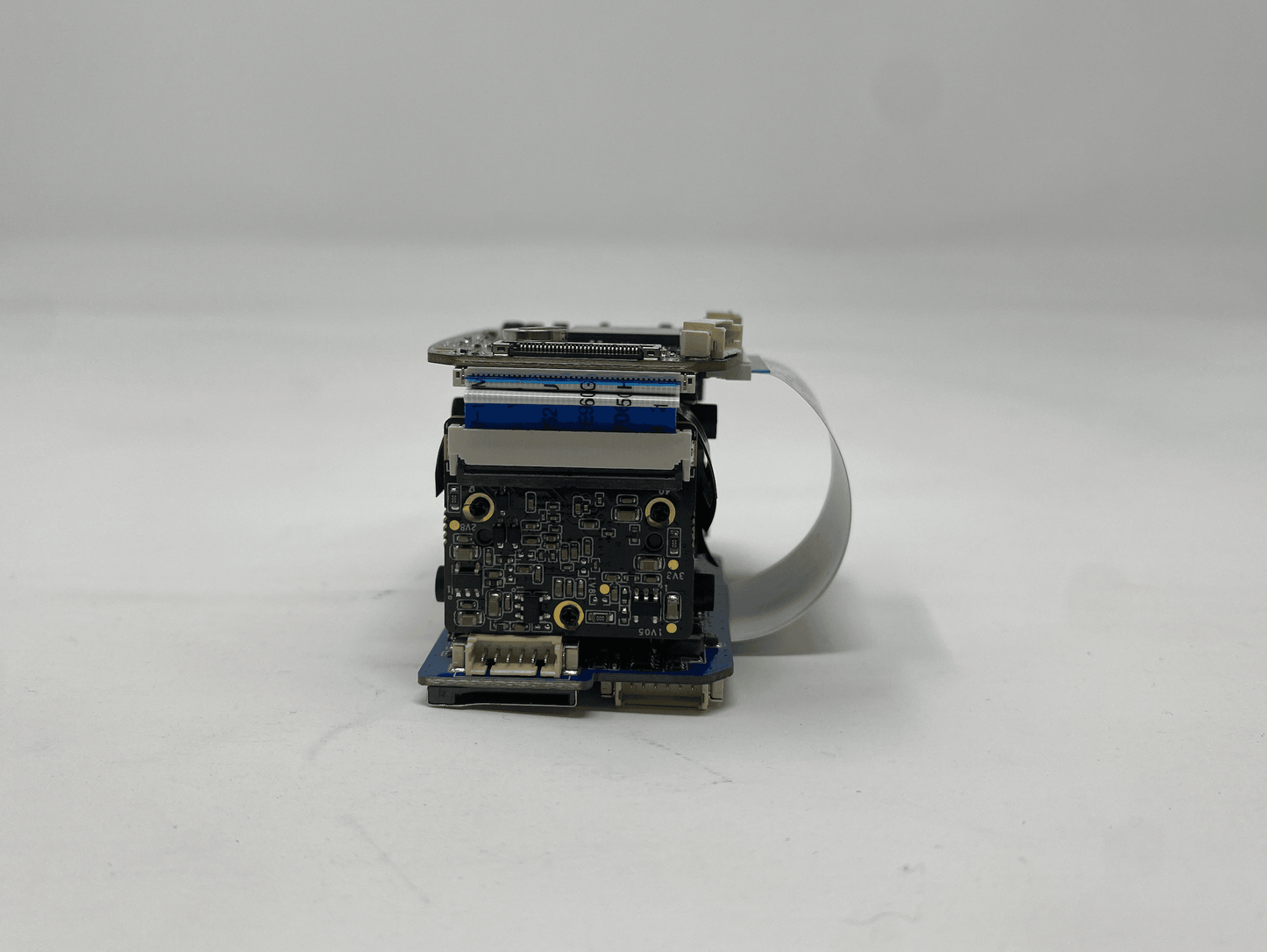

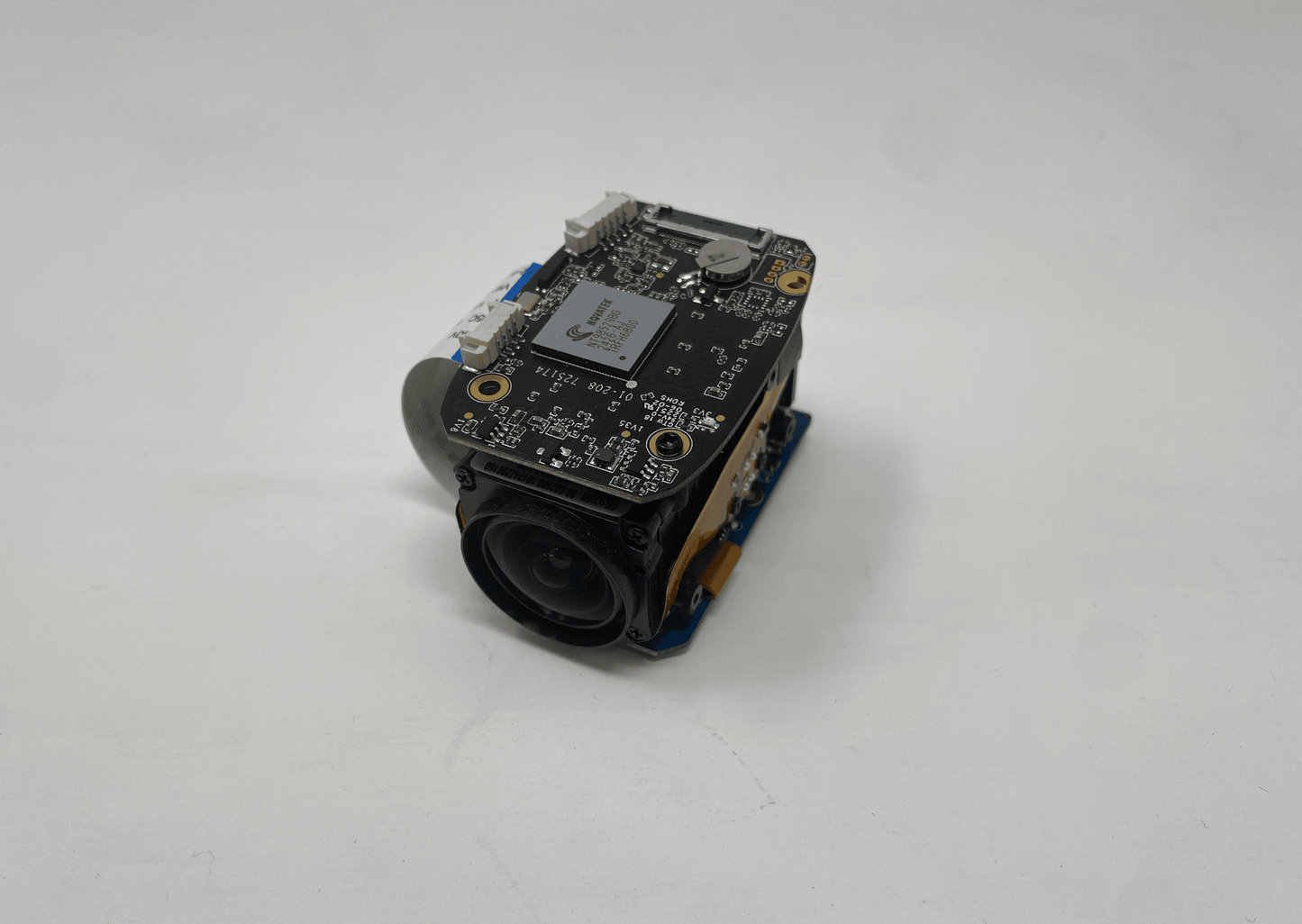

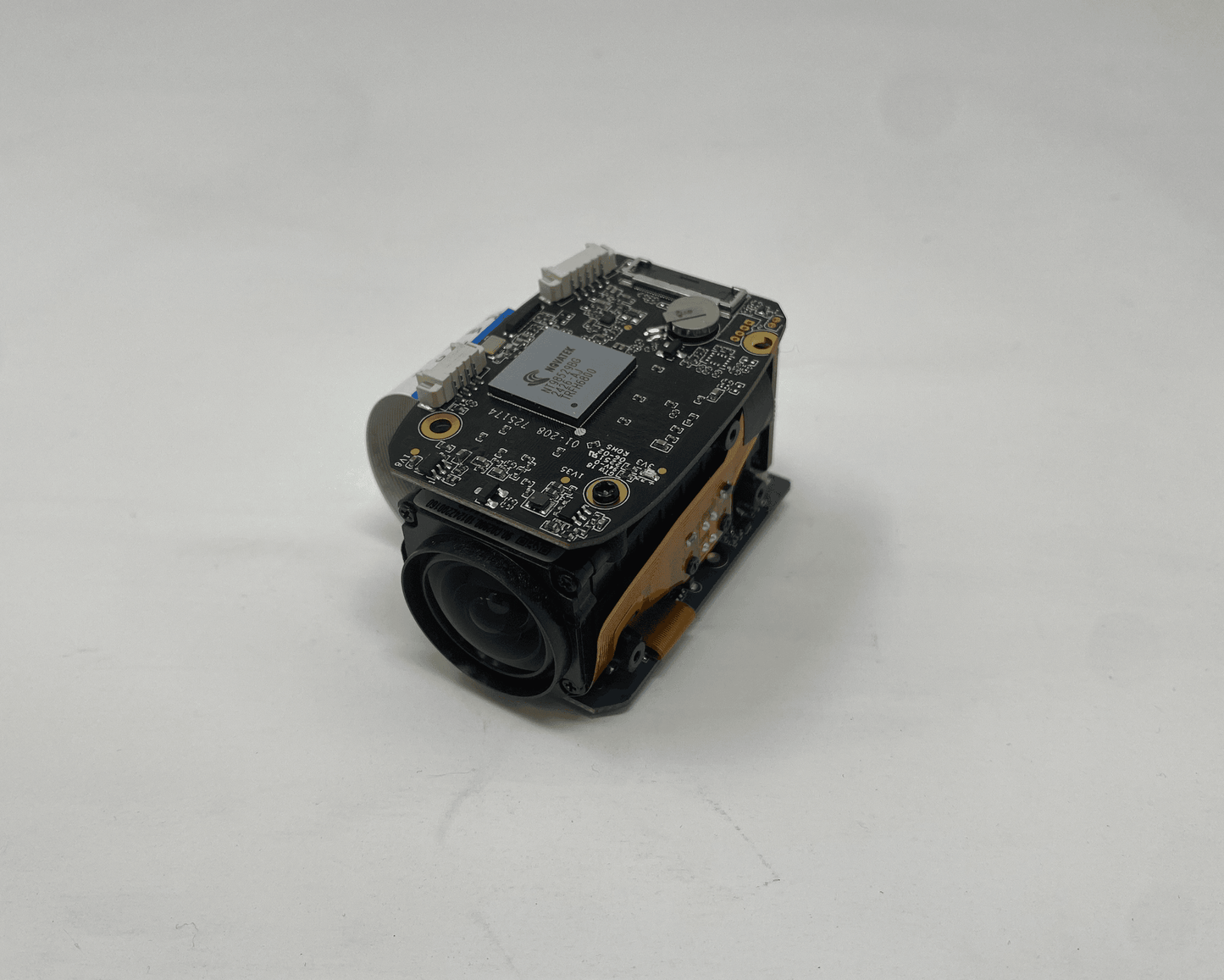

The Block Cameras SV-4K34IP is a 12MP Ultra HD miniature block camera featuring a 1/2.3” Sony Exmor CMOS sensor, delivering 4000×3000 resolution at 10fps for high-precision imaging. With a 3.4× optical zoom (3.8mm-13mm) and fast autofocus, it provides a flexible 82.2°–25.8° field of view. The camera supports H.265/H.264/MJPEG compression with triple-streaming, optimizing bandwidth and storage while maintaining ultra-clear image quality.

Engineered for high-performance surveillance, it includes WDR, BLC, HLC, and 2D/3D noise reduction to enhance visibility in extreme lighting. Electronic defogging ensures clarity in foggy conditions, while 16× digital zoom offers detailed close-ups. Smart tracking, IVS analytics (tripwire, intrusion, loitering detection), motion detection, and tamper alerts bolster security applications.

Fully ONVIF-compliant, the SV-4K34IP integrates with major VMS platforms and network devices. It includes PTZ control, alarm I/O, audio support, and supports TF card storage up to 256GB. Designed for durability, it operates in extreme temperatures (-30°C to +60°C) with low power consumption (3.5W static, 4.5W max).

Features:

• 12MP Ultra HD resolution (4000×3000 @10fps) for high-detail imaging
• 1/2.3” Sony Exmor CMOS sensor for superior low-light performance
• 3.4× optical zoom (3.8mm-13mm), fast autofocus, 82.2°–25.8° FOV
• H.265/H.264/MJPEG compression, triple-streaming for bandwidth optimization
• WDR, BLC, HLC, 2D/3D noise reduction, electronic defog for enhanced clarity
• Smart tracking, IVS analytics, motion detection, tamper alerts
• ONVIF compliance ensures seamless VMS and network device integration
• Supports PTZ control, alarm I/O, audio, and TF card storage (256GB max)
• Operates from -30°C to +60°C with low power consumption (3.5W–4.5W)

Applications:

• Security & Surveillance – Ultra HD monitoring for high-risk areas
• Traffic & Transport – Smart tracking for roads, stations, airports
• Industrial & Infrastructure – Reliable performance in harsh conditions
• Retail & Commercial – Intelligent analytics for enhanced security
• Law Enforcement & Government – High-detail imaging for public safety
