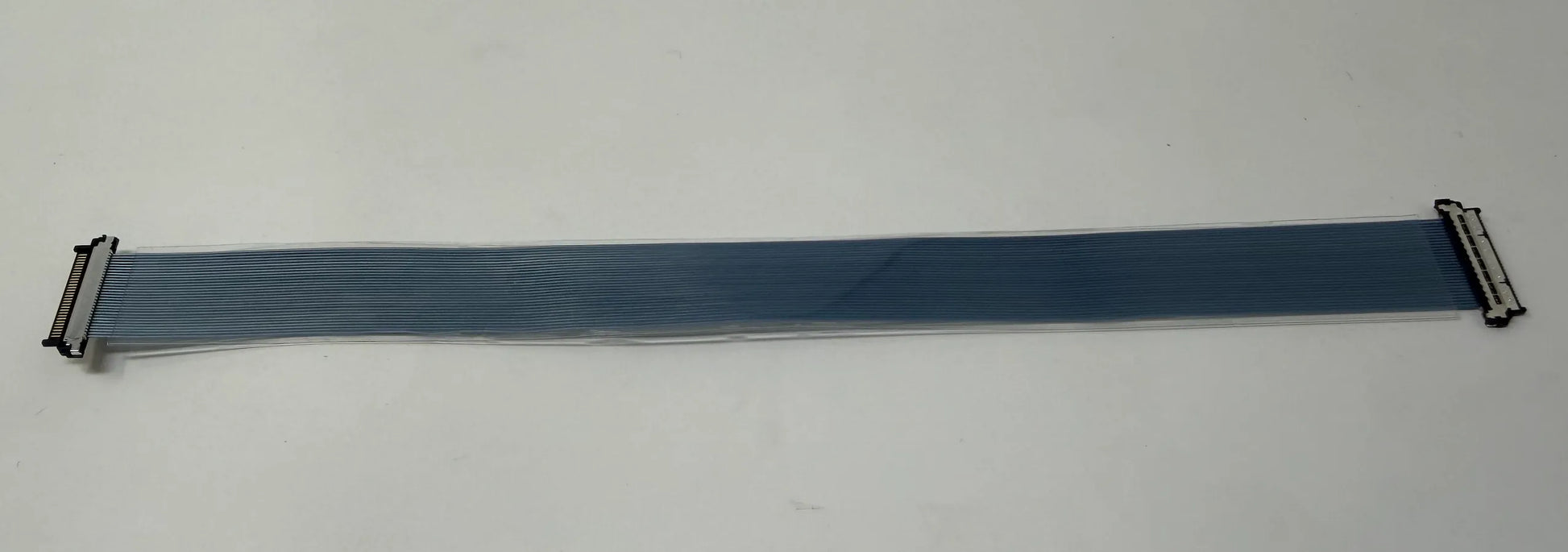

Block Cameras USL20-30SS-025.0-BH B Style 250mm Micro Coaxial Cable – Board-to-Camera, High-Speed AWG#42

USL20-30SS-025.0-BH Spec Sheet

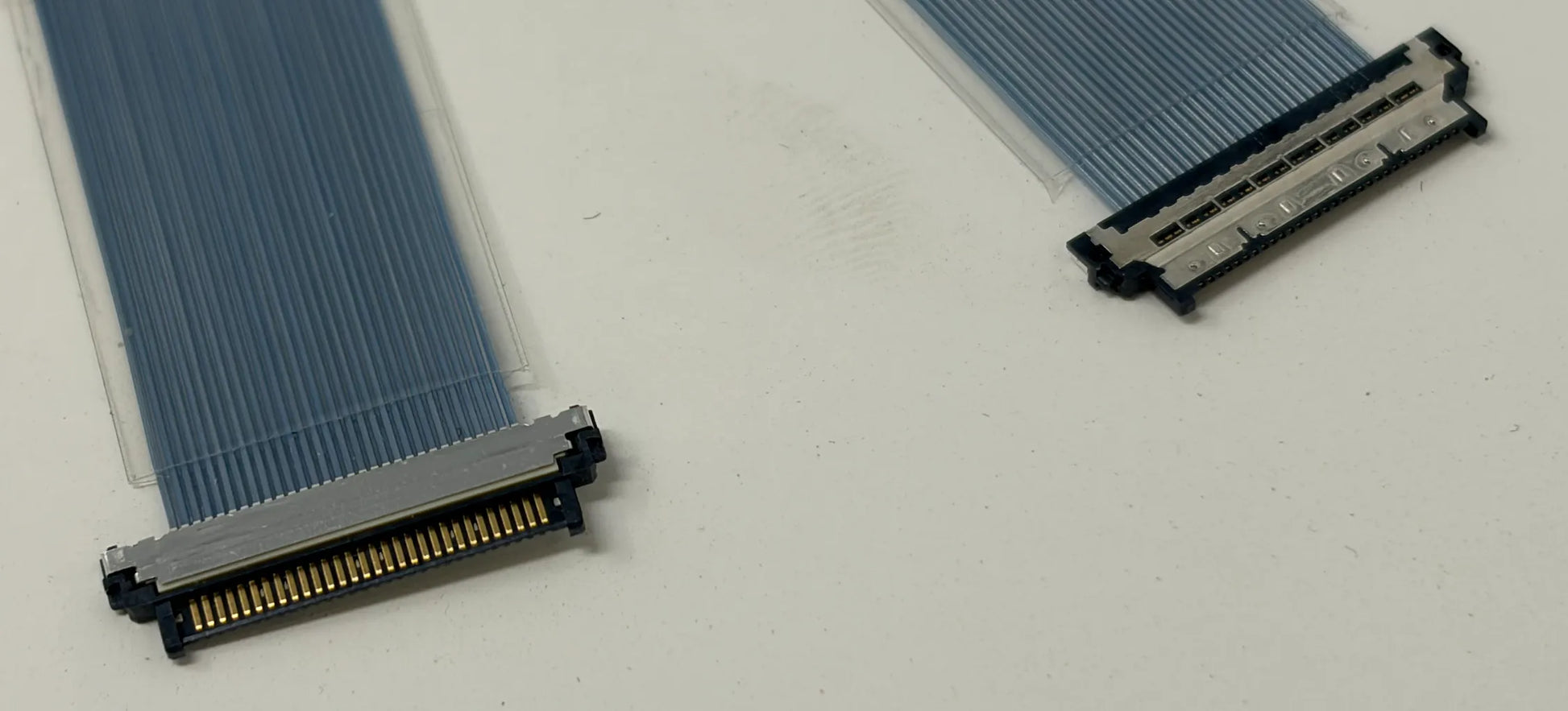

The USL20-30SS-025.0-BH is a premium 0.4 mm pitch insulation-displacement (IDC) connector engineered for micro coaxial cables (AWG#42), optimized for high-density block camera and electronics applications that require compact design and reliable high-speed signal transmission. Featuring advanced bulk pressure welding, this connector series provides enhanced connection reliability and durability while enabling significant miniaturization of devices.

Designed with both performance and flexibility in mind, this right-angle board and straight cable connector combination achieves a slim 1.0 mm mated height and 5.6 mm width. The board-side is protected by a full metal shell for superior noise reduction and product strength, while multiple ground terminals ensure improved electromagnetic performance and transmission integrity—ideal for next-generation industrial, imaging, and communications devices in demanding environments.
