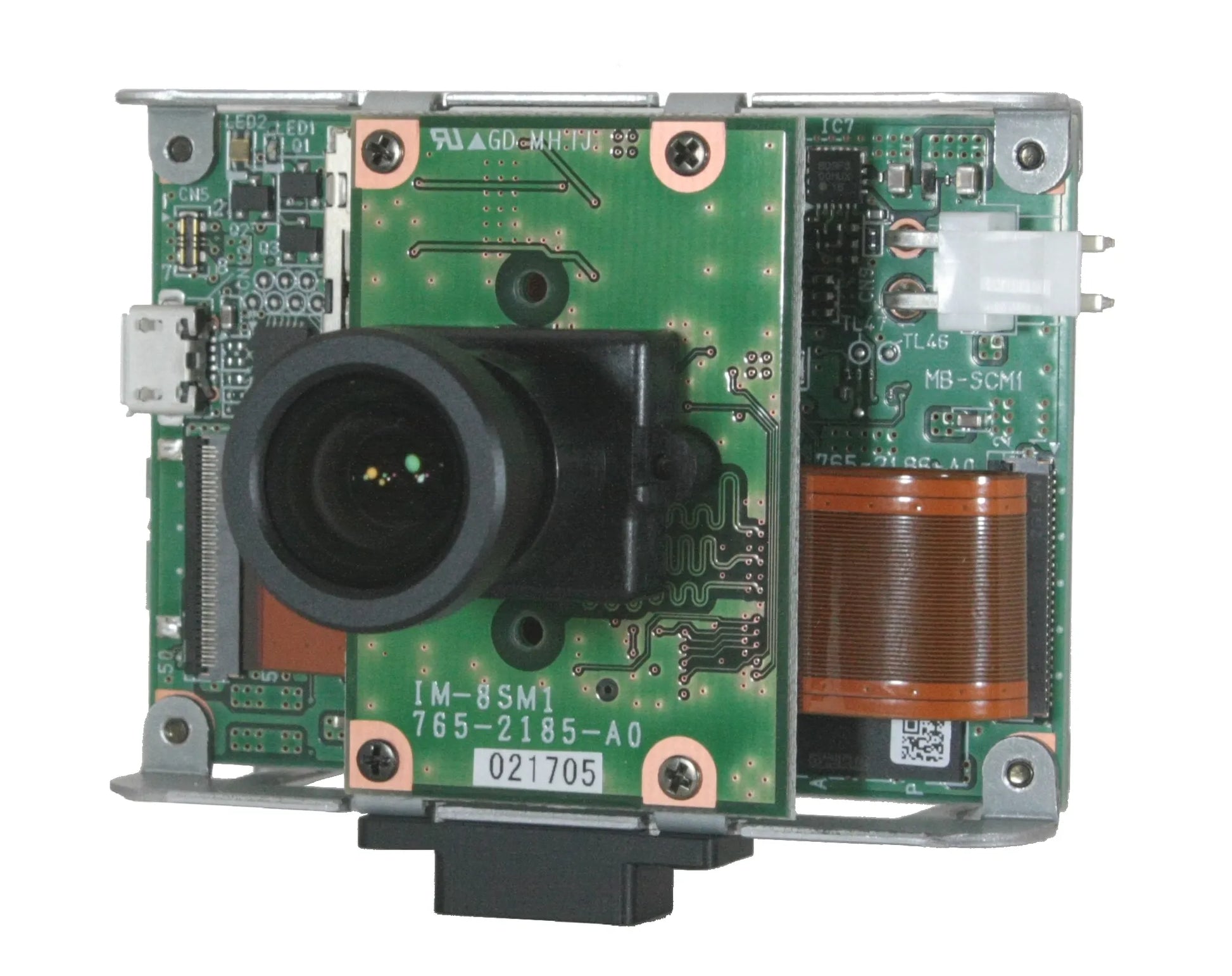

CIS SCM-8M1 8MP Color AI Smart Camera

SCM-8M1 Spec Sheet
CIS Brochure
CIS Catalog

The CIS SCM-8M1 is a compact 8MP color AI smart camera designed for embedded vision, robotics, inspection, AI image processing, object recognition, tracking, surveillance, medical imaging, intelligent traffic, and OEM machine vision applications.

Built around NXP Semiconductor’s i.MX 8M Plus application processor, the SCM-8M1 can support both traditional rule-based image processing and edge AI workloads such as object recognition and object tracking. This makes it a strong choice for vision systems that need onboard processing instead of relying entirely on an external host PC.

The camera features a 1/2.8-inch Sony IMX715 rolling shutter CMOS sensor with 3860 x 2190 effective pixels and up to 30fps at maximum resolution. Its compact and lightweight design, USB3.0 interface, M12 lens mount, and optional HDMI / 1000BASE-T Ethernet interface board make it flexible for industrial, embedded, and AI vision system integration.

Key Features:

• 8MP color AI smart camera
• Features NXP i.MX 8M Plus application processor
• Supports rule-based image processing and edge AI processing
• Suitable for object recognition and object tracking
• Sony IMX715 CMOS sensor
• 3860 x 2190 effective pixels
• Up to 30fps at maximum resolution
• 1/2.8-inch rolling shutter CMOS sensor
• USB3.0 interface
• Optional HDMI / 1000BASE-T Ethernet support with I/F board
• Compact and lightweight smart camera design
• M12 lens mount
• Designed for embedded vision, robotics, AI imaging, inspection, medical imaging, traffic, and surveillance applications

Applications:

• Edge AI vision systems
• Object recognition and object tracking
• Robotics vision
• Embedded image processing
• Machine vision inspection
• Industrial automation
• Medical and life science imaging
• Intelligent traffic systems
• Surveillance and security imaging
• UAV and drone imaging systems
• OEM smart camera integration
• Quality control and automated inspection
