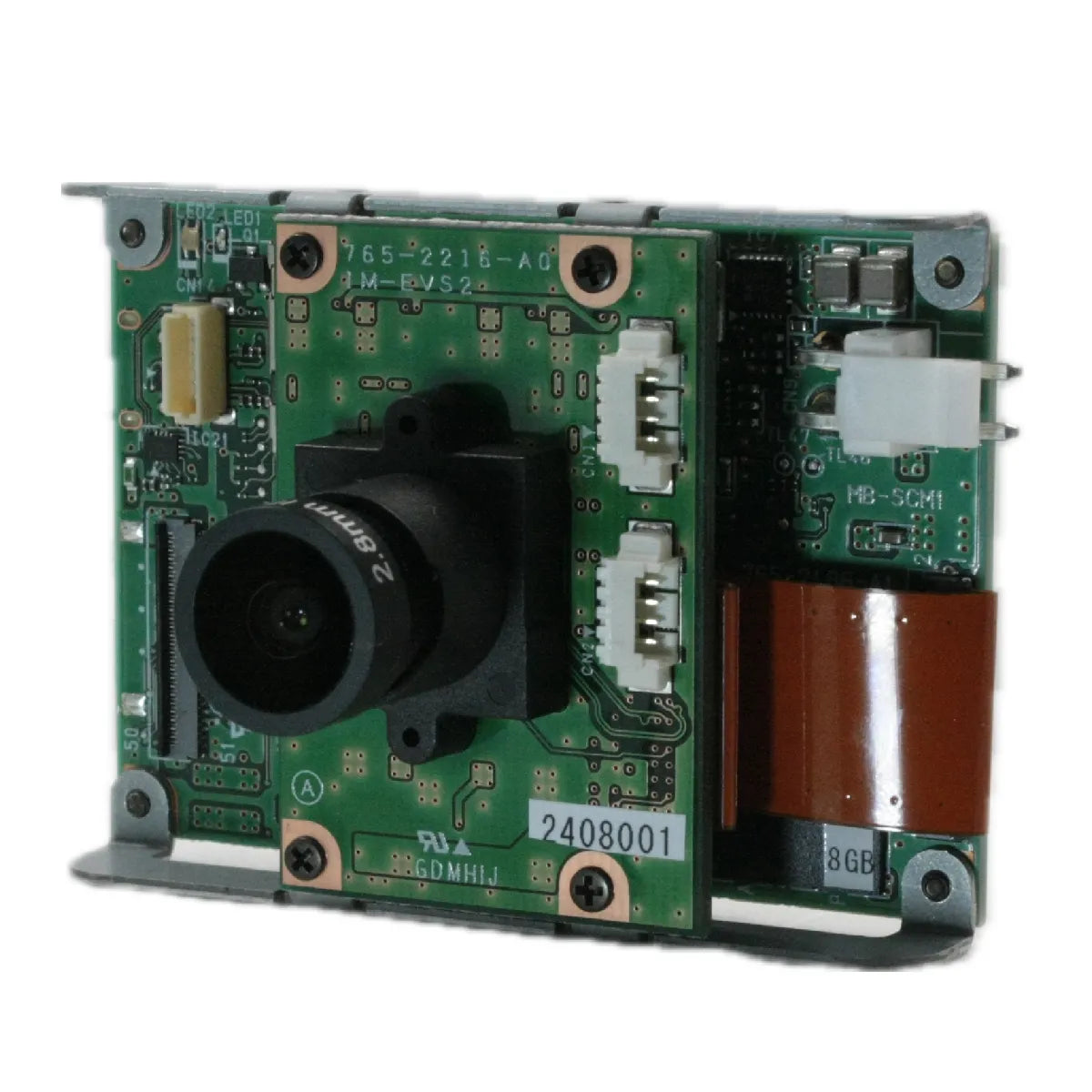

CIS SCM-EVS1 EVS Smart Camera with NXP i.MX 8M Plus AI Processor

CIS Brochure
CIS Catalog

The CIS SCM-EVS1 is a compact AI smart camera featuring Prophesee’s EVS Event-Based Vision Sensor and the NXP i.MX 8M Plus application processor. Designed for advanced machine vision, robotics, security, motion analysis, and high-speed inspection applications, the SCM-EVS1 captures scene changes as events rather than traditional full-frame images.

Unlike conventional frame-based cameras, event-based vision detects only changes in brightness at the pixel level. This enables extremely high temporal resolution, reduced data bandwidth, strong performance in challenging lighting, and fast response for motion-driven imaging tasks. The SCM-EVS1 is well suited for applications such as spatter monitoring, droplet detection, high-speed motion capture, intrusion detection, harsh lighting surveillance, robotics vision, and intelligent sensing systems.

With USB 3.0 connectivity, a compact 65 x 48 x 40 mm body, M12 lens mount, and optional HDMI / 1000BASE-T Ethernet support through an interface board, the SCM-EVS1 provides a flexible embedded vision platform for OEMs, AI developers, automation engineers, and machine vision integrators.

Key Features:

• CIS SCM-EVS1 EVS smart camera for AI and embedded vision applications
• Features NXP i.MX 8M Plus high-performance application processor
• Prophesee GenX320 event-based vision sensor
• Monochrome 320 x 320 event-based image sensing
• Extremely high temporal resolution, equivalent to 10K-frame-class motion capture
• Wide dynamic range performance for harsh or changing lighting conditions
• Reduced data bandwidth compared to conventional frame-based cameras
• USB 3.0 interface for high-speed system integration
• Optional HDMI and 1000BASE-T Ethernet support with interface board
• Compact lightweight design for robotics, UAV, embedded AI, and inspection systems
• M12 lens mount for compact optical integration
• Ideal for spatter, droplet, motion, intrusion, and high-speed event detection

Applications:

• Robotics vision and autonomous sensing
• UAV and drone vision systems
• AI smart camera development
• Embedded machine vision
• High-speed motion capture
• Spatter and droplet monitoring
• Intrusion detection under harsh lighting
• Industrial inspection and automation
• Intelligent traffic and transportation sensing
• Surveillance in high dynamic range environments
• Medical and scientific motion analysis
• OEM vision system integration

WHY CHOOSE THE CIS SCM-EVS1
The CIS SCM-EVS1 is built for applications where speed, motion awareness, and efficient data handling matter more than conventional frame-by-frame imaging. Its event-based vision architecture allows the camera to react to changes in a scene with extremely low latency and reduced bandwidth, making it a strong choice for real-time AI vision, industrial automation, robotics, and intelligent security applications.

Specifications
