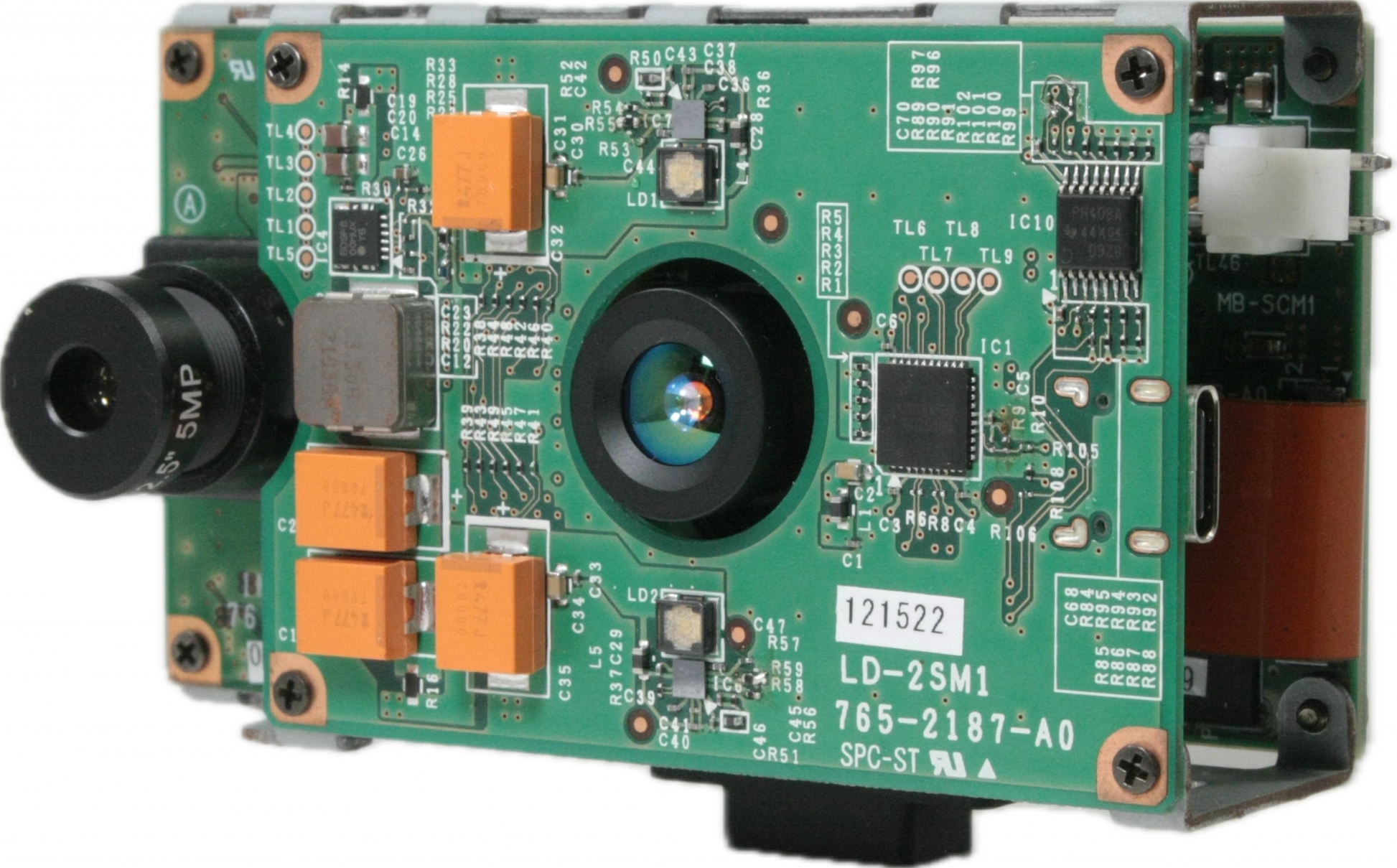

CIS SCM-RGBD1 ToF + RGB AI Smart Camera

CIS Brochure
CIS Catalog

The CIS SCM-RGBD1 is a compact ToF + RGB AI smart camera designed for robotics, automation, machine vision, object detection, obstacle sensing, and intelligent embedded vision applications. Featuring an NXP i.MX 8M Plus application processor, a Time-of-Flight depth sensor, and a 2MP global shutter RGB CMOS sensor, the SCM-RGBD1 allows systems to capture depth and color image data simultaneously for more accurate real-world perception.

This smart RGB-D camera is ideal for AGV and AMR navigation, robotic picking, precision object detection, object tracking, obstacle detection, intrusion detection, and AI vision development. By combining RGB image recognition with ToF depth measurement, the SCM-RGBD1 helps improve decision-making in applications where distance, shape, position, and object identification all matter.

With USB3.0 connectivity, M12 lens support, compact dimensions, and optional HDMI / 1000BASE-T Ethernet support through an added interface board, the SCM-RGBD1 is a flexible embedded vision camera for integrators building next-generation robotics, automation, security, and AI vision systems.

Key Features:

• ToF + RGB smart camera for depth sensing and color imaging
• Built around the NXP i.MX 8M Plus application processor
• 2MP RGB global shutter CMOS sensor
• ToF depth sensor with 0.4 m to 5 m measurement range
• Simultaneous RGB object detection and ToF depth sensing
• 1920 x 1202 RGB resolution
• 640 x 480 ToF effective pixels
• ToF up to 15 fps and RGB up to 30 fps
• USB3.0 interface
• Optional HDMI and 1000BASE-T Ethernet with added I/F board
• M12 lens mount
• Compact 83.5 x 48 x 59.2 mm body
• Lightweight 110 g design
• Designed for robotics, AGV, AMR, AI vision, machine vision, and security applications

Applications:

• AGV and AMR navigation
• Robotic picking and precision positioning
• Object detection and object tracking
• Obstacle detection
• Intrusion detection
• AI vision systems
• Embedded vision development
• Industrial automation
• Intelligent traffic systems
• Machine vision inspection
• Surveillance and security analytics
• UAV, drone, and autonomous system development

Why Choose the CIS SCM-RGBD1?
The CIS SCM-RGBD1 combines RGB image capture, ToF depth measurement, onboard AI processing capability, and compact embedded-camera design in one smart vision solution. For engineers and system integrators developing robotics, automation, intelligent security, and AI-based machine vision systems, the SCM-RGBD1 provides the foundation for depth-aware object detection and real-time environmental sensing.

Note:
*i.MX 8M Plus is a registered trademark of NXP Semiconductors N.V.
