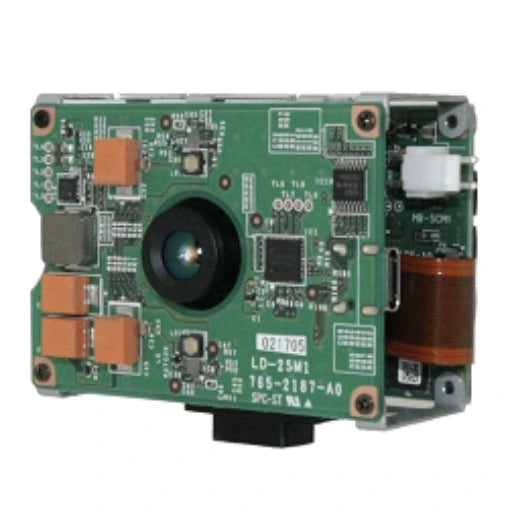

The CIS SCM-ToF1 is a compact and lightweight Time-of-Flight AI smart camera designed for embedded vision, robotics, automation, and intelligent detection systems. Built around the NXP i.MX 8M Plus high-performance application processor, the SCM-ToF1 combines onboard AI processing capability with a ToF CMOS sensor to deliver reliable depth sensing in a small form factor.

With 640 × 480 resolution, 15 fps operation, USB3.0 interface, and a depth measurement range of 0.4 to 5 meters, the SCM-ToF1 is well suited for AGV and AMR navigation, robotic picking, object tracking, obstacle detection, intrusion detection, smart monitoring, and industrial automation applications.

The camera features a 63° horizontal by 48° vertical field of view, M12 lens mount, and comes equipped with a ToF lens. Optional interface board support enables HDMI and 1000BASE-T Ethernet output, giving system integrators added flexibility for AI vision, machine vision, and embedded depth-sensing designs.

Key Features:

• Compact Time-of-Flight AI smart camera
• Built with NXP i.MX 8M Plus application processor
• 640 × 480 mono ToF depth imaging
• Sony IMX570 ToF CMOS sensor
• Depth measurement range: 0.4m to 5m
• 15 fps frame rate
• USB3.0 interface
• Optional HDMI and 1000BASE-T Ethernet with I/F board
• 63° horizontal × 48° vertical field of view
• M12 lens mount with ToF lens included
• DC +12V power requirement
• Compact 65 × 48 × 40 mm camera body
• Ideal for AGV, AMR, robotics, AI vision, obstacle detection, and intrusion detection

Applications:

• AGV and AMR navigation
• Robotics and robotic picking
• Object tracking
• Obstacle detection
• Intrusion detection
• Industrial automation
• AI vision systems
• Embedded machine vision
• Intelligent traffic and monitoring systems
• Surveillance and security analytics
• Warehouse automation
• Mobile robot vision
• Depth sensing and distance measurement
