CIS SCM-ToF2 AI USB 3.0 ToF Camera – 640 x 480 Mono Depth Camera

CIS Brochure
CIS Catalog

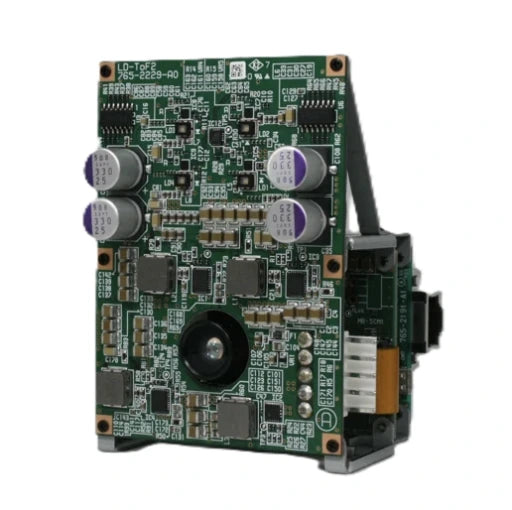

The CIS SCM-ToF2 is a compact, lightweight AI smart ToF camera designed for robotics, automation, intelligent sensing, and embedded vision applications. Equipped with NXP Semiconductors’ high-performance i.MX 8M Plus application processor and a 1/3.2-inch ToF CMOS sensor, the SCM-ToF2 delivers real-time depth sensing in a compact board-level camera format.

With a 640 x 480 mono depth resolution, 15 fps output, USB 3.0 interface, and a measurement range of 0.7 to 20 meters, the SCM-ToF2 is ideal for applications that require reliable distance measurement, depth perception, obstacle detection, and object recognition. It is well suited for AGVs, AMRs, fruit-picking robots, load recognition systems, intruder detection, object tracking, and machine vision systems that need compact AI-enabled depth sensing.

The SCM-ToF2 also supports optional HDMI and 1000BASE-T Ethernet connectivity, making it flexible for robotics developers, industrial automation engineers, embedded vision integrators, AI vision systems, and OEM machine vision applications.

Key Features:

• AI processor-equipped USB 3.0 ToF smart camera

• Built with NXP i.MX 8M Plus high-performance application processor

• 1/3.2-inch ToF CMOS sensor

• 640 x 480 mono depth resolution

• 15 fps image output

• Measurement range from 0.7 m to 20 m

• 56.1° horizontal x 42° vertical field of view

• USB 3.0 interface

• Optional HDMI and 1000BASE-T Ethernet support

• Compact board-level camera design

• M12 lens mount with installed lens

• Ideal for robotics, AGV, AMR, object tracking, obstacle detection, and intruder detection applications

Applications:

• Autonomous mobile robots

• Automatic guided vehicles

• Robotics vision systems

• UAV and drone sensing systems

• Industrial automation

• Machine vision inspection

• AI depth sensing

• Object tracking

• Obstacle detection

• Load recognition

• Fruit-picking robots

• Intruder detection

• Security and surveillance systems

• Smart factory automation

• Embedded vision systems

• OEM depth camera integration

Specifications
