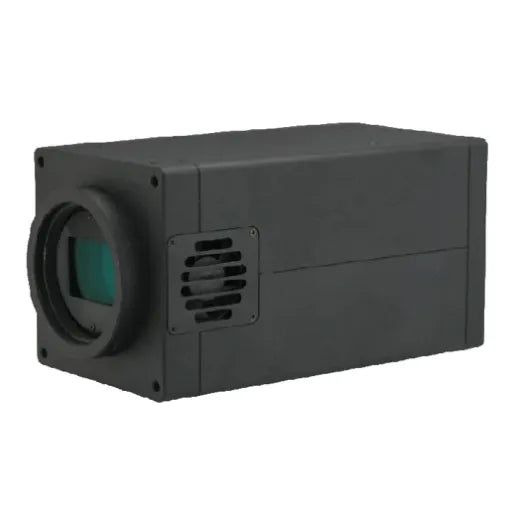

CIS VCC-10CoF2M 10MP Mono CoaXPress-over-Fiber Camera

CIS Brochure
CIS Catalog

The CIS VCC-10CoF2M is an ultra-fast 10MP monochrome CoaXPress-over-Fiber camera designed for high-speed machine vision, factory automation, scientific imaging, inspection, motion analysis, robotics, semiconductor, electronics, traffic, and advanced industrial imaging applications.

Built around a Gpixel GSPRINT4510 4/3-inch global shutter CMOS sensor, the VCC-10CoF2M delivers 4608 x 2176 resolution at up to 1098fps at maximum resolution. For applications that require extreme speed in a smaller image area, the camera can reach approximately 92,000fps when ROI is set, making it a powerful option for ultra-high-speed inspection, tracking, measurement, defect analysis, and motion capture.

The camera uses a CoaXPress-over-Fiber interface with QSFP28 x 1, 100Gbps transmission, supporting long-distance, ultra-high-speed image transfer for demanding machine vision systems. Compared with traditional copper-based high-speed interfaces, CoaXPress-over-Fiber is especially useful when high bandwidth, distance, electrical isolation, and clean cabling are important.

With ROI, 2x2 binning, and defective pixel correction, the VCC-10CoF2M gives engineers the flexibility needed for precision imaging applications where speed, resolution, and image quality all matter.

Key Features:

• 10MP monochrome CoaXPress-over-Fiber camera
• Gpixel GSPRINT4510 4/3-inch global shutter CMOS sensor
• 4608 x 2176 effective pixels
• Up to 1098fps at maximum resolution
• Approximately 92,000fps when ROI is set
• CoaXPress-over-Fiber interface
• QSFP28 x 1, 100Gbps transmission
• Long-distance, ultra-high-speed image transmission
• 4.5 x 4.5 µm pixel size
• Supports ROI
• Supports 2x2 binning
• Supports defective pixel correction
• TFL-II lens mount
• Designed for high-speed machine vision, inspection, motion analysis, factory automation, robotics, and industrial imaging

Applications:

• Ultra-high-speed machine vision
• Factory automation inspection
• Motion analysis and high-speed capture
• Semiconductor inspection
• Electronics inspection
• Defect detection
• Precision measurement
• Robotics vision
• High-speed object tracking
• Scientific and research imaging
• Intelligent traffic and transportation imaging
• Industrial automation
• Packaging and production line inspection
• OEM high-speed imaging systems
• Applications requiring long-distance, high-bandwidth image transmission
