CIS VCC-20U051M/R 20MP Mono USB3.2 Camera

CIS Brochure
CIS Catalog

The CIS VCC-20U051M is a compact 20MP monochrome USB3.2 camera designed for machine vision, factory automation, inspection, robotics, embedded imaging, AI vision, medical imaging, intelligent traffic, surveillance, and OEM vision system integration.

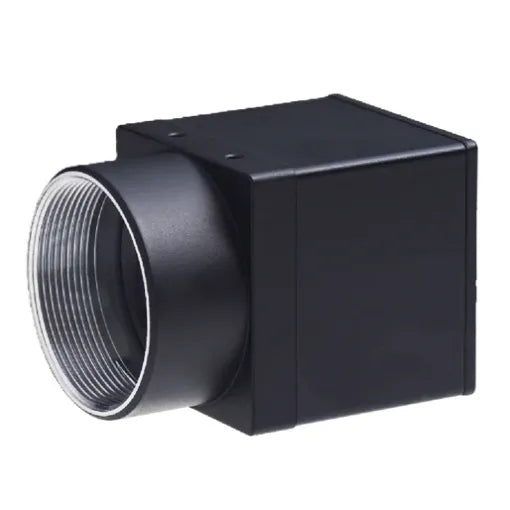

Built in a small 29 x 29 x 29 mm body, the VCC-20U051M uses a 1/1.8-inch AR2020 rolling shutter CMOS sensor with 5120 x 3840 effective pixels. Its high-resolution monochrome imaging makes it a strong fit for applications that require detailed inspection, measurement, alignment, defect detection, OCR, part verification, and other industrial imaging tasks.

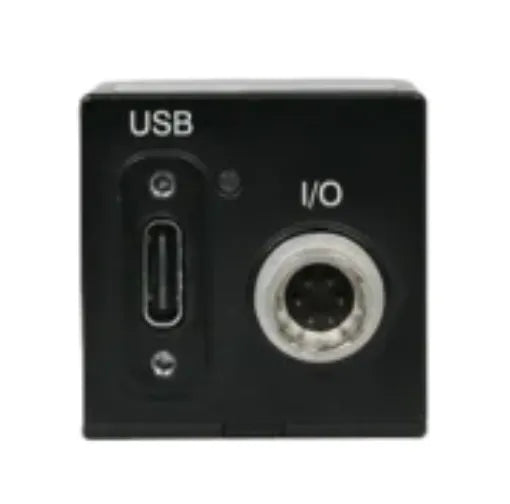

The camera uses a USB 5Gbps / USB3.2 interface and supports image transmission, camera control, and power through a single USB Type-C cable. Because no frame grabber is required, the VCC-20U051M helps reduce system cost and simplifies integration into compact machine vision and factory automation systems.

With support for ROI, binning, external trigger mode, and C-mount lenses, the VCC-20U051M gives engineers flexibility when building high-resolution inspection systems, embedded vision platforms, robotics systems, and industrial automation equipment.

Key Features:

• 20MP monochrome USB3.2 camera
• Compact 29 mm square camera body
• AR2020 CMOS sensor
• 5120 x 3840 effective pixels
• Up to 24fps at maximum resolution
• 1/1.8-inch rolling shutter CMOS sensor
• USB 5Gbps interface
• Single USB Type-C cable for image data, camera control, and power
• No frame grabber required
• Supports ROI and binning
• Supports external trigger mode
• C-mount lens compatibility
• Well suited for FA, machine vision, inspection, robotics, embedded vision, and AI imaging systems

Applications:

• Factory automation
• Machine vision inspection
• High-resolution measurement
• Defect detection
• Part verification
• Alignment and positioning
• OCR and code reading
• Robotics vision
• Embedded vision systems
• AI vision and edge imaging
• Medical and life science imaging
• Intelligent traffic systems
• Surveillance and security imaging
• Industrial automation
• OEM camera integration
