CIS VCC-20U101M 20MP Mono USB3.2 Camera

CIS Brochure
CIS Catalog

The CIS VCC-20U101M is a compact 20MP monochrome USB3.2 camera designed for factory automation, machine vision, inspection, robotics, embedded imaging, AI vision, medical imaging, intelligent traffic, surveillance, and OEM vision system integration.

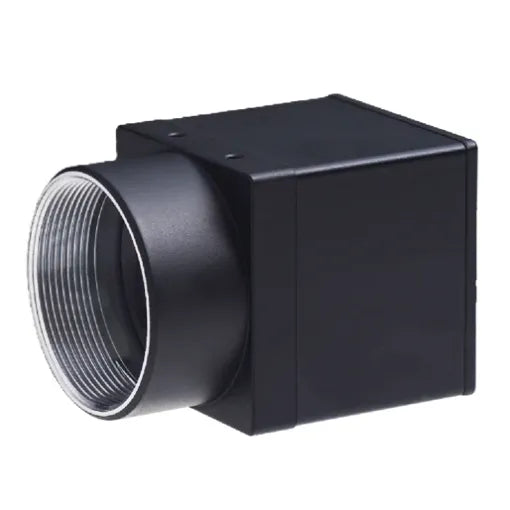

Built in a small 29 x 29 x 29 mm body, the VCC-20U101M uses a 1/1.8-inch AR2020 rolling shutter CMOS sensor with 5120 x 3840 effective pixels. With up to 60fps at maximum resolution, this model is ideal for high-resolution inspection applications that require faster image capture than lower-speed USB models.

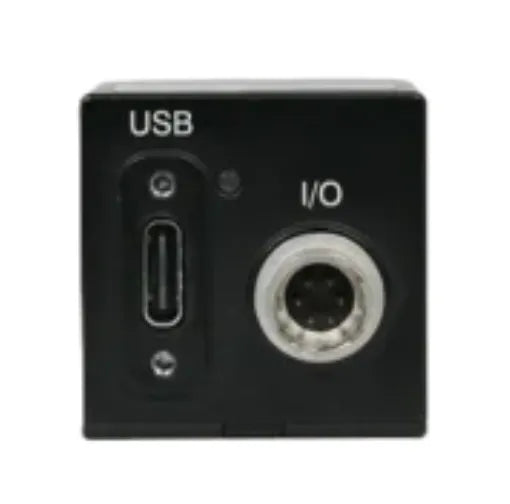

The camera uses a USB 10Gbps / USB3.2 interface and supports image transmission, camera control, and power through a single USB Type-C cable. Since no frame grabber is required, the VCC-20U101M helps simplify system design while reducing integration cost.

With support for ROI, binning, external trigger mode, and C-mount lenses, the VCC-20U101M gives engineers flexibility for high-resolution inspection, measurement, positioning, defect detection, automation, and embedded vision applications.

Key Features:

• 20MP monochrome USB3.2 camera
• Compact 29 mm square camera housing
• AR2020 CMOS sensor
• 5120 x 3840 effective pixels
• Up to 60fps at maximum resolution
• 1/1.8-inch rolling shutter CMOS sensor
• USB 10Gbps interface
• USB3.2 Gen 2x1
• Single USB Type-C cable for image data, camera control, and power
• No frame grabber required
• Supports ROI and binning
• Supports external trigger mode
• C-mount lens compatibility
• Well suited for FA, machine vision, inspection, robotics, embedded vision, and AI imaging systems

Applications:

• Factory automation
• Machine vision inspection
• High-resolution measurement
• Defect detection
• Part verification
• Alignment and positioning
• OCR and code reading
• Robotics vision
• Embedded vision systems
• AI vision and edge imaging
• Medical and life science imaging
• Intelligent traffic systems
• Surveillance and security imaging
• Industrial automation
• OEM camera integration
• High-speed 20MP inspection systems

Technical Specifications
