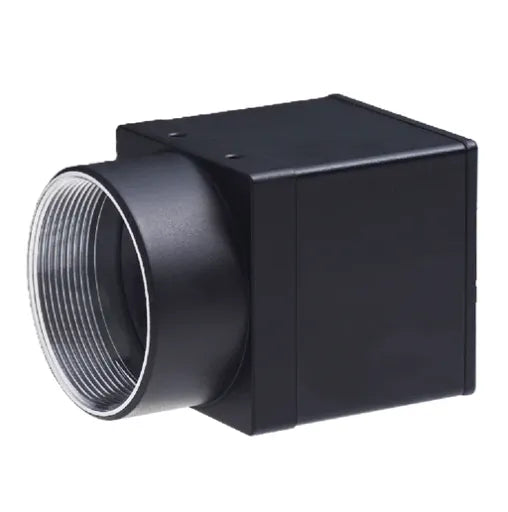

CIS VCC-3U051R USB3.2 3MP Color Global Shutter Machine Vision Camera

CIS Brochure
CIS Catalog

The CIS VCC-3U051R is a compact 3MP USB3.2 color industrial camera built for machine vision, factory automation, robotics, inspection, AI imaging, UAV/drone vision, medical imaging, intelligent traffic systems, and embedded vision applications. Featuring a Sony IMX900 global shutter CMOS sensor, this camera captures crisp, low-distortion images of moving objects at up to 125 fps.

Designed in a compact 29 x 29 x 29 mm body, the VCC-3U051R provides high-speed imaging performance while saving space in tight system designs. Its USB3 Vision / USB 3.2 Gen 1x1 interface allows image transmission, camera control, and power through a single USB Type-C cable, helping reduce wiring complexity and system cost.

With support for external trigger mode, ROI, and binning, the CIS VCC-3U051R is ideal for high-speed inspection, precision measurement, robot guidance, automated sorting, motion analysis, quality control, and compact OEM imaging systems.

Key Features:

• 3MP color USB3.2 industrial camera
• Sony IMX900 global shutter CMOS sensor
• High-speed imaging up to 125 fps
• Compact 29 mm cube camera body
• USB3 Vision and USB 3.2 Gen 1x1 interface
• Single USB Type-C cable for image transmission, control, and power
• External trigger mode support
• ROI and binning functionality
• C-mount lens interface
• Designed for FA, machine vision, robotics, inspection, and OEM imaging

Applications:

• Machine vision inspection
• Factory automation
• Robotics vision
• UAV and drone imaging
• AI vision systems
• Intelligent traffic systems
• Medical and laboratory imaging
• High-speed object detection
• Quality control and measurement
• Embedded OEM vision systems
• Surveillance and industrial monitoring
