CIS VCC-4K2 4K Color Global Shutter Camera with Quad 3G-SDI
CIS VCC-4K2 4K Color Global Shutter Camera with Quad 3G-SDI
Couldn't load pickup availability
VCC-4K2 Spec Sheet
CIS Brochure
CIS Catalog
The CIS VCC-4K2 is a compact 4K color industrial camera built for high-resolution imaging applications that require sharp motion capture, accurate color reproduction, and reliable 3G-SDI video output. Featuring a 1-type global shutter CMOS sensor, the VCC-4K2 delivers 4K UHD video at up to 60p/59.94p/50p through a Quad 3G-SDI interface, making it well suited for machine vision, broadcast inspection, robotics, UAV imaging, medical visualization, intelligent traffic systems, and advanced surveillance applications.
Designed with CIS original image signal processing technology, Clairvu™, the VCC-4K2 provides superb image quality in a compact 65 × 65 × 110 mm form factor. The camera supports color correction, noise reduction, Gamma control via RS-232C, LTC time code, and GenLock using a 3-value analog signal or black burst. It also conforms to BT.2100 Gamma curve and BT.2020 color gamut, helping deliver high-quality 4K imaging for demanding professional and industrial environments.
Key Features:
- 4K UHD color camera with 3840 × 2160 resolution
- 1-type global shutter CMOS sensor for reduced motion distortion
- Quad 3G-SDI output for 4K UHD 60p/59.94p/50p video
- Single 3G-SDI output for 1080p 60p/59.94p/50p video
- CIS original Clairvu™ ISP for superb imaging quality
- Compact 65 × 65 × 110 mm camera body
- GenLock function with 3-value analog signal or black burst
- Color correction and noise reduction functions
- Gamma control via RS-232C
- LTC time code support
- Conforms to BT.2100 Gamma curve and BT.2020 color gamut
- M42 lens mount
- Board type version DCC-4K2 also available
Applications:
- Machine vision and industrial inspection
- Robotics and automation imaging
- UAV and drone imaging systems
- Medical and scientific visualization
- Intelligent traffic and transportation monitoring
- Broadcast, live production, and professional video systems
- Security and surveillance applications
- High-resolution inspection and measurement systems
- AI vision and advanced imaging platforms
Technical Specifications
| Model | VCC-4K2 |
|---|---|
| Color / Mono | Color |
| Resolution | 3840 × 2160 |
| Output Format | 2160p / 1080p |
| Sensor Model | Sony IMX305 |
| Shutter Type | Global Shutter |
| Imager Size | 1.0 Type CMOS |
| Effective Pixels | 3840 × 2160 |
| Pixel Size | 3.45 × 3.45 μm |
| Power Consumption | 12W |
| Power Requirement | DC +9V to +15V |
| Minimum Illumination | 3.0 lx, F1.4 |
| Sensitivity | F5.6, 2000 lx |
| Shutter Variable Range | 1/23.98 to 1/13600 sec |

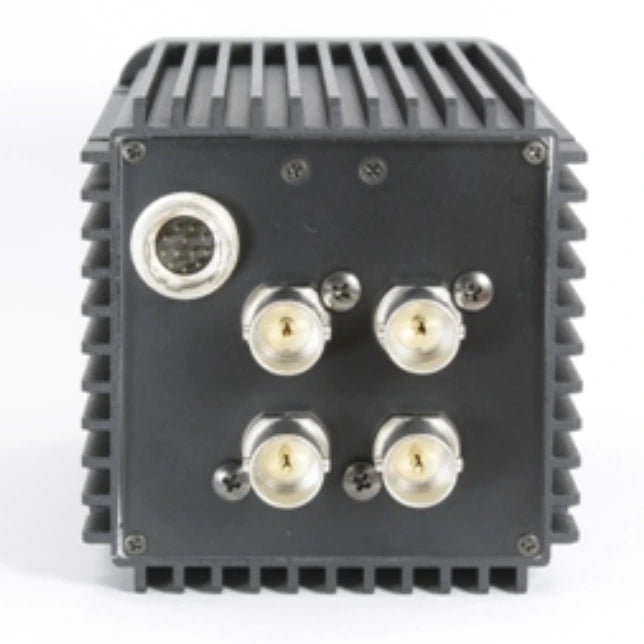

| Interface | 3G-SDI ×4 - 2SI / Square Division, 3G-SDI ×1 |
| Lens Mount | M42 |
| Weight | 420 g |
| Dimensions | 65 × 65 × 110 mm |
The CIS VCC-4K2 is a strong choice for engineers and system integrators who need a compact 4K global shutter camera with professional SDI connectivity, accurate imaging performance, and reliable control features for industrial and embedded vision systems.
