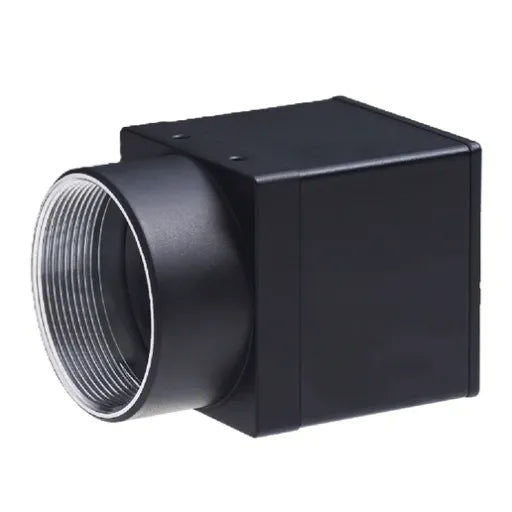

CIS VCC-5U101M 5MP Mono USB3.2 Global Shutter Industrial Camera

CIS Brochure
CIS Catalog

The CIS VCC-5U101M is a compact 5MP monochrome USB3.2 industrial camera designed for high-speed machine vision, robotics, inspection, automation, UAV/drone imaging, AI vision systems, medical imaging, intelligent traffic systems, surveillance, and embedded vision applications. Built around a global shutter CMOS sensor, the VCC-5U101M captures fast-moving objects with reduced motion distortion, making it ideal for precision imaging where timing, clarity, and repeatability matter.

With a 2448 × 2048 resolution, 187 fps maximum frame rate, USB3 Vision compatibility, and USB 3.2 Gen 2x1 interface, this camera delivers fast image transfer through a single USB Type-C cable for video transmission, camera control, and power. Its compact 29 × 29 × 29 mm cube design allows easy integration into space-limited machine vision systems, robotic platforms, inspection equipment, medical devices, traffic monitoring systems, and OEM imaging assemblies.

The VCC-5U101M supports ROI and binning functionality for application-specific image optimization, along with external trigger mode for synchronized capture in automated inspection and high-speed industrial environments. A standard C-mount lens interface provides flexibility for pairing the camera with a wide range of machine vision lenses.

Key Features:

• 5MP monochrome industrial USB camera

• 2448 × 2048 effective pixel resolution

• 187 fps at maximum resolution

• Global shutter CMOS sensor for fast-moving targets

• GMAX3405 sensor

• 2/3" CMOS imager format

• USB3 Vision and USB 3.2 interface

• USB 3.2 Gen 2x1, 5 Gbps / 10 Gbps support

• Single USB Type-C cable for image transfer, control, and power

• Compact 29 mm cube camera body

• ROI and binning functionality

• External trigger mode support

• C-mount lens interface

• Designed for machine vision, robotics, inspection, AI imaging, and OEM integration

Applications:

• Machine vision inspection

• Robotics and robotic guidance

• UAV and drone imaging systems

• AI vision and embedded imaging

• Factory automation

• High-speed inspection

• Medical imaging equipment

• Intelligent traffic systems

• Surveillance and security imaging

• Scientific imaging

• Dimensional inspection

• Motion analysis

• OEM camera integration

• Industrial automation systems
