CIS VCC-5U101R USB3.2 5MP Color Global Shutter Industrial Camera
CIS VCC-5U101R USB3.2 5MP Color Global Shutter Industrial Camera
Couldn't load pickup availability
The CIS VCC-5U101R is a compact 5MP USB3.2 color industrial camera designed for high-speed machine vision, robotics, inspection, automation, UAV/drone imaging, intelligent traffic systems, AI vision, medical imaging, surveillance, and embedded vision applications.
Built around a GMAX3405 global shutter CMOS sensor, the VCC-5U101R captures sharp, distortion-free images of fast-moving objects at up to 187 fps. Its 2448 × 2048 resolution provides detailed 5MP imaging, while the global shutter design helps eliminate motion artifacts in demanding inspection and automation environments.

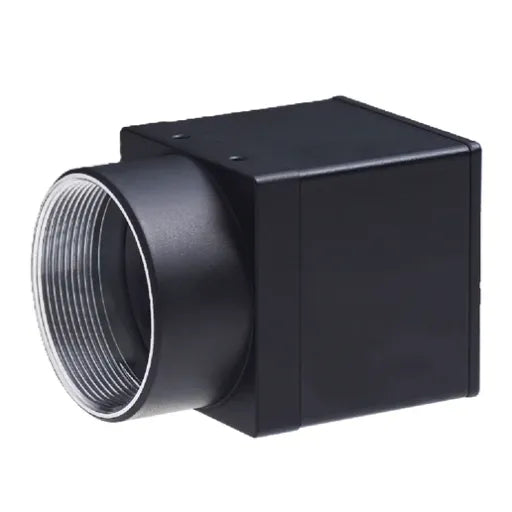

The camera features a compact 29 × 29 × 29 mm cubic housing, making it ideal for space-constrained OEM systems, robotic vision platforms, compact inspection equipment, and multi-camera installations. With USB3 Vision and USB 3.2 Gen 2x1 support, the VCC-5U101R delivers high-speed image transmission, camera control, and power through a single USB Type-C cable.
ROI and binning functionality allow users to optimize frame rate, sensitivity, and data throughput for specific applications. External trigger support provides precise timing control for synchronized image capture in machine vision and automated inspection systems.
The C-mount lens interface gives integrators flexibility when selecting industrial lenses for different fields of view, working distances, and inspection requirements.
Key Features:
- 5MP color industrial camera
- GMAX3405 global shutter CMOS sensor
- Up to 187 fps high-speed image capture
- 2448 × 2048 resolution
- USB3 Vision and USB3.2 interface
- USB 5 Gbps / 10 Gbps support
- USB 3.2 Gen 2x1
- Single USB Type-C cable for image transmission, camera control, and power
- Compact 29 mm cubic camera body
- ROI and binning functionality
- External trigger mode support
- C-mount lens interface
- Designed for machine vision, robotics, inspection, UAV/drone, AI, medical, traffic, and embedded vision applications
Applications:
- Machine vision inspection
- Robotics vision systems
- UAV and drone imaging
- AI vision and edge imaging
- Intelligent traffic systems
- Medical and laboratory imaging
- Industrial automation
- High-speed inspection
- Object tracking and measurement
- Surveillance and security imaging
- Embedded OEM camera systems
- Multi-camera vision installations
| Specification | Details |
|---|---|
| Manufacturer | CIS |
| Model | VCC-5U101R |
| Camera Type | Industrial USB Camera |
| Image Output | Color |
| Resolution | 5MP |
| Frame Rate | 187 fps |
| Sensor | GMAX3405 |
| Shutter Type | Global Shutter |
| Sensor Format | 2/3" CMOS |
| Effective Pixels | 2448(H) × 2048(V) |
| Pixel Size | 3.4 × 3.4 µm |
| Interface | USB |
| Interface Standard | USB3 Vision, USB 3.2 |
| USB Speed | 5 Gbps / 10 Gbps |
| USB Generation | USB 3.2 Gen 2x1 |
| Connector | USB Type-C |
| Lens Mount | C-Mount |
| Functions | ROI, Binning, External Trigger |
| Power / Control | Single USB cable for image transmission, camera control, and power |
| Dimensions | 29 × 29 × 29 mm |
| Primary Use | Machine Vision, Robotics, Inspection, UAV/Drone, AI, Medical, Traffic, Surveillance, OEM Imaging |
