CIS VCC-8U051C 8.29MP Color USB3.2 Camera
CIS VCC-8U051C 8.29MP Color USB3.2 Camera
Couldn't load pickup availability
VCC-8U051C Spec Sheet
CIS Brochure
CIS Catalog

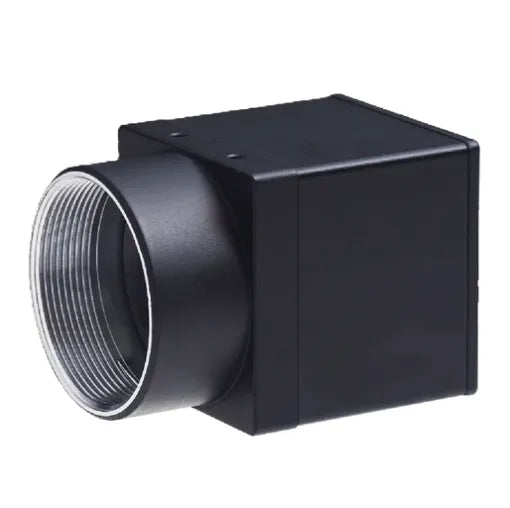

The CIS VCC-8U051C is a compact 8.29MP color USB3.2 Vision camera built for embedded vision, machine vision, robotics, inspection, medical imaging, traffic systems, security, and AI imaging applications. Designed in a small 29 x 29 x 29 mm body, the VCC-8U051C combines high-resolution 4K imaging with USB single-cable simplicity.
Featuring a 1/2.8-inch Sony IMX778 CMOS rolling shutter sensor, the camera delivers 3840 x 2160 effective pixels at up to 27fps. Its USB3.2 Gen 1x1 / USB 5Gbps interface supports image transmission, camera control, and power through a single USB Type-C cable, helping reduce system cost and simplify integration.
The VCC-8U051C is equipped with CIS’s original Clairvu™ ISP, enabling high-precision color correction for applications where accurate color reproduction and compact integration are important. With no frame grabber required, this camera is a strong fit for OEM systems, embedded AI platforms, industrial inspection stations, robotics vision, medical devices, surveillance systems, and intelligent traffic applications.
Key Features:
- 8.29MP color USB3.2 Vision camera
- Sony IMX778 CMOS sensor
- 3840 x 2160 effective pixels
- Up to 27fps at maximum resolution
- Compact 29 mm cubic camera body
- 1/2.8-inch rolling shutter CMOS sensor
- CIS Clairvu™ ISP for high-precision color correction
- USB3.2 Gen 1x1 / USB 5Gbps interface
- Single USB Type-C cable for image data, control, and power
- No frame grabber required
- C-mount lens compatibility
- Ideal for machine vision, robotics, AI vision, inspection, medical imaging, surveillance, and embedded imaging systems
Applications:
- Machine vision inspection
- Robotics vision systems
- AI and embedded vision platforms
- UAV and drone imaging systems
- Medical and life science imaging
- Intelligent traffic and transportation systems
- Surveillance and security imaging
- Industrial automation
- OEM camera integration
- Measurement, alignment, and quality control systems
| Specification | CIS VCC-8U051C |
|---|---|
| Color / Mono | Color |
| Resolution | 8.29MP |
| Max Frame Rate | 27fps |
| Sensor Model | Sony IMX778 |
| Shutter Type | Rolling Shutter |
| Imager Size | 1/2.8-inch CMOS |
| Effective Pixels | 3840(H) x 2160(V) |
| Pixel Size | 1.45 x 1.45 µm |
| Power Requirement | USB |
| Interface | USB3 Vision, USB3.2 |
| USB Standard | USB3.2 Gen 1x1 |
| USB Speed | USB 5Gbps |
| Connector | USB Type-C |
| Lens Mount | C-Mount |
| ISP | CIS Clairvu™ |
| Frame Grabber Required | No |
| Dimensions | 29 x 29 x 29 mm |
| Weight |
