CIS VCC-8U101C 8.29MP Color USB3.2 Camera

VCC-8U101C Spec Sheet
CIS Brochure
CIS Catalog

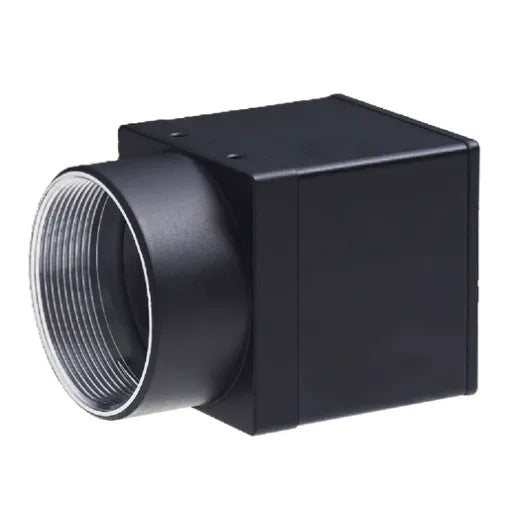

The CIS VCC-8U101C is a compact 8.29MP color USB3.2 camera designed for machine vision, robotics, embedded imaging, medical systems, inspection, surveillance, intelligent traffic, and AI vision applications. Built in a small 29 x 29 x 29 mm cube body, this camera delivers high-resolution 4K imaging while keeping system integration simple and cost-effective.

The VCC-8U101C features a 1/2.8-inch Sony IMX778 CMOS rolling shutter sensor with 3840 x 2160 effective pixels and up to 60fps at maximum resolution. It uses a high-speed USB3.2 Gen 2x1 / USB 10Gbps interface, making it a strong option for applications that need more frame rate than the VCC-8U051C while maintaining the same compact 29 mm form factor.

Equipped with CIS’s original Clairvu™ ISP, the VCC-8U101C enables high-precision color correction for applications where accurate color reproduction matters. A single USB Type-C cable handles image transmission, camera control, and power supply, eliminating the need for a frame grabber and simplifying system design.

Key Features:

• 8.29MP color USB3.2 camera
• Sony IMX778 CMOS sensor
• 3840 x 2160 effective pixels
• Up to 60fps at maximum resolution
• Compact 29 mm cubic body
• 1/2.8-inch rolling shutter CMOS sensor
• CIS Clairvu™ ISP for high-precision color correction
• USB3.2 Gen 2x1 / USB 10Gbps interface

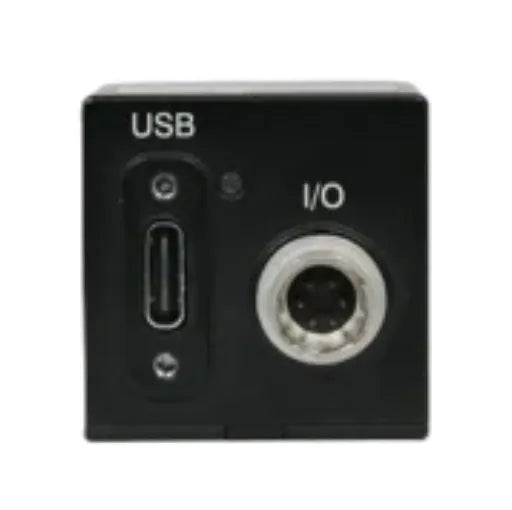

• USB Type-C single-cable operation
• Image transmission, camera control, and power through one USB cable
• No frame grabber required
• C-mount lens support
• Ideal for machine vision, robotics, AI vision, inspection, medical imaging, intelligent traffic, and surveillance systems

Applications:

• Machine vision inspection
• Robotics vision systems
• Embedded AI vision platforms
• UAV and drone imaging systems
• Medical and life science imaging
• Intelligent traffic and transportation systems
• Surveillance and security imaging
• Industrial automation
• OEM imaging integration
• Quality control, measurement, and alignment systems
• High-resolution 4K inspection applications requiring higher frame rate
