dPict DP‑801S 12G‑SDI 4K Interface Board for Sony FCB‑ER9500 & FCB‑ER8530 Block Cameras

DP-801S Spec Sheet

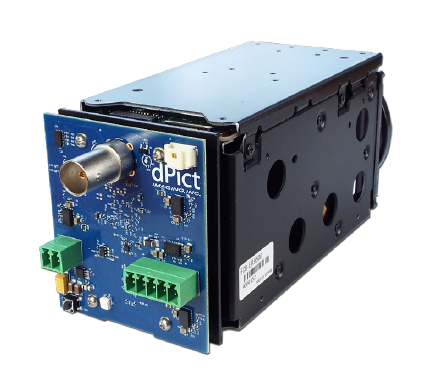

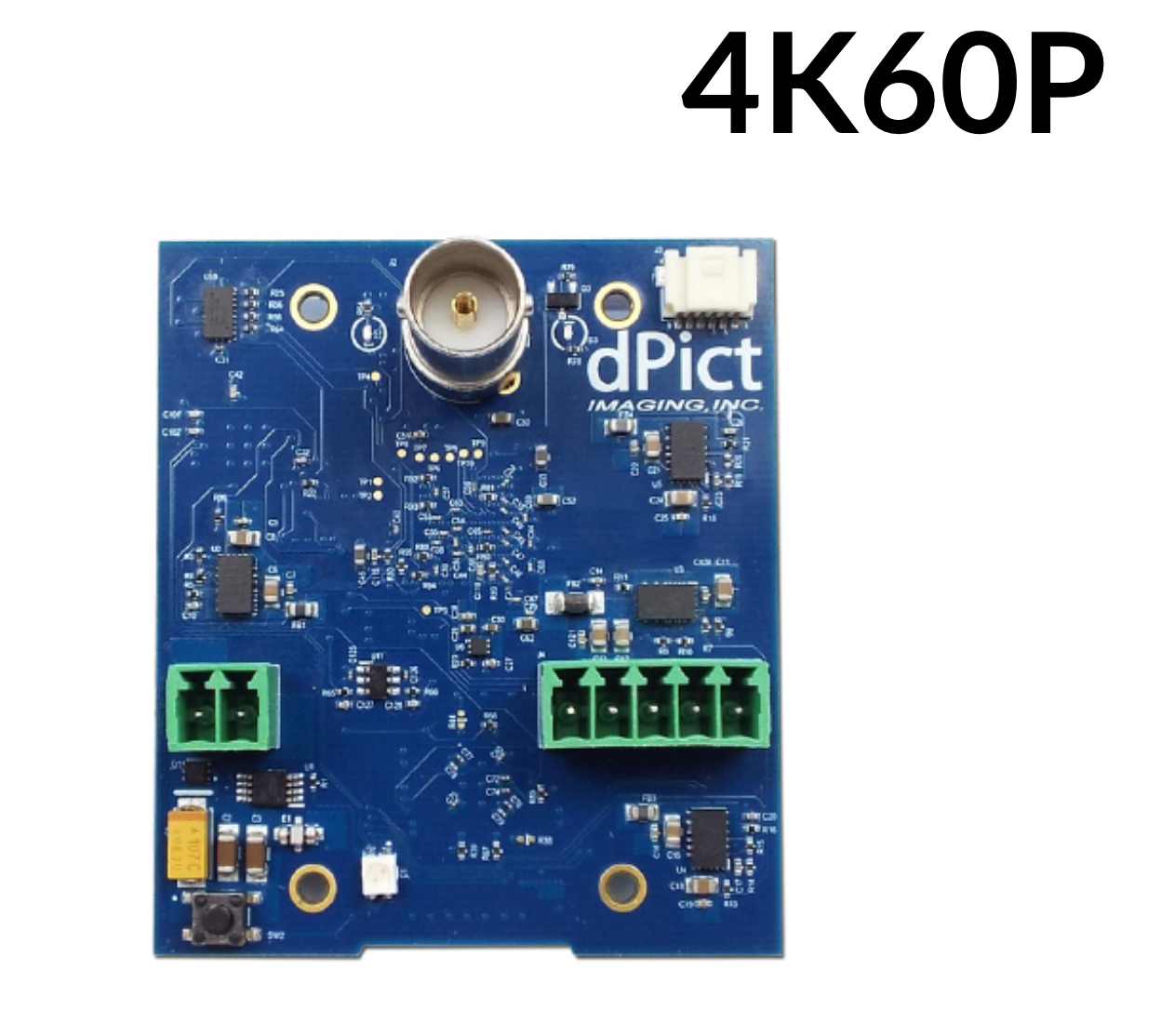

The dPict DP‑801S is a professional-grade 12G SDI interface board engineered to enable real‑time 4K UHD SDI from Sony 4K block cameras. Designed for precision OEM integration, it converts HDMI camera data into a single‑link 12G SDI signal, supporting all video resolutions up to 4K60p for low‑latency, high‑fidelity imaging.

Purpose‑built for broadcast, industrial inspection, medical visualization, and security applications, the DP‑801S offers seamless control with VISCA protocol support, a 30‑pin micro‑coax camera connector, and stable 12 V power delivery. Its robust construction and extended temperature range make it ideal for mission‑critical installations where image quality and system reliability are paramount.

Features:

• 12G SDI output up to 4K60p
• Compatible with Sony FCB‑ER9500, EW9500H, ER8530, ER8550, ER8300, ES8230
• Converts HDMI to SDI for long‑distance signal transmission
• Automatic camera resolution detection
• Power, USB and VISCA interfaces for full control
• Direct connection to 30‑pin Sony camera connector
• Robust −45°C to 85°C temperature range
• Compact 63 mm × 54 mm board design
• Optional integration kit available (KEL cable, power supply, serial cable, mounting bracket)

Applications:

• Broadcast Video
• Industrial Inspection
• Medical Imaging
• Security Surveillance
• Robotics Vision
• UAV Payloads
