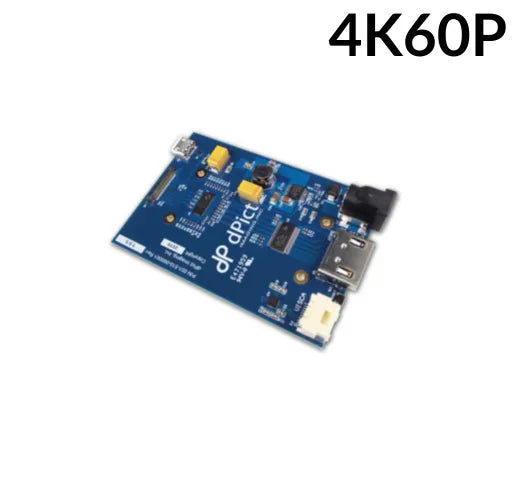

dPict Imaging DP-800H HDMI Interface Boards for Sony FCB-ER9500 & FCB-ER8530 4K Block Cameras

DP-800H Spec Sheet

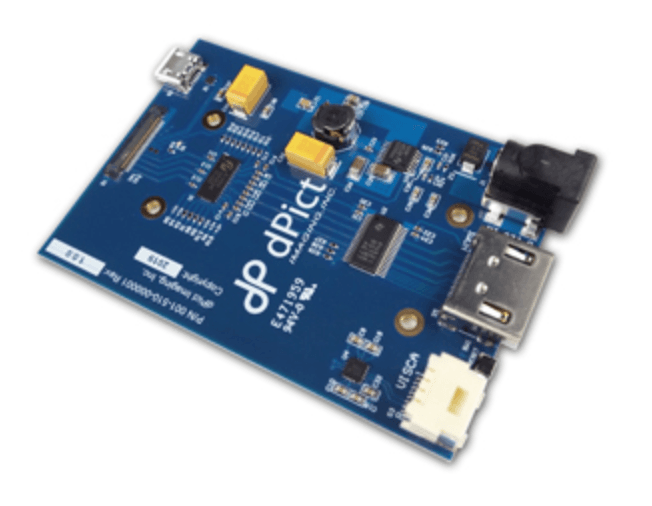

The dPict Imaging DP-800H HDMI Interface Board is designed for high-performance integration with Sony FCB-ER9500 and FCB-ER8530 4K block cameras. It supports HDMI 2.0 output with resolutions up to 3840 × 2160 at 29.97p, as well as Full HD and HD formats. Key features include automatic resolution detection, USB and VISCA camera control, and a compact 3.00" x 2.00" design. With a KEL 30-pin IDC connector, HDMI Type A, and Micro USB for connectivity, the DP-800H enables seamless integration in industrial and OEM applications.

Built to withstand demanding environments, the DP-800H operates from 0°C to 70°C with 5% to 95% relative humidity. It provides stable power through a 5.5mm barrel input and offers robust functionality for machine vision, robotics, automated inspection, and high-definition surveillance. This interface board is ideal for custom camera setups, delivering reliable video output and full camera control for a wide range of industrial and surveillance applications.

Features:

• HDMI 2.0 Output: Supports up to 3840 × 2160 (4K UHD) at 29.97p, Full HD, and HD resolutions.
• Camera Control: USB and VISCA support for full camera control (zoom, focus, exposure).
• Automatic Resolution Detection: Adapts to Sony FCB-ER9500 & FCB-ER8530 block cameras.
• Compact Design: 3.00" x 2.00" form factor, ideal for space-constrained applications.
• Durable Connectivity: KEL 30-pin IDC connector, HDMI Type A, Micro USB, and 5.5mm barrel power input.
• Wide Operating Range: Operates from 0°C to 70°C, with 5% to 95% relative humidity.

Applications:

• Industrial Machine Vision
• Robotics Vision Systems
• Surveillance Systems
• OEM Camera Integration
• Automated Inspection
