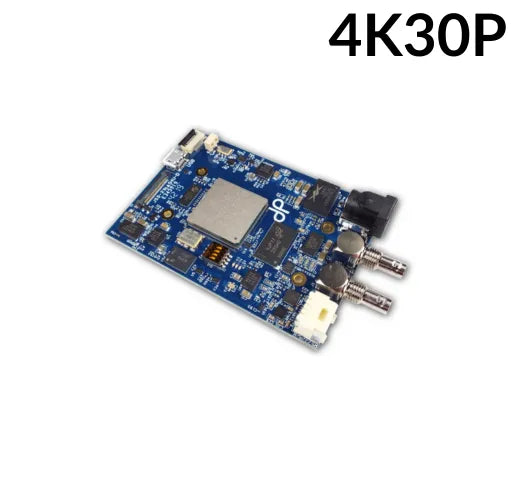

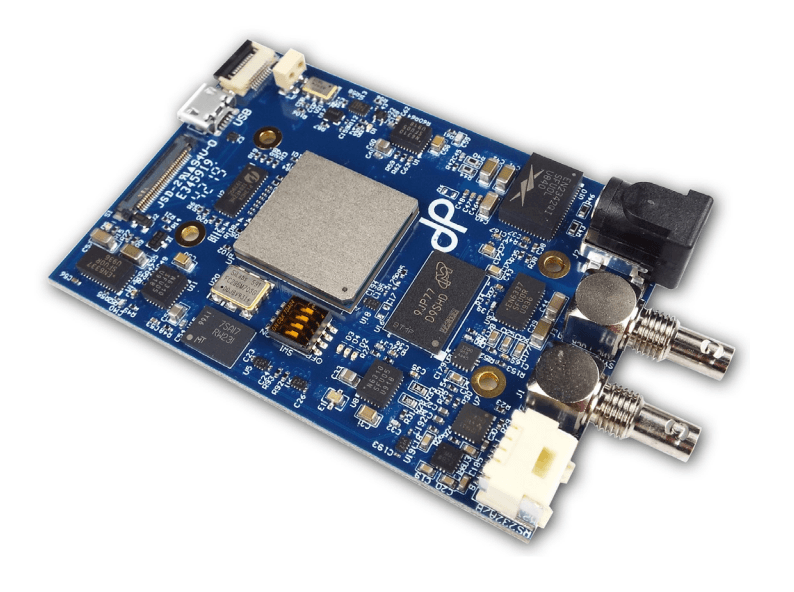

dPict Imaging DP-800S 4K to SDI Sony Interface Board for Sony FCB-ER9500 & FCB-ER8530 4K Block Cameras
dPict Imaging DP-800S 4K to SDI Sony Interface Board for Sony FCB-ER9500 & FCB-ER8530 4K Block Cameras
Couldn't load pickup availability
DP-800S Spec Sheet
The dPict Imaging DP-800S Interface Board delivers exceptional 4K video integration for Sony FCB-ER9500 and FCB-ER8530 block cameras. Designed for high-speed, low-latency video transmission, this advanced FPGA-based interface board converts HDMI signals to SDI with support for 6G-SDI output, ensuring optimal performance in demanding industrial and machine vision applications.
The DP-800S supports real-time video overlays, allowing the integration of crucial telemetry data or on-screen graphics. With automatic resolution detection, it seamlessly adjusts to varying video formats, ensuring smooth operation in environments with diverse camera feeds. Equipped with power, USB, and VISCA support, this interface offers full camera control, making it an ideal solution for applications requiring precise, high-quality video integration.
Features:
- HDMI to SDI Conversion: Outputs 6G-SDI Level A/B over a single BNC.
- FPGA-based Design: High-speed, low-latency video data transmission with advanced signal conditioning and clock data recovery.
- Real-Time Text/Graphics Overlay: Superimpose important telemetry or custom graphics onto the video feed.
- Full Camera Integration: Provides power, USB, and VISCA control for comprehensive camera functionality.
- Automatic Resolution Detection: Ensures compatibility with a variety of video formats, including 4K and Full HD.
- On-board Frame Buffer: Guarantees smooth video playback with minimal delays.
Applications:
- Industrial Imaging
- Robotics & Automation
- Security & Surveillance
- Medical & Aerospace Imaging
- Traffic Management
SDI Resolution Support
QFHD
- 3840 × 2160 29.97p
- 3840 × 2160 25p
- 3840 × 2160 23.98p
FHD
- 1920 × 1080 59.94p
- 1920 × 1080 50p
- 1920 × 1080 59.94i
- 1920 × 1080 50i
- 1280 × 720 59.94p
- 1280 × 720 50p
- 1280 × 720 23.98p
Physical and Environmental
- 3.00"(length) x 2.00" (height)
- Operating temperature: 0° C to 70° C
- Relative humidity: 5% up to 95% non-condensing
- KEL 30-pin IDC connector (Sony interface)
- SMB Connector (SDI Output)
- Micro USB
- 2.2mm Barrel (Power)
