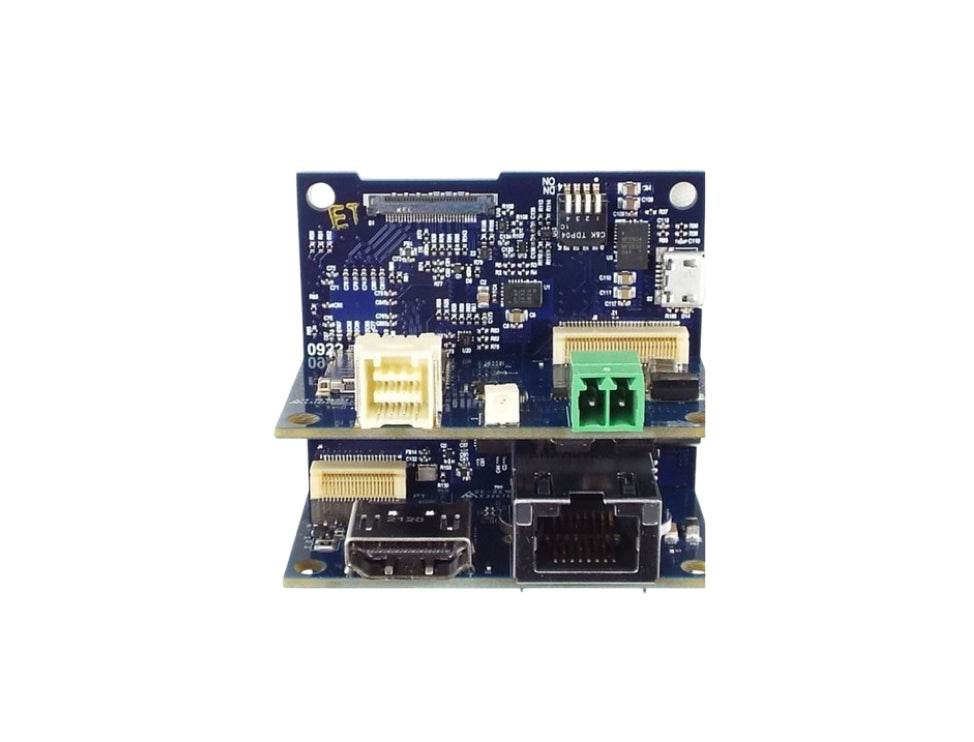

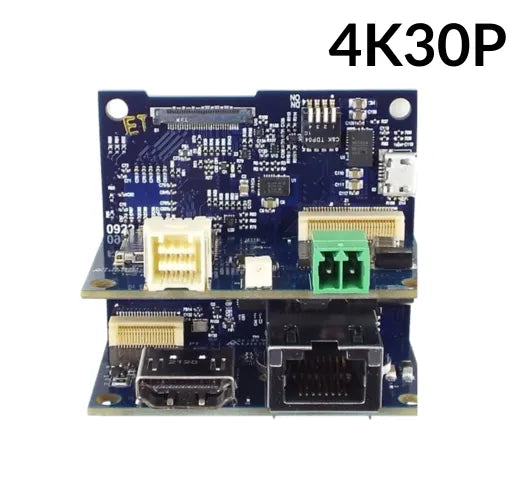

dPict Imaging DP-810 4K Video IP Encoder Module for Sony FCB-ER9500 & FCB-ER8530 4K Block Cameras

dPict Imaging DP-810 4K Video IP Encoder Module for Sony FCB-ER9500 & FCB-ER8530 4K Block Cameras

SKU: DP-810
Tax included.

DP-810 Spec Sheet

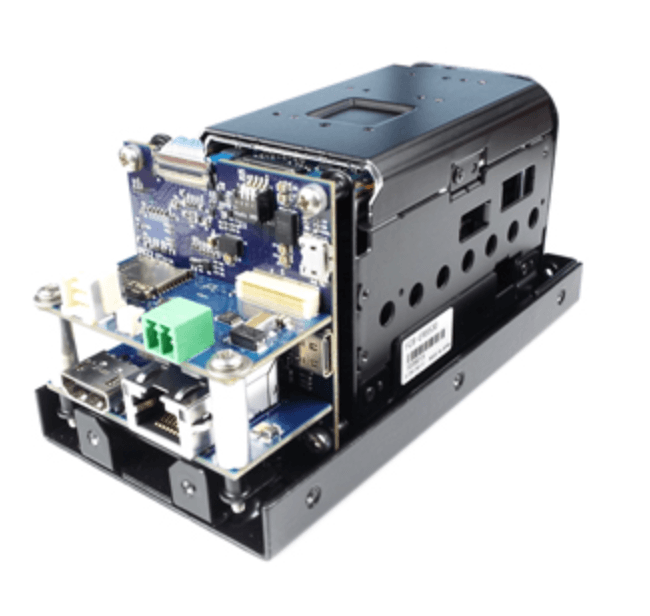

Unlock powerful, high-quality video encoding with the dPict Imaging DP-810 4K Video IP Encoder Module, engineered for seamless integration with Sony FCB-ER9500 and FCB-ER8530 4K block cameras. This advanced encoder supports 4K30p HDMI input, H.265/H.264 real-time video compression, and offers both Ethernet and 802.11ac WiFi transmission for versatile connectivity. Powered by a Qualcomm Snapdragon 2.2 GHz 8-core ARM Cortex A53 processor, the DP-810 provides exceptional video performance for industrial, machine vision, and surveillance applications.

Designed for easy integration, the module supports remote configuration via HTTP/HTTPS, and its comprehensive I/O options, including VISCA serial control, USB, and micro-SD card interface, provide full flexibility. The DP-810 also supports ONVIF Profile S and includes an OEM web services API, making it ideal for automated quality control, high-resolution surveillance, and real-time video analysis. With robust physical specifications and environmental resilience, it operates efficiently in a variety of demanding industrial settings, ensuring a reliable solution for advanced video monitoring and inspection systems.

Features:

  • 4K30p HDMI video input and output
  • Supports H.265/H.264 video compression standards
  • Qualcomm Snapdragon 2.2 GHz 8-core ARM Cortex A53 processor
  • Ethernet (10/100/1000) and 802.11ac WiFi connectivity
  • Remote configuration via HTTP/HTTPS and web services API
  • Compatible with Sony FCB-ER9500, FCB-ER8530, and other Sony block cameras
  • Physical power, USB, and serial/VISCA interfaces for comprehensive camera control
  • Environmental resilience with operating temperature range from 0° C to 70° C
  • Compact form factor: 57mm (height) x 54mm (width)

Applications:

  • Automated quality control
  • High-resolution surveillance and monitoring
  • Real-time video analysis and processing
  • Industrial machine vision and inspection systems
  • Remote video management and streaming solutions



Video Processing
  • Supports HDMI Inputs up to 4K30p
  • Real-Time H.265/H.264 Video Encoding
  • Native Support for Sony Block Cameras
  • HDMI Video Output
Sony Block Support
  • FCB-ES8230
  • FCB-ER8300
  • FCB-ER8530
  • FCB-ER8550
  • FCB-EW9500
  • FCB-ER9500
System
  • 10/100/1000 Ethernet
  • Integrated 802.11ac WiFi
  • 2 GB System Memory
  • 16 GB Flash Memory
  • Bluetooth 4.2
  • Micro-SD Card Interface
  • VISCA Serial Interface
  • Micro USB Interface
Physical Environment
  • 57mm (height) x 54mm (width)
  • Operating temperature: 0° C to 70° C
  • Relative humidity: 5% up to 95% non-condensing
  • KEL 30-pin IDC connector (Sony interface)
  • RJ45 Connector (Ethernet/VISCA)
  • HDMI Connector (Video Out)
  • Micro SD Card Socket (Recording)
  • 2-Pin Phoenix Connector (Power)
  • Molex 503148 Connector (Serial/VISCA)
  • Micro USB (Camera Firmware)
