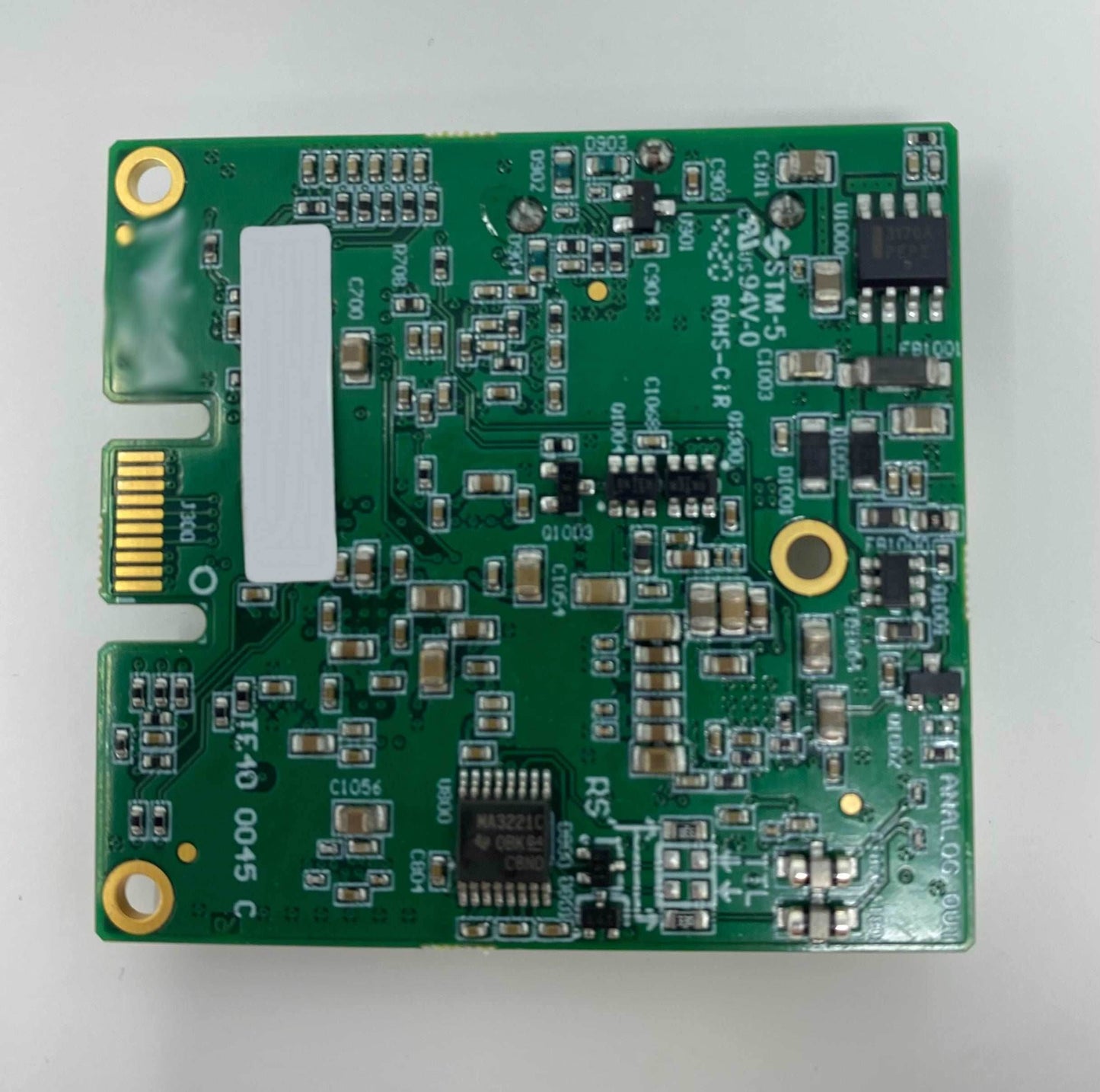

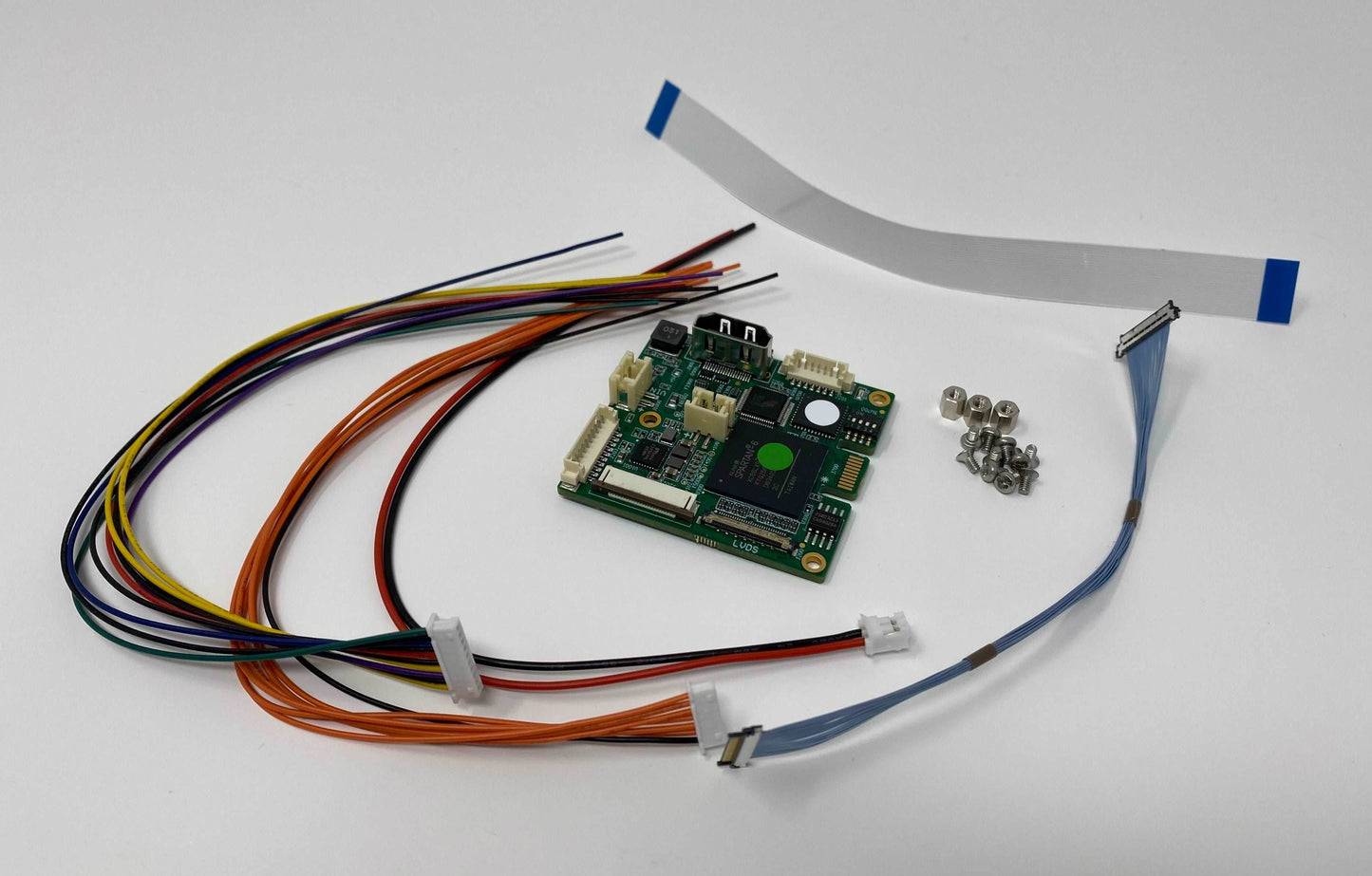

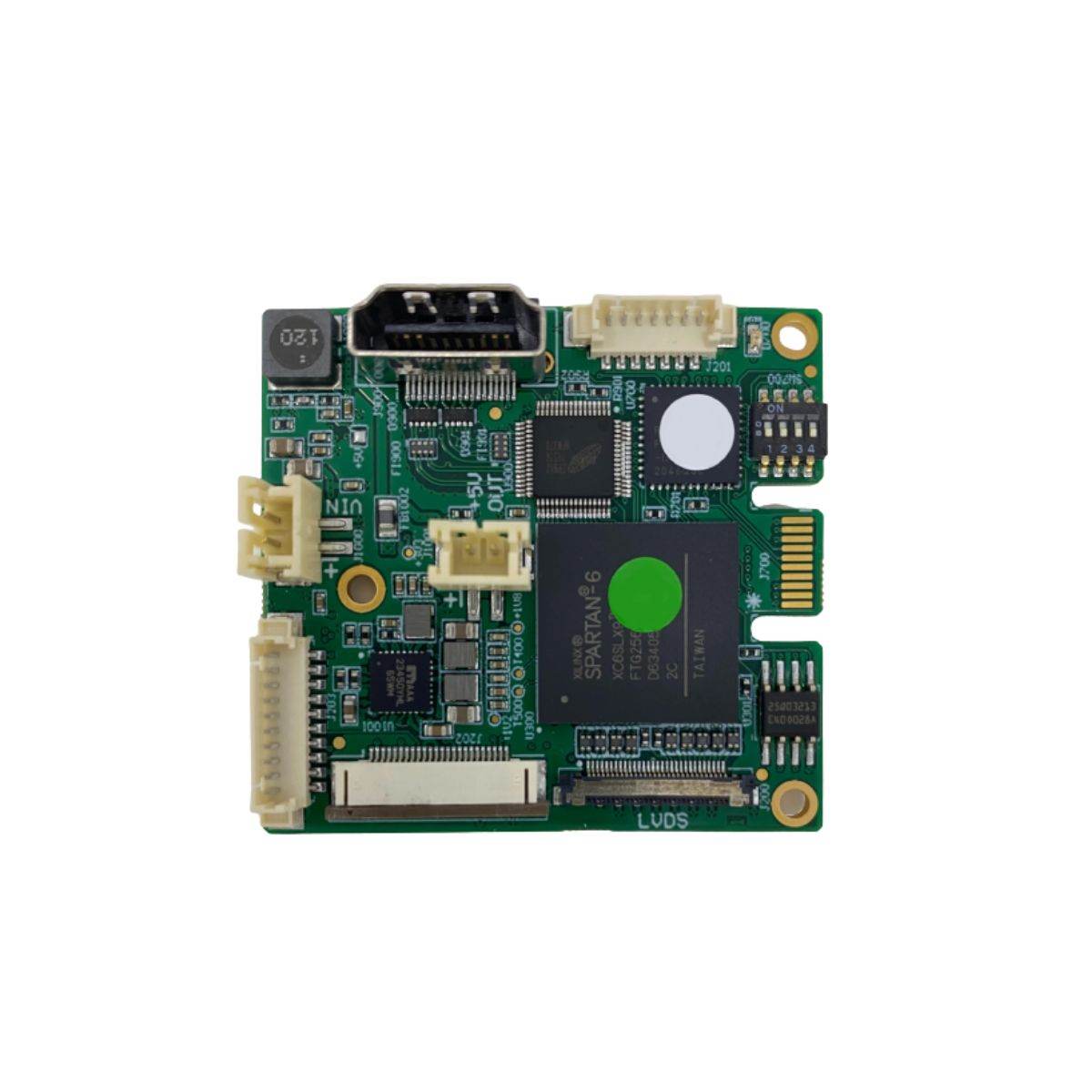

HDMI Interface Boards for Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV HD Block Cameras

HDMI Interface Boards for Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV HD Block Cameras

SKU: HDMI Interface Board
Tax included.

HDMI Interface Board Spec Sheet

The HDMI Interface Board is an advanced solution for seamlessly transmitting high-quality video from Sony FCB-EV9520L, FCB-EV9500L, and Tamron MP3010M-EV HD Block Cameras. Designed for professional applications in broadcasting, surveillance, industrial automation, medical imaging, and more, this board supports both HDMI digital and analog (Y, Pb, Pr) video output formats, offering versatile connectivity options for diverse systems.

With support for up to 1080p60 resolution, it delivers crisp, high-definition video for flawless performance in live streaming, video conferencing, and other HD applications. The module automatically detects connected cameras for quick and easy setup, while DIP switches or VISCA FCB control software allow for full customization of video output configurations. Powering the module is flexible, with a voltage range of 6V to 12V DC, and a 5V auxiliary output to power additional peripherals.

The HDMI module offers TTL or RS232-level VISCA serial control for remote camera operation, and its compact form (48mm x 45mm x 17mm) ensures easy integration into various setups. Built to operate in challenging environments, it supports a temperature range from 0°C to 60°C, adheres to EMC FCC Part 15 regulations, and features a UL 94 V0-rated PCB for durability. Whether for industrial, medical, or entertainment use, this module is a reliable, high-performance solution for HD video transmission.

Features:

  • Compatible with Sony FCB-EV9520L, FCB-EV9500L, and Tamron MP3010M-EV HD Block Cameras
  • HDMI 1.3 digital and Y, Pb, Pr analog video outputs (75 ohms, 1V - VBS)
  • Supports up to 1080p60 video resolution
  • Automatic camera detection for easy setup
  • VISCA control interface with TTL or RS232 serial control
  • Customizable video output via DIP switches or VISCA FCB control software
  • Flexible power supply: 6V to 12V DC, 6W (5V auxiliary output for peripherals)
  • Compact size: 48mm x 45mm x 17mm
  • Operating temperature range: 0°C to 60°C; storage range: -20°C to 60°C
  • EMC FCC Part 15 compliant, UL 94 V0-rated PCB for durability and safety

Applications:

  • Broadcasting and live streaming
  • Surveillance and security systems
  • Video conferencing
  • Industrial automation
  • Medical imaging
  • Education and training environments


Digital video output HDMI 1.3
Analog video output Y, Pb , Pr 75 ohms, 1V - VBS (not with SE 600)
Digital Video Connector HDMI Type A
Video Output Standard Configuration VISCA - Default: RS232 level – TTL level (Option)
Video Output Configuration DIP switches or VISCA FCB control software
Auxiliary Power Output 5V, 1A
Power Supply 6 to 12 VDC, 6 W (including camera) 5V for SE600
Environmental 0°C to 60°C
Storage -20°C to 60°C
Regulation EMC FCC part 15, PCB : UL 94 V0
Dimensions (mm) 48 (H)x 45 (W)x 17 (D)
