IONODES ATOMAS-DUO-HDMI Multi-Purpose 4K IP Video Encoder Module for Sony FCB-ER9500 & FCB-ER8530 4K Block Cameras
IONODES ATOMAS-DUO-HDMI Multi-Purpose 4K IP Video Encoder Module for Sony FCB-ER9500 & FCB-ER8530 4K Block Cameras
Couldn't load pickup availability
ATOMAS-DUO-HDMI Spec Sheet

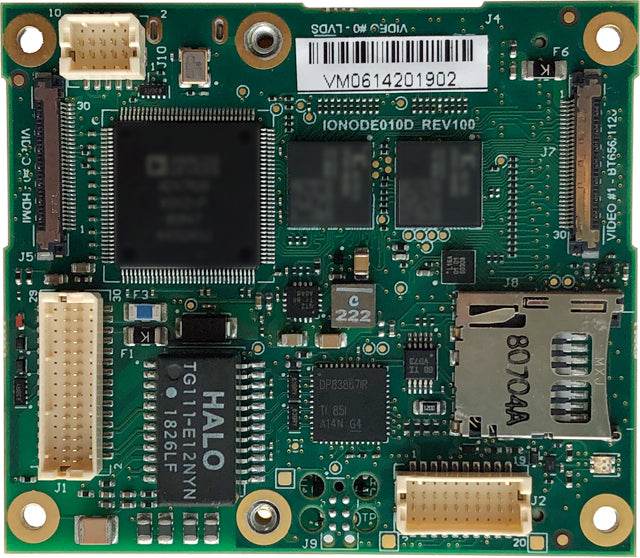

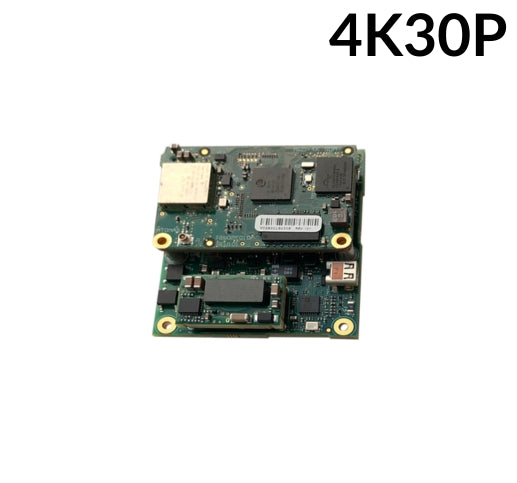

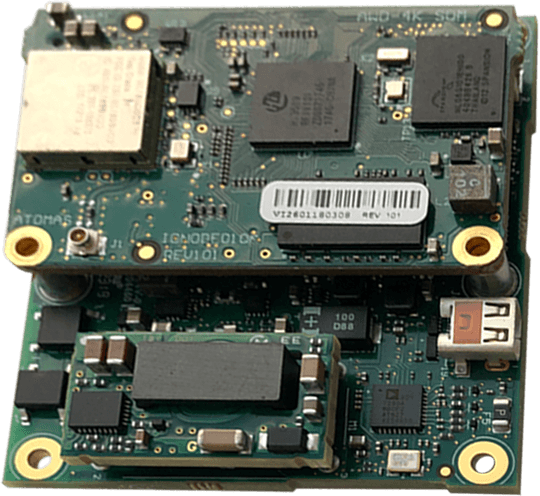

The IONODES ATOMAS-DUO-HDMI is a high-performance 4K IP video encoder module, designed for seamless integration with Sony FCB-ER9500 & FCB-ER8530 4K Block Cameras. This compact and versatile platform supports dual camera setups and offers a wide range of features tailored to advanced video surveillance, security, and imaging applications.
Key features include support for both HDMI and multi-purpose secondary video inputs (compatible with FLIR Boson/QuadSD modules), and a broad selection of video compression formats including H.265 (HEVC), H.264 (MPEG-4 AVC), and MJPEG, delivering up to 4K resolution at 30 FPS. The encoder also supports full PTZ control (VISCA, etc.) and Onvif Profile T, making it ideal for robotics, UAV/military, and thermal/visible camera systems.
Features:
- Supports 4K HDMI video input (Sony FCB-ER9500 & FCB-ER8530)
- Secondary video input for digital/analog cameras (e.g., thermal cameras)
- Video compression: H.265 (HEVC), H.264, MJPEG
- Max resolution: 4K UHD (3840x2160) at 30 FPS, 1080p at 30 FPS
- Full PTZ control (VISCA, custom commands, preset tours)
- Onvif Profile T support
- 7VDC to 17VDC power input, optional PoE (802.3af)
- 10/100/1000 Base-T Ethernet, optional Wi-Fi + Bluetooth
- Dual I/O inputs, audio in/out, PWM GPIO, and serial ports
- Embedded Linux OS with real-time clock and temperature sensor
- 1GB NAND flash, microSD external storage
- 120ms low video latency
- Auto-boot, temperature monitoring, and software watchdog
- Email notifications and customizable event triggers
Applications:
- Video Surveillance & Security Systems
- Advanced PTZ & Thermal/Visible Camera Systems
- UAV (Unmanned Aerial Vehicles) & Military Applications
- Robotics & Automated Systems
- Real-time Video Streaming & Monitoring
- Industrial & Commercial Security Solutions
| Network | 1 x 10/100/1000 Base-T Ethernet (GbE) * optional Wi-Fi + Bluetooth |
| I/O & Audio | 2 x I/O Inputs, 1 x I/O Output 3 x PWM GPIO 2 x Serial Ports (UART + RS422/485) 1 x i2c for external board control On-board microSD socket 2-ch Audio Line In + 1-ch Audio Line Out |
| Primary Video In | 30-pin HDMI interface (KEL USL00-30L) *Matches SONY specifications |
| Secondary Video In | 30-pin multi-purpose interface (KEL USL00-30L) * Supports multiple digital video formats * Compatible with FLIR Boson / QuadSD modules or, Composite video input interface |
| Other | 3.3 VDC power output (max. 100mA) 5 VDC power output (max. 500mA) |
| Video Resolution | Supports sensor inputs at up to 4K UHD |
| Video Compression | H.265 (HEVC) / H.264 (MPEG-4 AVC) / MJPEG |
| Video Latency | Can reach less than 120ms latency |
| Image Processing | 2D/3D noise reduction Edge enhancement frame difference motion detection Privacy Mask |
| Operating System | Embedded Linux |
| HW Watchdog | Auto-boot, OS supervision, temperature monitoring, software monitoring |
| Other | Realtime Clock (RTC) & Temperature Sensor |
| Internal Storage | 1GB NAND Flash |
| External Storage | External Storage via microSD |
| Web GUI | System configuration and maintenance Live video and PTZ control Cross-browser support Smartphone and tablet support |
| Progamming Interface | ION API, ONVIF Profile T, Genetic API |
| System Monitoring | Video signal, storage medium, temperature, memory, CPU, network |
| Media Recording | Recorded audio/video to SD/MMC |
| Software Update | Fault-tolerant, remote accessible |
| Alarm Triggers | I/O input, motion detection, system monitor |
| PTZ Control | Full PTZ implementation Can interface to any PTZ controller (i2c, UART) Programmable preset tours User-defined custom commands |
| Other Features | Email notifications (on event or schedule) Text overlay OEM rebranding / customization |
| Dimensions | 52mm x 60mm x 8mm (WxDxH) |
| Power Input | 7VDC to 12VDC (with VBAT for RTC) Optional add-on POE module (802.3af compliant) that can extract up to 12W of power from the Eth line |
| Operating Temperature | Dependent on customer mechanical design *Most components are -40C to 85C (Tcase) |
| COO | Designed and manufactured in China |
| Warranty | 2 Years Standard |
