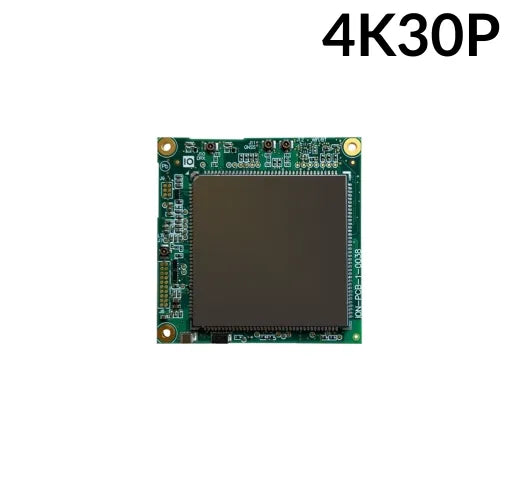

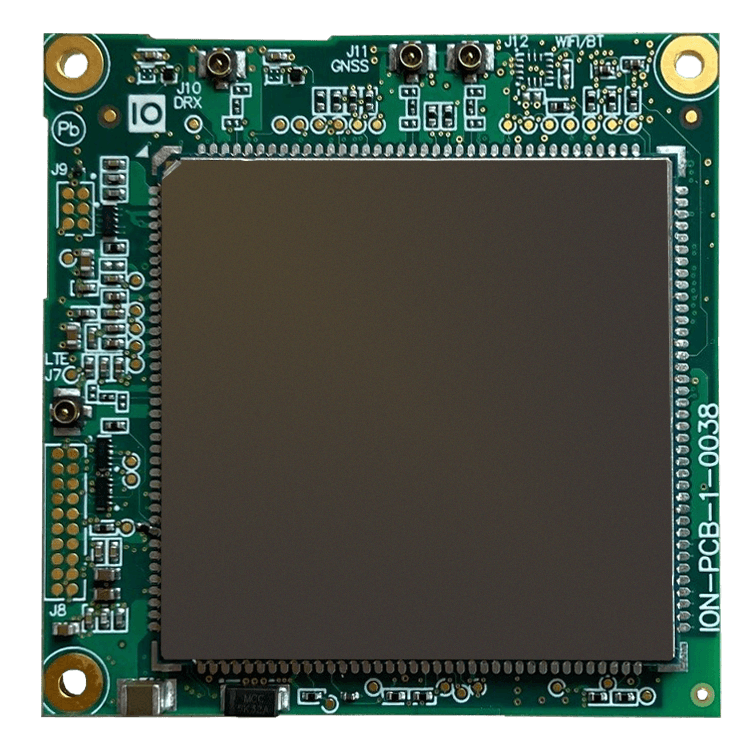

IONODES ATOMAS-IOT-DUAL Multi-Camera IoT Video Encoder Module for Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV HD Block Cameras
IONODES ATOMAS-IOT-DUAL Multi-Camera IoT Video Encoder Module for Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV HD Block Cameras
Couldn't load pickup availability
ATOMAS-IOT-DUAL Spec Sheet
The IONODES ATOMAS-IOT-DUAL is a high-performance multi-camera IoT video encoder module designed for Sony FCB-EV9520L, FCB-EV9500L, and Tamron MP3010M-EV block cameras. Supporting LVDS, MIPI, and digital video inputs, it enables simultaneous dual-camera streaming with HEVC/H.264 compression at up to 4K30 (single input) or 2K30 per channel (dual input). Onvif Profile G/S/T compliance ensures seamless IP integration, while advanced image processing features like 2D/3D noise reduction, edge enhancement, and motion detection enhance video quality.
Built for IoT and edge applications, it includes Ethernet, optional 4G LTE, Wi-Fi, GPS, Bluetooth, CAN Bus, and a 9-axis IMU. Local microSD recording, real-time system monitoring, HTTP/HTTPS management, and low-latency video streaming make it ideal for UAVs, robotics, PTZ cameras, and surveillance. With a Qualcomm Snapdragon processor, fault-tolerant software updates, and OEM customization options, the ATOMAS-IOT-DUAL delivers powerful, compact, and intelligent video encoding for advanced security and industrial applications.
Features:
- Dual simultaneous camera inputs (LVDS, MIPI, Digital)
- HEVC/H.264/MJPEG video compression, up to 4K30 (single) / 2K30 (dual)
- Onvif Profile G/S/T for seamless IP integration
- Advanced image processing: 2D/3D noise reduction, edge enhancement, motion detection
- Ultra-low latency (<120ms) streaming
- Local microSD recording & fault-tolerant software updates
- IoT connectivity: Ethernet, optional 4G LTE, Wi-Fi, GPS, Bluetooth, CAN Bus, 9-axis IMU
- Qualcomm Snapdragon processor with embedded Linux/Android OS
- Robust system monitoring & secure remote management (HTTP/HTTPS, SNMP, ION API)
- Compact 58mm x 58mm form factor, 9VDC-15VDC power input
Applications:
- UAVs & military surveillance systems
- Advanced PTZ and AI-powered camera solutions
- Thermal & visible camera integrations
- Robotics vision and automation
- Smart city & industrial monitoring
- Custom OEM security and IoT solutions
| Network | 1 x 10/100 Base-T Ethernet 3G / 4G LTE (optional) Wi-Fi: 2.4G/5GHz, 802.11 a/b/g/n/ac (optional) Bluetooth: BT 4.2LE (optional) |
| I/O & Audio | 2 x Dry Contact Inputs, 1 x I/O Output Pin 3 x PWM GPIO 1 x RS-485, 1 x UART (TTL), 1 x I2C 1 x Board Reset Signal 4 x uFL Antenna Connectors (LTE, Wi-Fi, BT, GPS) 1 x VRTC (2.0V to 3.25V) 1 x 3.3V Out (max. 0.1A), 1 x 5V Out (max. 0.5A) 2-ch Audio Line In / 2-ch Audio Line Out 1 x CAN Bus (optional) |
| Video Input 1 | LVDS interface *Matches SONY FCB specifications |
| Video Input 2 | Digital video interface *For use with compatible IONODES video adapter boards |
| Video Input 3 | 4-lane MIPI CSI-2 video interface *For use with compatible video adapter boards |
| Video Resolution | Supports sensor inputs at up to 24MP |
| Video Encoding | HEVC / H.264 / MJPEG (up to 4K30FPS) |
| Video Latency | Can reach less than 120ms latency |
| Image Processing | 2D/3D noise reduction Edge enhancement Frame difference motion detection Privacy masks |
| Processors | Qualcomm Snapdragon Processor Supervisory MCU for fault-protection |
| Operating System | Embedded Linux / Android |
| HW Watchdog | Auto-boot, OS supervision, temperature monitoring, software monitoring |
| Other | Realtime Clock (RTC) & Temperature Sensor 9-axis IMU (optional) |
| Internal Storage | 16GB eMMC |
| External Storage | External storage via microSD *Requires optional microSD / SIM combo adapter board |
| Networking | IPv4/v6, UDP, TCP, IGMP, ARP, DHCP, DNS, NTP |
| Streaming | RTSP, RTP, HTTP, Web Sockets |
| Management | HTTP, HTTPS, Bonjour, ONVIF, ION API, SNMP, SMTP |
| Security | Basic / Digest Authentication, SSL |
| Web GUI | System configuration and maintenance Live video and PTZ control Cross-browser support Smartphone and tablet support |
| Programming Interface | ION API, ONVIF Profile G,S,T |
| System Monitoring | Video signal, storage medium, temperature, memory, CPU, network |
| Media Recording | Recorded ASF audio/video to SD/MMC |
| Software Update | Fault-tolerant, remote accessible |
| Alarm Triggers | I/O input, motion detection, system monitor |
| PTZ Control | Can interface to PTZ controller (UART) Programmable preset tours User-defined custom commands |
| Other Features | Email notifications (on event or schedule) Text overlay OEM rebranding / customization |

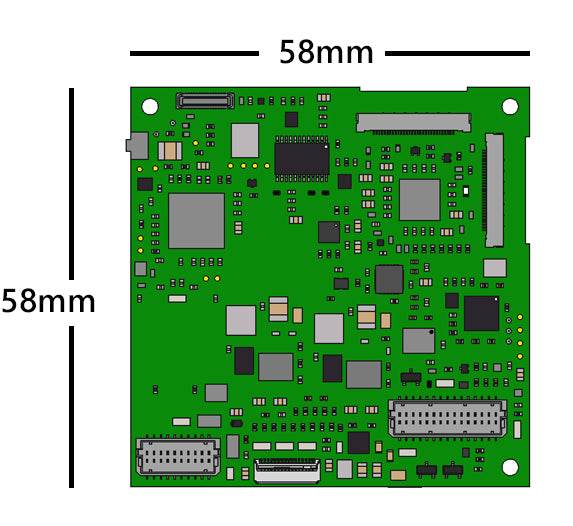

| Dimensions | 58 mm x 58 mm |
| Power Input | 9VDC to 15VDC |
| Operating Temp. | Dependent on customer mechanical design *All components are -20C to 70C (Tcase) |
| Warranty | 2 Years Standard |
