IONODES ATOMAS-MICRO-CNCT Full HD Parallel to IP Video System on Encoder Module for Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV HD Block Cameras
IONODES ATOMAS-MICRO-CNCT Full HD Parallel to IP Video System on Encoder Module for Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV HD Block Cameras
Couldn't load pickup availability
ATOMAS-MICRO-CNCT Spec Sheet

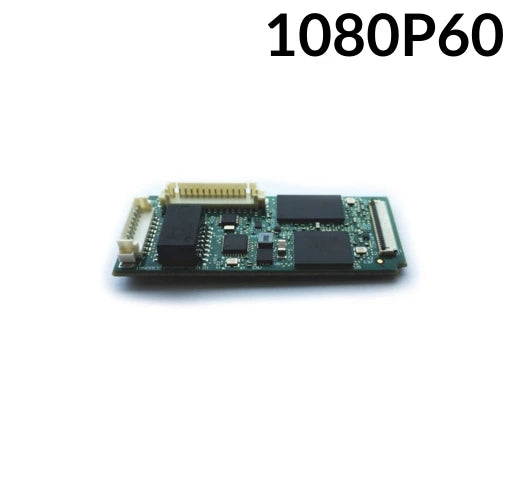

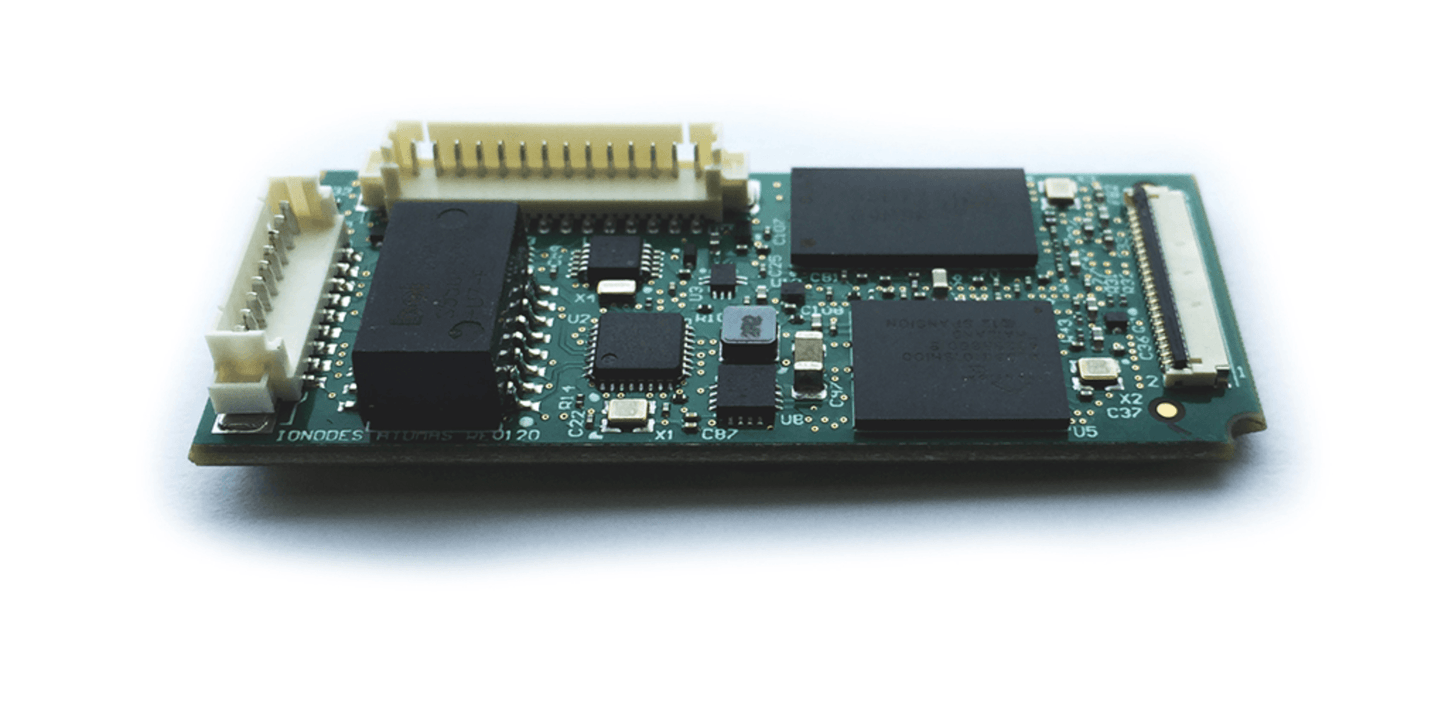

The IONODES ATOMAS-MICRO-CNCT Full HD Parallel to IP Video System Encoder Module is engineered for seamless integration with Sony FCB-EV9520L, FCB-EV9500L, and Tamron MP3010M-EV HD block cameras. This compact encoder module supports 1080p60 IP video streaming with advanced H.264 video compression, ensuring high-quality video output in industrial, machine vision, and security applications.
Key features include a versatile 45-pin parallel video interface, which matches the SONY FCB Micro specifications, and supports resolutions up to 12 megapixels. The module offers low-latency streaming with performance rates of up to Full HD 1080p at 60 fps, making it ideal for real-time video applications. The onboard RTC, HW watchdog, and support for a wide 5.5VDC to 14VDC power input ensure reliability in harsh environments.
The IONODES ATOMAS-MICRO-CNCT also supports local SD/MMC storage for video recording, ensuring flexibility in data storage and management. With comprehensive network features like RTSP, RTP, and ONVIF Profile S compliance, the module integrates effortlessly with existing network infrastructures. Enhanced integration options such as PoE support, HD/3G-SDI, and external i2c control make this an ideal solution for custom OEM camera systems.
Features:
- 1080p60 IP video streaming with H.264/MPEG-4 AVC compression
- Supports resolutions up to 12 megapixels
- Low latency video streaming (under 80ms)
- 45-pin parallel video interface compatible with Sony FCB Micro
- Local SD/MMC storage for video recording
- PoE support (optional via sister board)
- ONVIF Profile S compliance for easy integration
- 5.5VDC to 14VDC power input range
- Web-based admin interface with cross-browser support
- Full Pelco D PTZ control and programmable preset tours
- HW watchdog and real-time clock for system reliability
- External i2c control for advanced customization
- Email notifications, text overlay, and OEM rebranding options
Applications:
- OEM camera system integration
- Industrial video monitoring and surveillance
- Machine vision and quality control
- Security and surveillance camera systems
- Custom HD camera solutions with advanced control
- Real-time video streaming for security, surveillance, and automation
| Network | 1 x 10/100 Base-T Ethernet |
| Video Interface | 45-pin parallel video interface * Parallel 16bit (YCbCr422) * Matches SONY FCB Micro specifications |
| Serial Port | 1 x UART * Software accessible * Interface possible to PTZ controlle |
| I/O | 2 x GPIO 1 x Board Reset Signal 1 x Dual Color Status LED Signal 1 x Mobile Host Storage Controller (SD/MMC) |
| Video Resolution | Supports sensor inputs at up to 12 megapixel |
| Video Compression | H.264/MPEG-4 AVC (up to high profile) MPEG4 Part 2 JPEG |
| Still Images | Still image capture at up to 12 megapixels |
| H.264 Performance | Total D1@390 fps or Full HD 1080p@65 fps Examples: 1 x 1080p60 fps + 1 x D1 @ 30 fps 2 x 1080p30 fps + 1 x D1 @ 30 fps (SONY FCB Micro limited to 1080p@30 fps |
| Video Latency | Can reach less than 80ms latency |
| Image Processing | Lens distortion correction Motion adaptive deinterlacing Arbitrary image resizing and scaling ratio 2D/3D noise reduction Edge enhancement Frame difference motion detection Privacy masks ROI based video compression |
| Operating System | Linux |
| HW Watchdog | Auto-boot, OS supervision, temperature monitoring, software monitoring |
| Other | Realtime Clock (RTC) |
| Internal | 1GB NAND Flash |
| External | External Storage via SD/MMC |
| Networking | IPv4/v6, UDP, TCP, IGMP, ARP, DHCP, DNS, NTP |
| Streaming | RTSP, RTP, HTTP, Web Socket |
| Management | HTTP, HTTPS, Bonjour, ONVIF, PSIA, ION API, SNMP, SMT |
| Security | Basic / Digest Authentication, SSL |
| Web GUI | System configuration and maintenance Live video and PTZ control Cross-browser support Smartphone and tablet support |
| Programming Interface | ION API, ONVIF Profile S |
| System Monotoring | Video signal, storage medium, temperature, memory, CPU, network |
| Media Recording | Recorded ASF audio/video to SD/MMC |
| Software Update | Fault-tolerant, remote accessible |
| Alarm Triggers | I/O input, motion detection, system monitor |
| PTZ Control | Full Pelco D implementation Can interface to PTZ controller (UART) Programmable preset tours User-defined custom command |
| Other Features | Email notifications (on event or schedule) Text overlay OEM rebranding / customization |

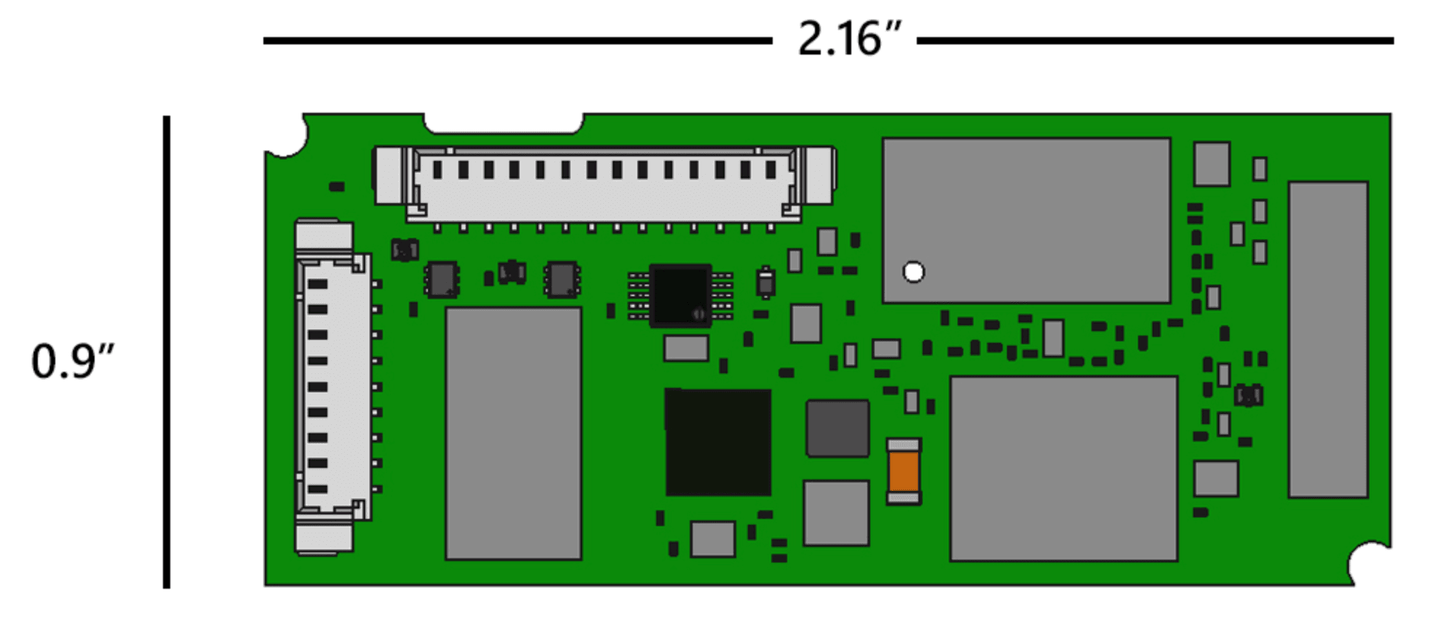

| Dimensions | 2.16 inch x 0.9 inch (main board) |
| Power Input | 5.5VDC to 14VDC PoE (option, via sister board) |
| Operating Temp. | Dependent on customer mechanical design * All components are -40C to 85C (Tcase) |
| Warranty | 2 Years Standard |
