IONODES ATOMAS-MICRO-HDSDI HD-SDI IP Video ATOMAS-MICRO Add-on Encoder Module for Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV HD Block Cameras

ATOMAS-MICRO-HDSDI Spec Sheet

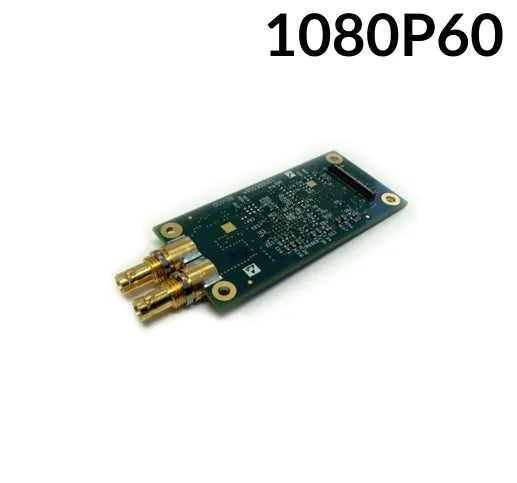

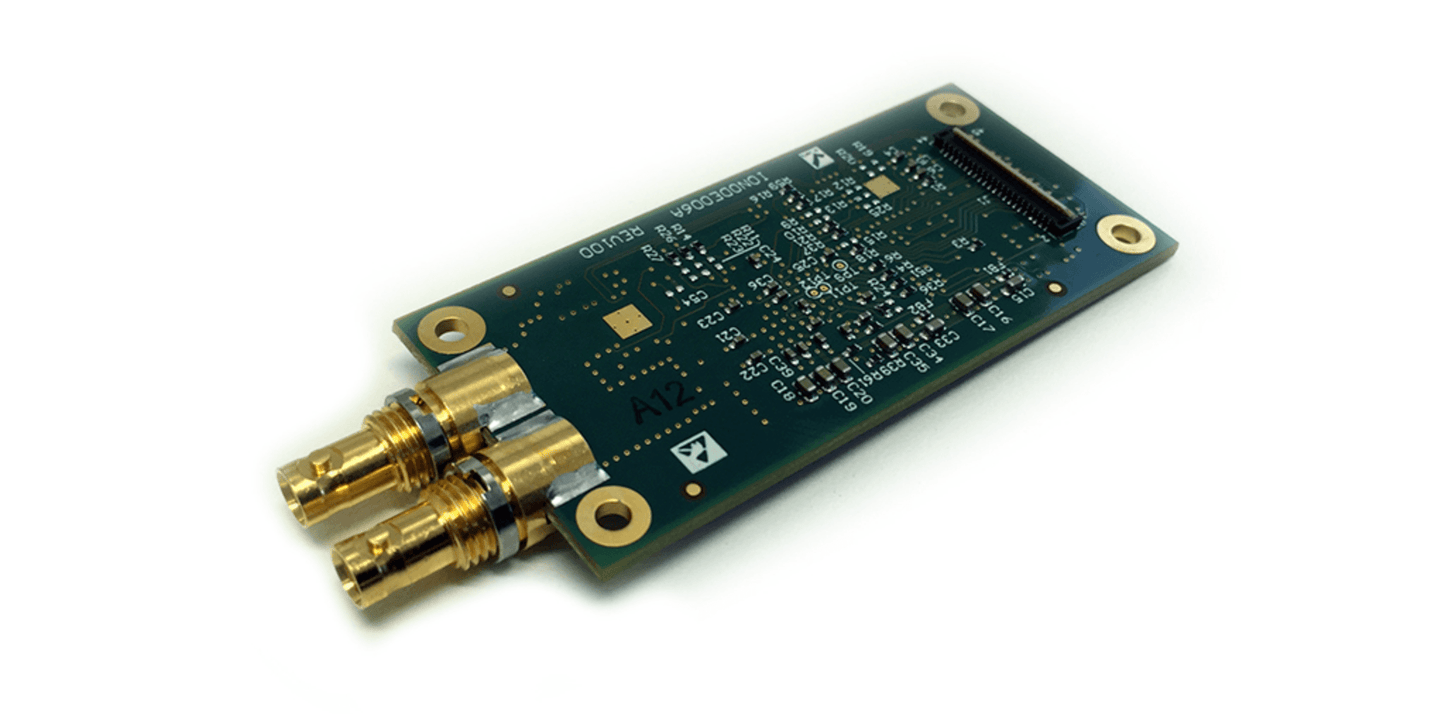

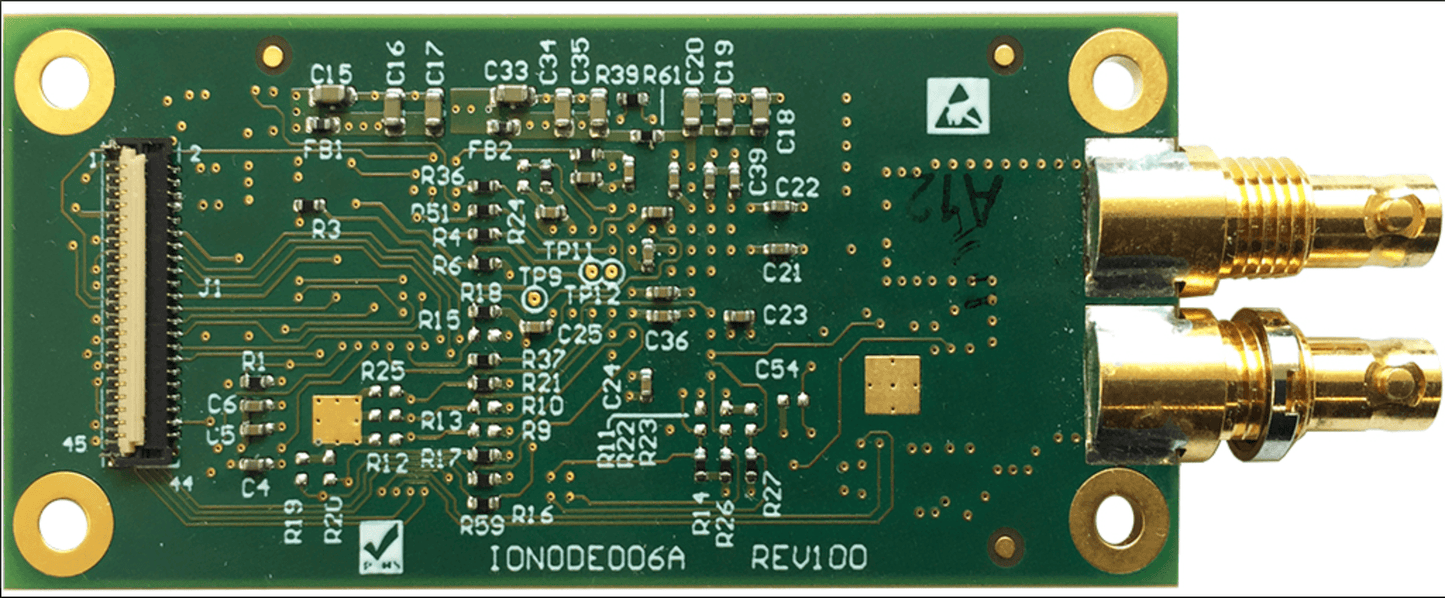

The IONODES ATOMAS-MICRO-HDSDI is a high-performance HD-SDI to IP video encoder module designed for Sony FCB-EV9520L, FCB-EV9500L, and Tamron MP3010M-EV HD Block Cameras. It supports up to 1080p60 resolution and converts HD-SDI video streams into IP for seamless integration with industrial, surveillance, and machine vision applications. Featuring HD-BNC connectors, an adaptive cable equalizer for stable transmission up to 440m, and Onvif Profile S compatibility, this compact module ensures reliable video streaming over IP networks. Operating in extreme temperatures from -40°C to 85°C with a low power consumption of 700mW, it delivers robust performance in demanding environments.

Engineered for flexibility, the ATOMAS-MICRO-HDSDI includes an HD-SDI loop-out, an integrated reclocker with low phase noise, and a board-to-board connector for direct integration with the ATOMAS-MICRO encoder platform. It supports SMPTE 425M, 424M, 292M, and 259M-C video standards, ensuring industry-wide compatibility. Its miniaturized design enables easy deployment in space-constrained installations, while its RoHS-compliant, lead-free construction meets environmental standards. Ideal for industrial monitoring, security, and machine vision applications, this module offers a reliable and scalable HD-SDI to IP conversion solution.

Features:

• HD-SDI to IP Conversion – Seamlessly converts HD-SDI video to IP for industrial and surveillance applications.
• High-Resolution Support – Supports up to 1080p60 and 720p60 for high-quality video streaming.
• Adaptive Cable Equalizer – Ensures stable transmission up to 440m with integrated reclocker.
• HD-SDI Loop-Out – Provides a direct video output for monitoring and flexibility.
• Onvif Profile S Compatibility – Enables seamless integration with VMS and network systems.
• Wide Operating Temperature – Functions reliably in extreme conditions from -40°C to 85°C.
• Low Power Consumption – Efficient 700mW power usage for optimized performance.
• Industry Standard Compliance – Supports SMPTE 425M, 424M, 292M, and 259M-C.

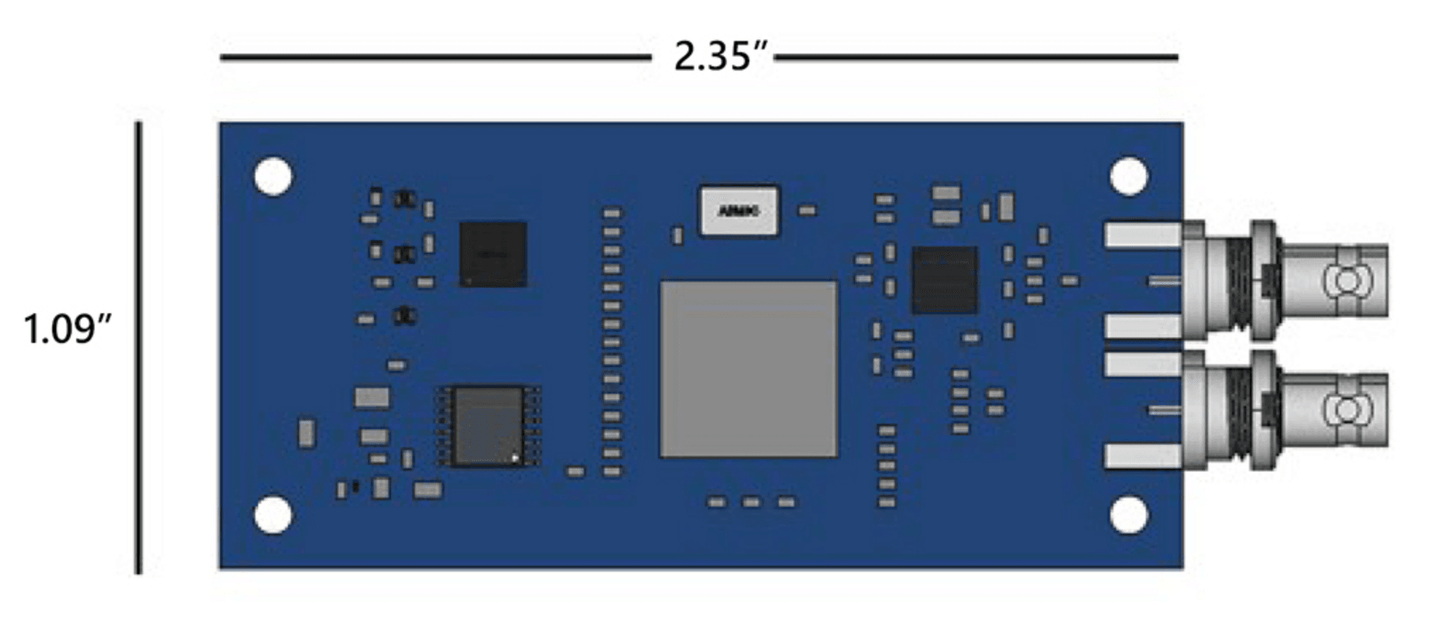

• Compact & Versatile Design – Miniaturized form factor with HD-BNC connectors for easy integration.
• Board-to-Board Connector – Directly interfaces with ATOMAS-MICRO encoder for expanded functionality.

Applications:

• Industrial Machine Vision
• Surveillance & Security
• Broadcast & Video Production
• Medical Imaging Systems
• Traffic & Transportation Monitoring
• Defense & Aerospace
