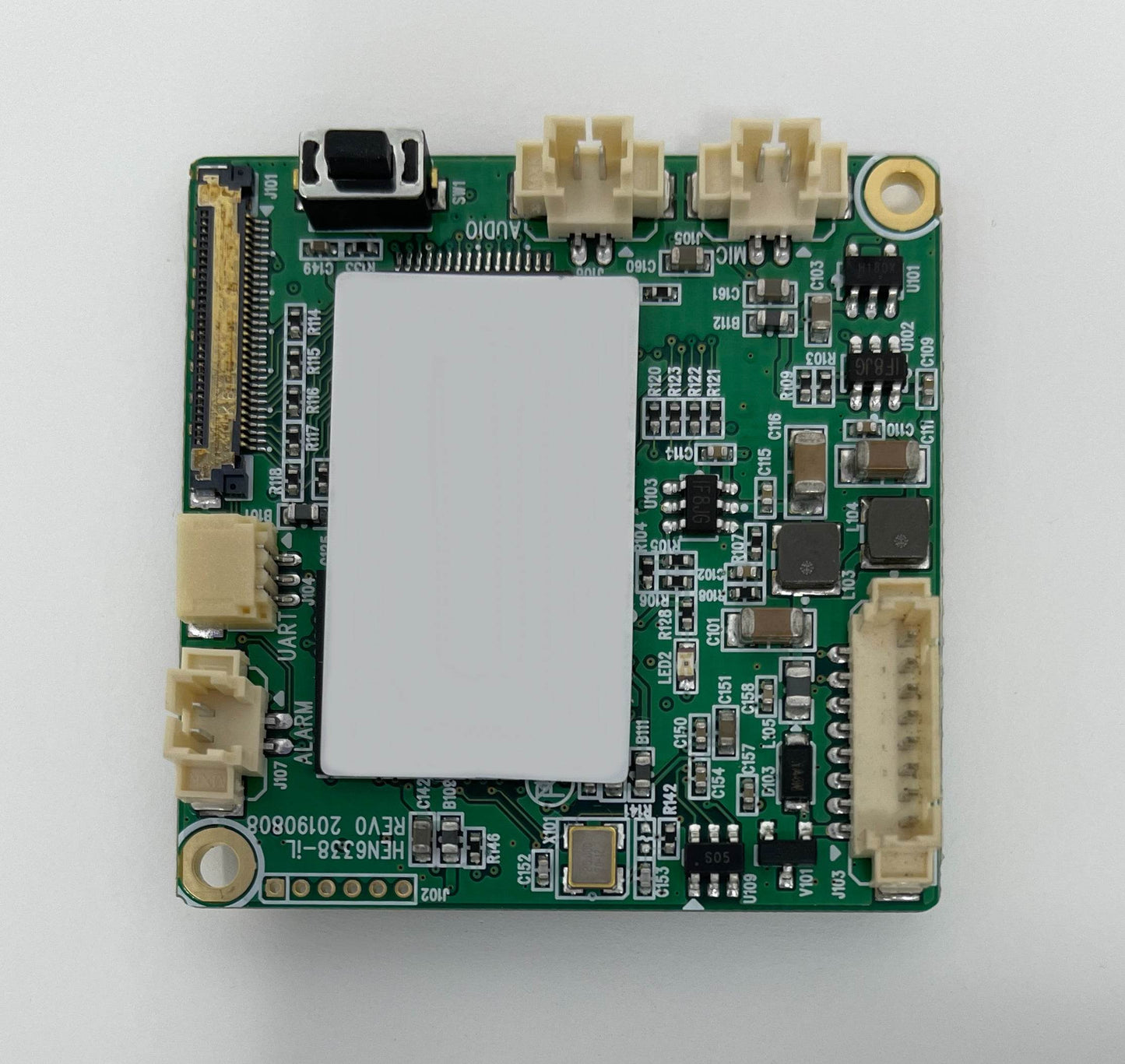

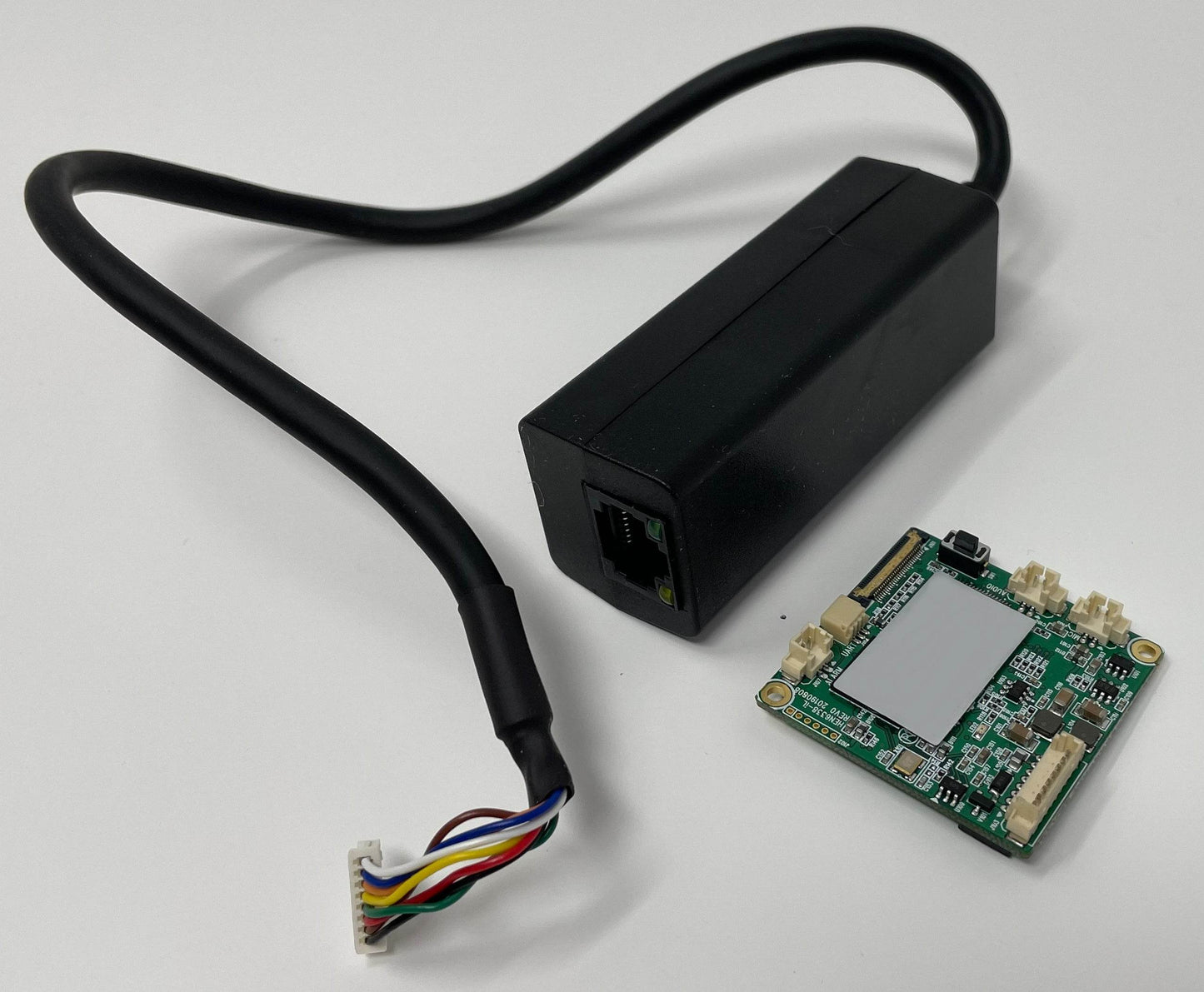

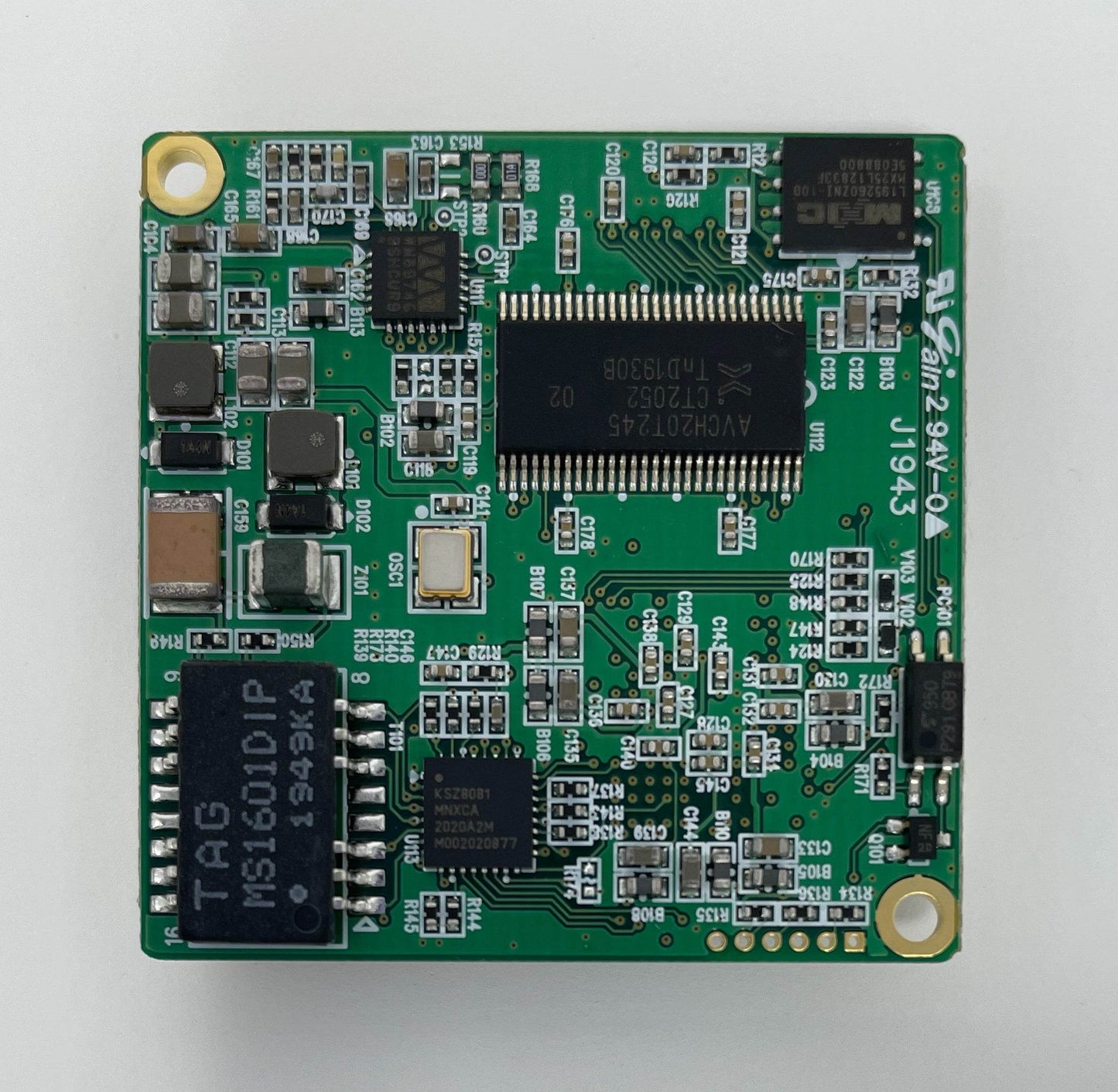

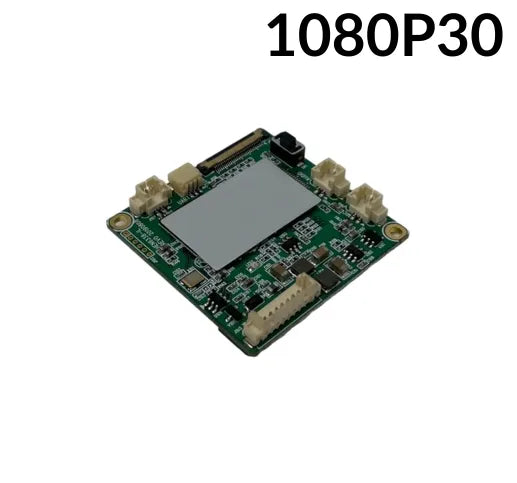

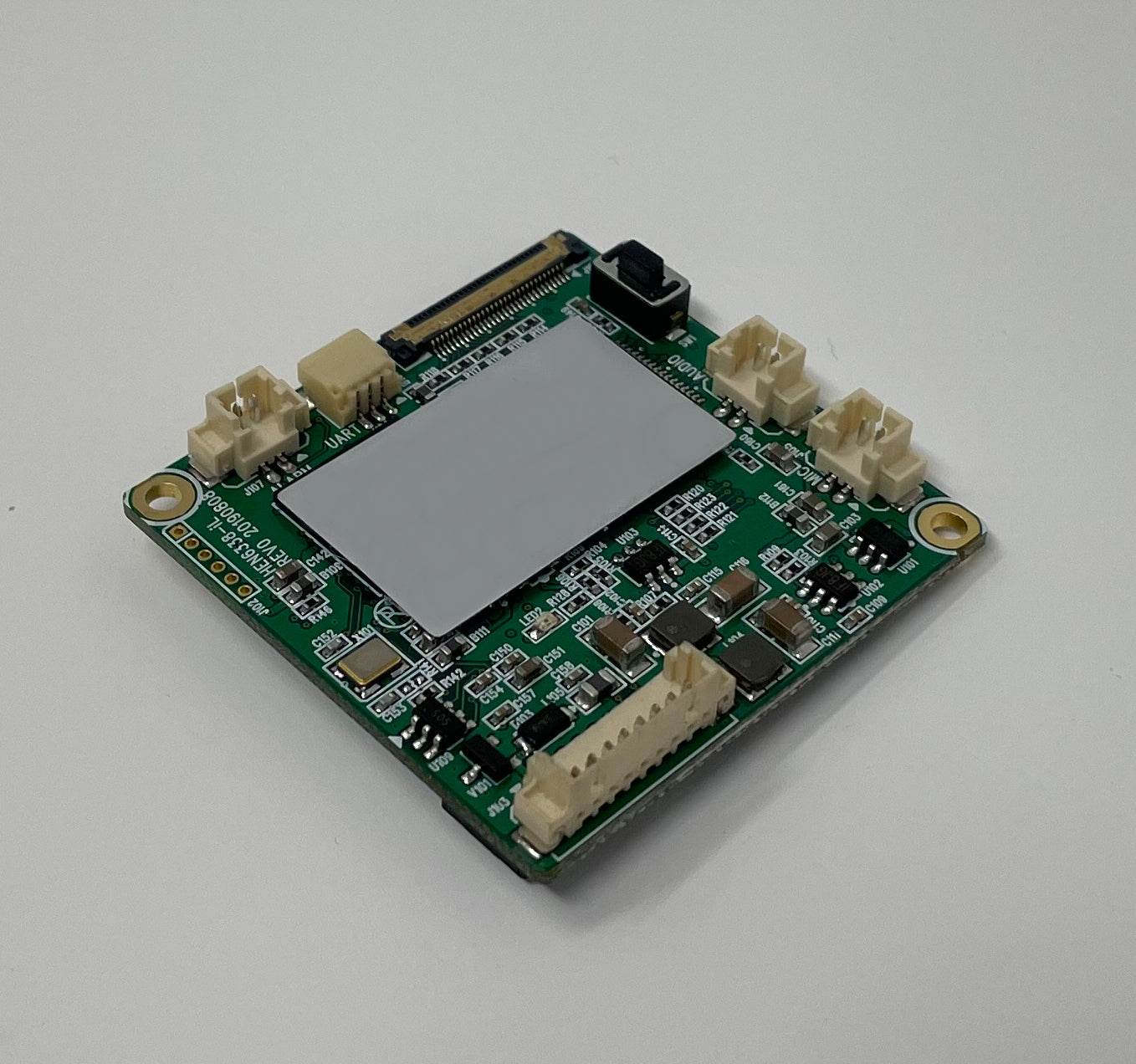

KT&C ACE-HEN6338-iL H.264 LVDS to IP Encoder Module for HD Block Cameras
KT&C ACE-HEN6338-iL H.264 LVDS to IP Encoder Module for HD Block Cameras
Couldn't load pickup availability
ACE-HEN6338-iL Spec Sheet
The KT&C ACE-HEN6338-iL is a high-performance H.264 LVDS to IP encoder module designed for seamless integration with all IP/network-enabled HD block cameras. This module supports HD 1080p video output at 30fps, ensuring crisp and clear video capture with advanced H.264 compression for optimal bandwidth usage. With motion detection capabilities across 4 configurable zones, privacy masking with up to 16 zones, and flexible streaming options, this encoder provides a fully customizable solution for surveillance needs.
Key features include dual power options—12VDC and Power over Ethernet (PoE)—making installation versatile for various environments. Its compact form factor (38x38mm, weighing only 7.65g) and wide operating temperature range of -10°C to +50°C ensure reliable performance in diverse conditions. This device supports multiple streaming profiles, allowing up to three simultaneous streams, and is compatible with a wide range of web browsers and network protocols, including HTTP, HTTPS, Onvif, and more, ensuring easy integration into existing surveillance systems.
The ACE-HEN6338-iL also supports two-way audio with G.711 compression and allows for up to 5 simultaneous users. Ideal for applications like remote monitoring, traffic surveillance, school and campus security, retail monitoring, and healthcare facility surveillance, it offers a versatile solution for high-quality video streaming and network integration.
Features:
- HD 1080p video output at 30fps (H.264, MJPEG)
- Low voltage LVDS input for HD block cameras
- Motion detection with up to 4 customizable zones
- 16 privacy masking zones for enhanced security
- Dual power options: 12VDC or PoE (Power over Ethernet)
- Supports up to 3 simultaneous streaming profiles
- Ethernet 10/100 Base-T for fast network integration
- Two-way audio with G.711 compression
- Compatible with Onvif for easy system integration
- Web browser compatibility (IE, Edge, Safari, Firefox, Chrome)
- Operating temperature range: -10°C to +50°C
- Compact size (38x38mm) and lightweight (7.65g)
- Max 5 simultaneous users
- Supports multiple network protocols (HTTP, HTTPS, RTP/RTSP, etc.)
Applications:
- Remote surveillance and monitoring
- Traffic and public space surveillance
- School and campus security
- Retail store security systems
- Access control and monitoring
- Smart building and facility integration
- Healthcare facility monitoring
- Parking lot and perimeter surveillance
Video Output | Network | ||
Motion Detection | 60x34 Motion Block, up to 4 zones | ||
Privacy Masking Zone | 16 Zones | ||
Alarm In/Out | 1Ch Out | ||
Alarm Triggers | Motion | ||
Alarm Events | Network | ||
Ethernet | 10/100 Base-T Ethernet | ||
Video Compression Format | H.264 Baseline, Main Profile, MJPEG | ||
Video Resolution | 1920x1080, 1280x720, 800x600, 704x480, 704x400, 640x480, 640x360, 320x240 | ||
Max. Frame Rate | First: 1080p 30(25)fps (H.264) Second: 640x360 30 (25)fps (H.264) Third: 1080p 30 (25)fps (MJPEG) |
||
Streaming Capability | Multiple Streaming (Up to 3 Profiles) | ||
Streaming Method | Unicast | ||
Bitrate Control | H.264 : CBR, VBR, CVBR | ||
Max. User Access | 5 | ||
Audio In/Out | Mic In (Conn.), Additional Audio In/Out (selectable) | ||
Compression Format | G.711 | ||
IP | IPv4 | ||
Protocol | HTTP, HTTPS, UPnP, DNS, DDNS, RTP/RTSP, TCP/IP, UDP, DHCP, RARP, NTP, Visca over IP (HTTP) | ||
Web Browser | Internet Explorer, Edge, Safari, Firefox, Chrome | ||
Language | English | ||
SW Integration API | Onvif | ||
Dimension(mm) | 38x38mm | ||
Weight | Approx. 7.65g | ||
Operating Temperature | -10°C~+50°C | ||
Storage Temperature | -20°C~+60°C | ||
Supply Voltage | 12VDC(±10%) | ||
Power Consumption | N/A (under 170mA estimated) |
