KT&C ATC-HZ5230T-LCN 1080P60 IP Camera – 5-50mm Motorized Zoom, 100m IR Night Vision, H.265 Compression, IP66 Weatherproof

The KT&C ATC-HZ5230T-LCN IP camera features a high-quality 1/2.8" SONY Progressive Scan STARVIS CMOS image sensor, delivering exceptional 1080P60 video resolution with effective pixels of 2.13MP (1945 x 1097). This camera supports multiple video output modes, including LVDS, CVBS, and 9-pin FFC, ensuring versatile integration into various systems.

Equipped with a 5-50mm motorized AF optical zoom lens with DC iris, it offers a 30x optical zoom ratio and a minimum working distance of 0.01m (wide) to 1.0m (telephoto), allowing for detailed close-up monitoring. The lens has an adjustable F-value ranging from F1.6 (wide) to F5.0 (telephoto), providing a horizontal field of view from 58.9° to 2.11° and vertical from 45.3° to 1.61°.

In terms of low-light performance, the camera boasts a minimum illumination of 0.1 Lux in day mode and 0.05 Lux in night mode, equipped with a night vision capability of up to 100 meters via built-in IR LEDs. The camera's advanced features include 3D Noise Reduction (3DNR), Digital Wide Dynamic Range (D-WDR), and various automatic exposure (AE) modes, ensuring clarity in varying lighting conditions.

Additional functionalities such as motion detection across four zones, privacy masking with up to 8 zones, digital image stabilization, and manual shutter speeds from 1/1 to 1/10000 seconds enhance its usability in security applications. The camera is housed in an IP66-rated enclosure, ensuring durability against dust and water, and operates within a temperature range of -10℃ to +50℃.

The KT&C ATC-HZ5230T-LCN supports H.265 and H.264 video compression for efficient bandwidth management and storage, making it an ideal choice for high-demand security environments.

Features:

• 1/2.8 Progressive Scan STARVIS CMOS
• 300x AF Zoom(30x optical zoom, 12x digital zoom)
• 1080p 60/50/30/25fps
• Mechanical Day&Night
• True WDR
• 3D DNR, Defog
• UART RS232-TTL(Pleco-D, Pelco C, VISCA, Hitachi)

Applications:

• Airport Security: Monitors terminals and runways with high zoom and clarity.
• City Surveillance: Provides detailed views of urban areas and public spaces.
• Campus Security: Covers large educational campuses, including parking and perimeters.
• Retail Security: Enhances store safety with clear images of interiors and exteriors.
• Transportation Hubs: Effective for train stations and bus depots.
• Critical Infrastructure: Protects power plants, water facilities, and telecom centers.
• Public Events: Monitors large events and gatherings with high resolution.
• Perimeter Security: Secures facility boundaries and detects intrusions.
• Banking Sector: Safeguards bank branches and ATMs.
• Highway Monitoring: Assists in traffic management and incident detection.
• Border Security: Monitors border areas and checkpoints.

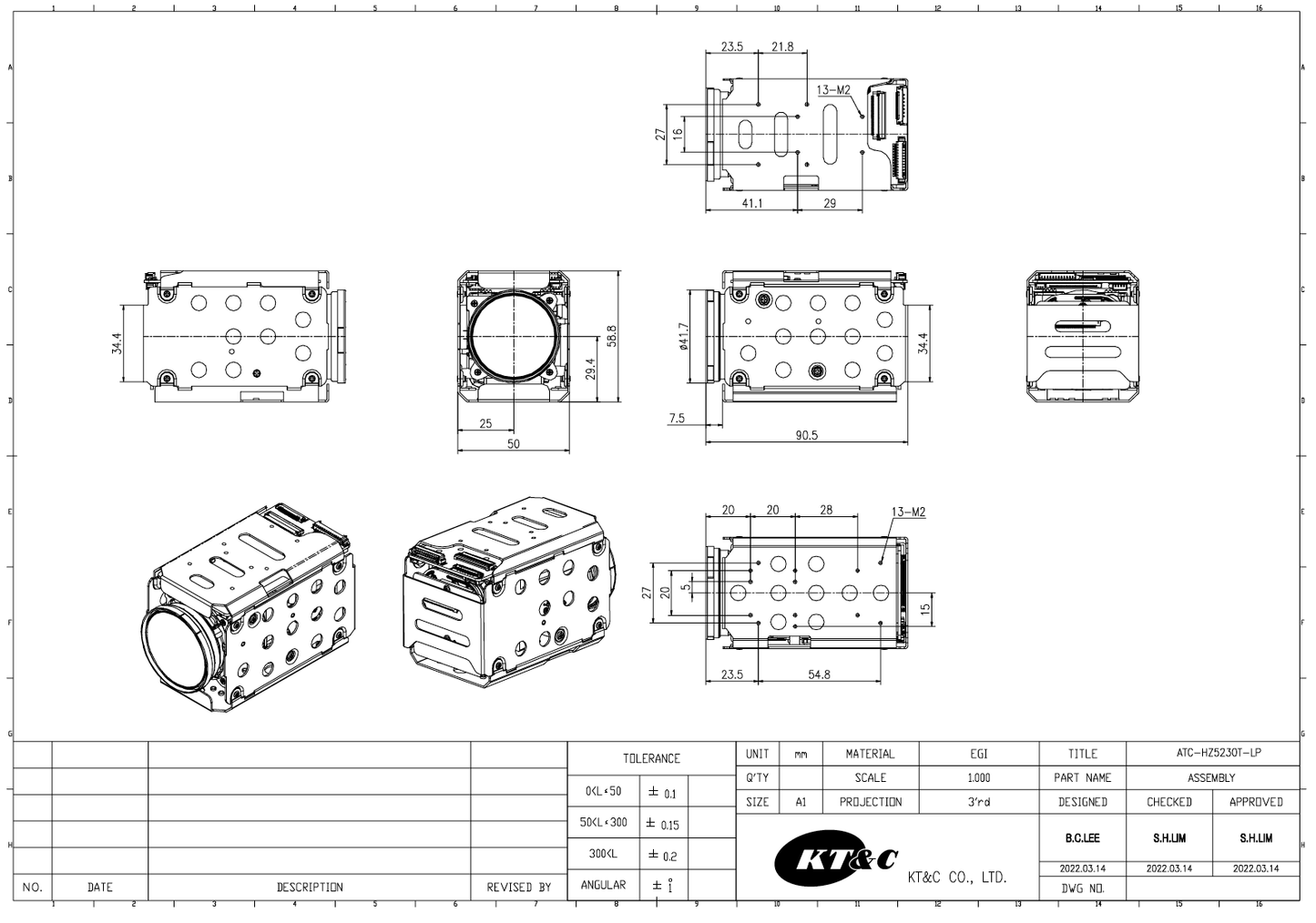

ATC-HZ5230T-LCN Spec Sheet
