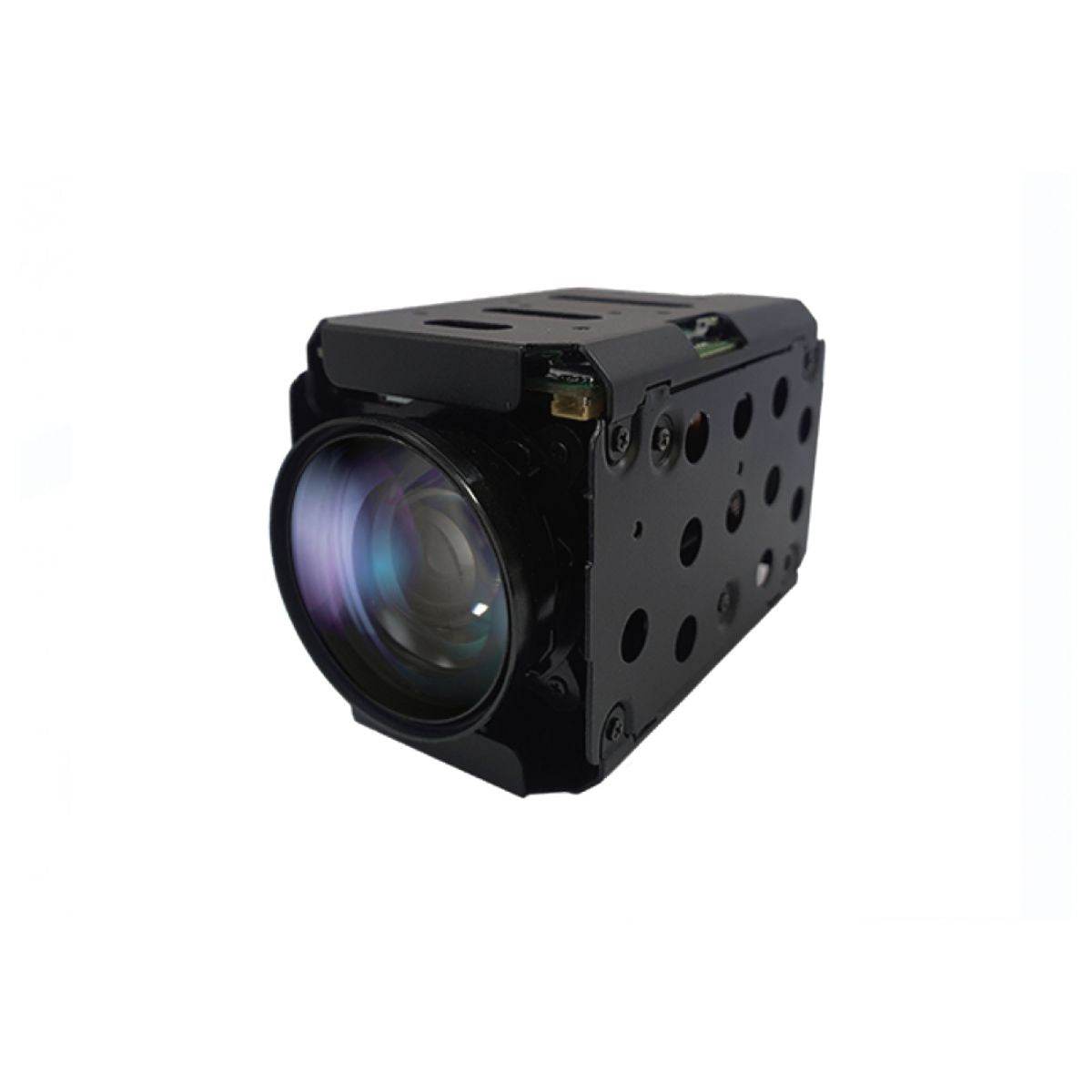

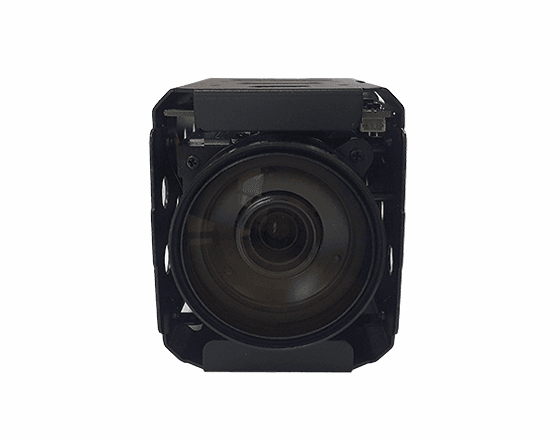

KT&C ATC-HZ5230Z-LCN: 2.13MP 30x Optical Zoom, 1080P60, High-Sensitivity CMOS Camera

The KT&C ATC-HZ5230Z-LCN camera module delivers high-performance imaging with a 1/2.8" progressive scan CMOS sensor, achieving a 2.13MP resolution at 1080P60. With a 30x AF optical zoom lens (5.0-150mm), it provides excellent focal versatility, ensuring clear images from close-up to long distances.

Designed for low-light environments, it operates down to 0.05 Lux (Day) and 0.03 Lux (Night), featuring Sens-Up and AGC capabilities. Advanced image processing includes WDR, 3D-DNR, and Digital Image Stabilization for enhanced clarity. The camera supports LVDS, Parallel, and CVBS output formats, with RS232 TTL control for easy integration and communication across various systems. Compact and energy-efficient, it functions reliably from -10°C to +50°C, with a maximum power consumption of 6.4W.

Features:

• 1/2.8 Progressive Scan STARVIS CMOS
• 300x AF Zoom(30x optical zoom, 12x digital zoom)
• 1080p 60/50/30/25fps
• Mechanical Day&Night
• True WDR
• 3D DNR, Defog
• UART RS232-TTL(Pleco-D, Pelco C, VISCA, Hitachi)

Applications:

• Perimeter Security: Ideal for monitoring large perimeters in airports, seaports, and military bases with precise zoom capabilities.
• Traffic Monitoring: Effective for real-time traffic management and control in highways and intersections with smooth video capture.
• City Surveillance: Used in urban monitoring and smart city projects to ensure public safety with high-quality imagery.
• Border Security: Essential for long-distance monitoring and clear imaging in remote or challenging environments.
• Industrial Facility Security: Perfect for securing industrial areas, integrating seamlessly with existing surveillance systems.
• Critical Infrastructure Protection: Deployed to protect vital infrastructure with advanced imaging and environmental adaptability.

ATC-HZ5230Z-LCN Spec Sheet
