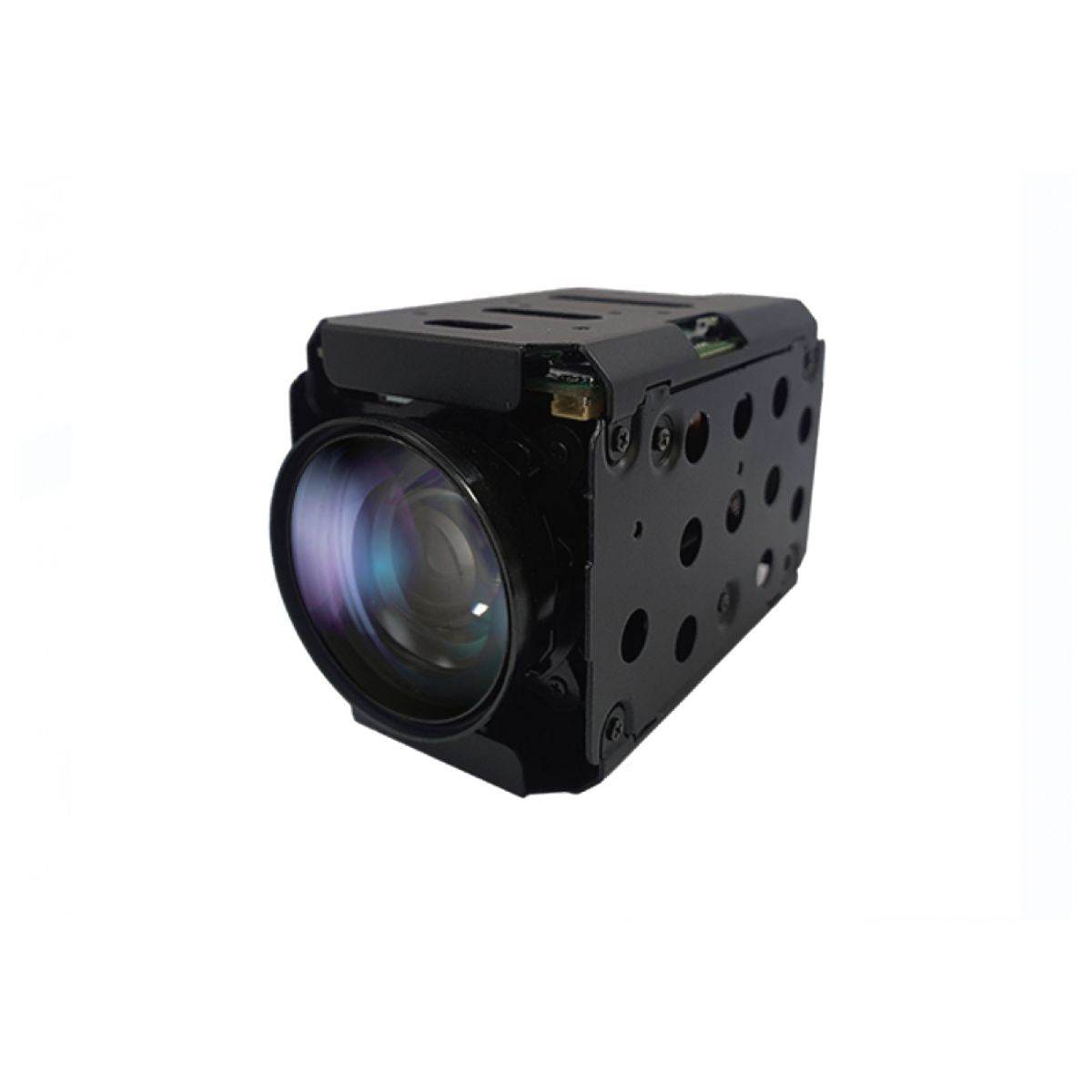

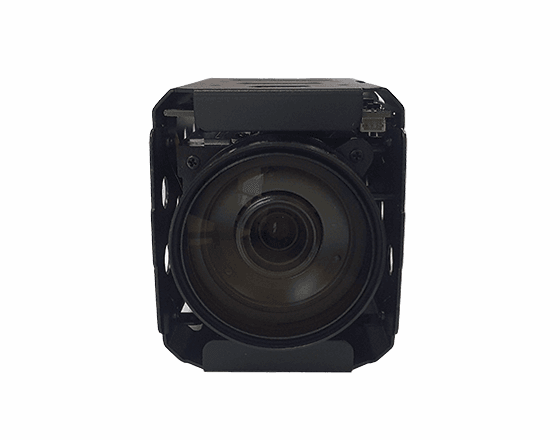

KT&C ATC-HZ5240T-LCN 2.13MP 40x Zoom HD Surveillance Camera with 1080P60 Output and Progressive Scan CMOS Sensor

The KT&C ATC-HZ5240T-LCN is a high-performance surveillance camera featuring a 1/2.8" Progressive Scan CMOS sensor with an effective resolution of 2.13MP (1945 x 1097). This camera supports multiple output formats, including 1080p at 60/50/30/25 fps and 720p at 30/25 fps, ensuring high-quality video capture.

With a minimum illumination of 0.01 Lux in day mode and 0.006 Lux at night, alongside a Signal-to-Noise (S/N) ratio exceeding 55dB, it excels in low-light conditions. The camera features a powerful 40x optical zoom with a focal length range of 4.25mm to 170mm, providing versatile viewing angles from 65.6° to 1.9° horizontally and 39.3° to 1.1° vertically.

Additional features include auto/manual focus modes, multiple D&N modes (Auto, Day, Night, External), and various white balance settings. The on-screen display (OSD) supports multiple languages, enhancing usability across different environments.

Features:

• 1/2.8 STARVIS CMOS Sensor: High-resolution imagery with superior low-light performance.
• 300x AF Zoom: 30x optical + 10x digital zoom for precise focus.
• 1080P60 Multiple Frame Rates: Smooth video capture at 60/50/30/25fps.
• Mechanical Day & Night: Automatic adaptation to lighting changes.
• True WDR: Balances challenging light conditions for clear visuals.
• 3D DNR & Defog: Enhances image clarity in low-light and adverse weather.
• UART RS232-TTL Support: Integration with Pleco-D, Pelco C, VISCA, and Hitachi protocols.

Applications:

• Critical Infrastructure Security
• Perimeter Surveillance
• Transportation Hub Monitoring
• Public Safety Surveillance
• Industrial Site Monitoring
• Urban Security
• Traffic and Toll Monitoring
• Adverse Weather Surveillance
• Custom Surveillance Systems

ATC-HZ5240T-LCN Spec Sheet
