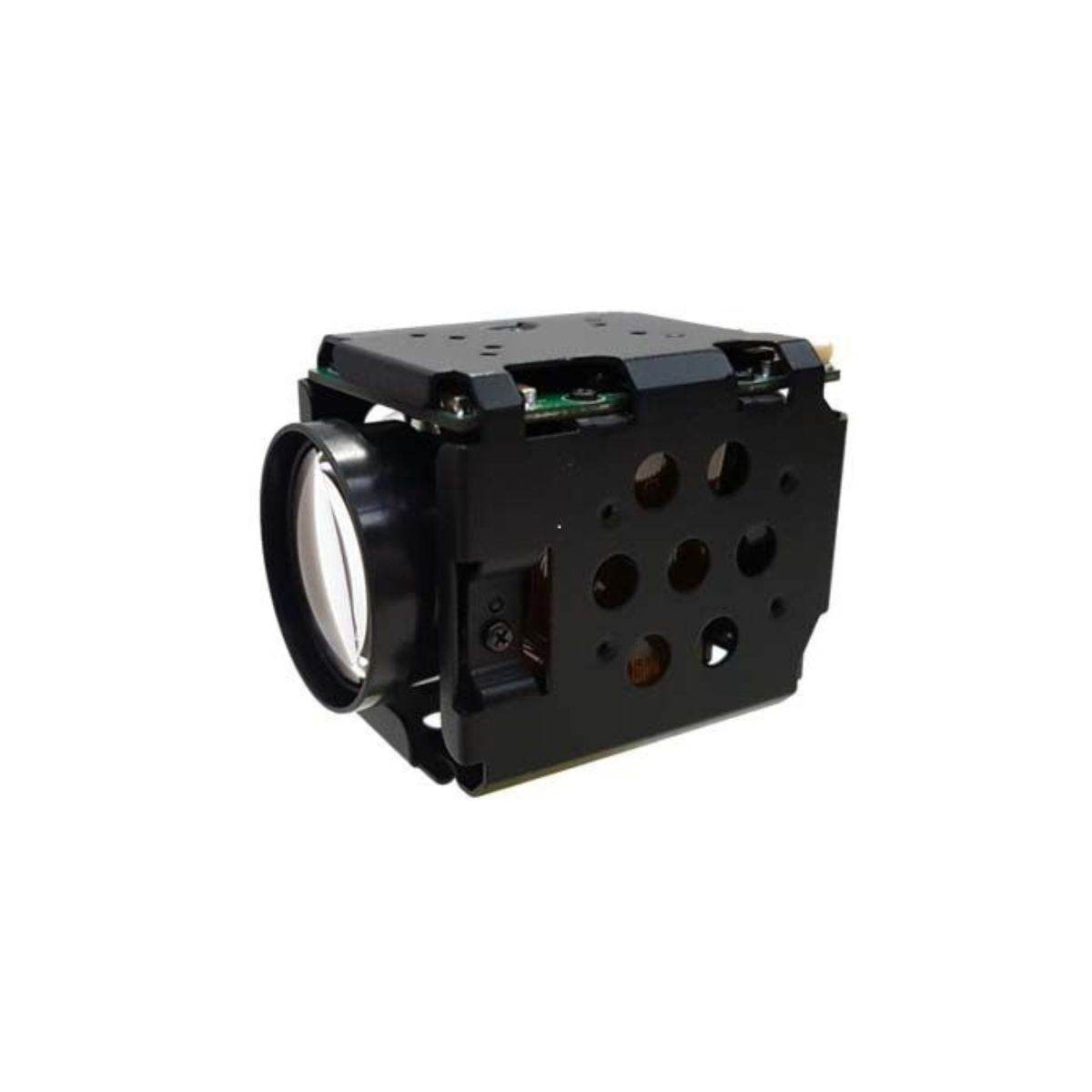

KT&C ATC-HZ5510C-LCN Block Camera 1.58MP CMOS 720p@60fps LVDS Output 10x Optical Zoom

The KT&C ATC-HZ5510C-LCN is a sophisticated block camera engineered for high-performance surveillance applications. Featuring a 1/2.9" CMOS image sensor with an effective resolution of 1.58MP (1456 x 1088), this camera delivers outstanding image clarity at a maximum video resolution of 720p at 60fps using LVDS output. With a minimum illumination of 0.05 Lux in day mode and 0.03 Lux in night mode (with IR-cut filter), it excels in low-light environments. The optical zoom lens offers a focal length range of 5.1mm to 51mm, combined with an aperture of F1.6 (wide) to F1.8 (tele), providing a versatile 10x optical zoom and superior focus control options, including auto, manual, and preset configurations.

This camera is equipped with advanced features like Digital Wide Dynamic Range (D-WDR), 3D and 2D noise reduction (DNR), and customizable white balance settings, ensuring optimal image quality in diverse lighting conditions. With a compact design (41.6 x 45 x 61.6 mm) and a lightweight structure (approx. 124g), it supports multiple connectivity options (RS232 TTL for remote control) and operates on a power supply of 12V DC with a maximum consumption of 5.2W. The KT&C ATC-HZ5510C-LCN is an excellent choice for high-definition surveillance, offering robust performance and adaptability in various environments.

Features:

• 1/2.8 Progressive Scan STARVIS CMOS Sensor: Delivers high-resolution images with excellent low-light performance.
• 300x Zoom Capability: Combines 30x optical zoom and 10x digital zoom for detailed and precise observation.
• 1080p Frame Rate Support: Offers smooth video capture at 60/50/30/25fps for clear real-time monitoring.
• Mechanical Day&Night Function: Adjusts to varying light conditions for optimal performance around the clock.
• True WDR (Wide Dynamic Range): Balances exposure to capture clear images in challenging lighting conditions.
• 3D DNR (Digital Noise Reduction): Reduces visual noise for enhanced image clarity.
• Defog Technology: Improves visibility in foggy or adverse weather conditions.
• UART RS232-TTL Communication: Supports Pleco-D, Pelco C, VISCA, and Hitachi protocols for seamless system integration.

Applications:

• High-Security Surveillance: Ideal for banks, government buildings, and critical infrastructure.
• Traffic Monitoring: Captures detailed footage of traffic and incidents.
• Perimeter Security: Provides extensive coverage and detailed observation for large areas.
• Retail Surveillance: Monitors large retail spaces for loss prevention and customer analysis.
• Public Safety: Enhances security in public areas with clear surveillance.
• Law Enforcement: Assists in evidence gathering and incident documentation.

ATC-HZ5510C-LCN Spec Sheet
