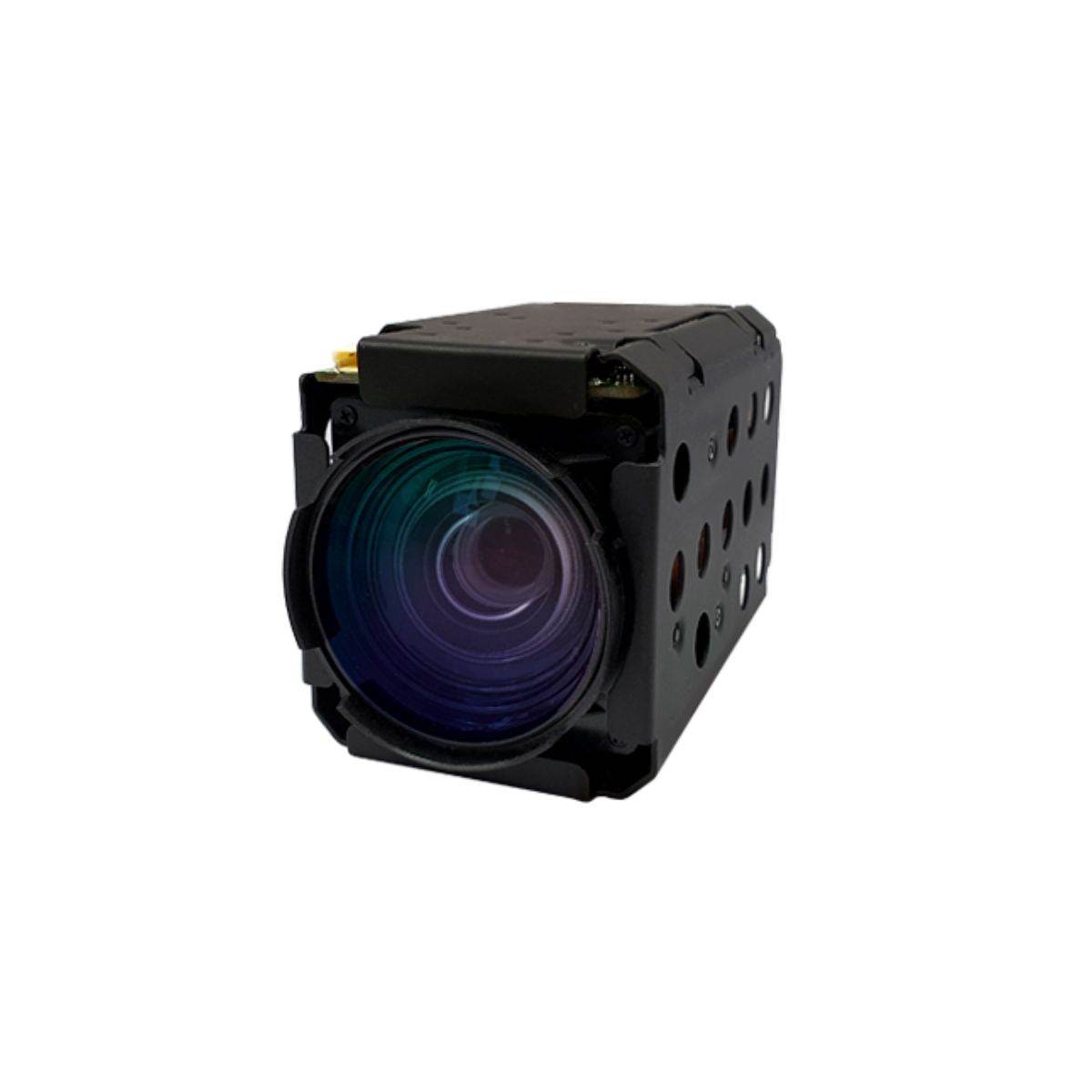

KT&C ATC-HZ5518W-LPN 3.19MP 1080P60 Global Shutter Surveillance Camera with 18x Optical Zoom and True WDR
KT&C ATC-HZ5518W-LPN 3.19MP 1080P60 Global Shutter Surveillance Camera with 18x Optical Zoom and True WDR
Couldn't load pickup availability
The KT&C ATC-HZ5518W-LPN is a high-performance surveillance camera featuring a 1/1.8" Progressive Scan Global Shutter CMOS sensor, delivering an effective pixel count of 3.19MP (2064x1544). It supports multiple video output modes, including Parallel, LVDS, and CVBS, with a maximum resolution of 1080p at 60fps for high-quality video capture.
This camera is equipped with a versatile 216x autofocus optical zoom lens, providing 18x optical zoom and 12x digital zoom capabilities. With a minimum illumination of 0.1 Lux in day mode and 0.05 Lux in night mode (IR-cut filter engaged), it performs exceptionally in low-light conditions. Key features include true WDR for balanced exposure, 3D DNR technology for noise reduction, and motion detection across four zones. The KT&C ATC-HZ5518W-LPN also offers UART RS232 TTL compatibility, allowing seamless integration with protocols like Pelco-D, VISCA, and Hitachi, making it ideal for various surveillance applications.
Features:
- 1/1.8 Progressive Scan Global Shutter CMOS: Delivers clear, detailed images with minimal motion blur.
- 216x AF Zoom: Combines 18x optical and 12x digital zoom for versatile viewing.
- 1080p Frame Rates: Supports 60/50/30/25fps for smooth video capture.
- Mechanical Day & Night: Adapts to all lighting conditions.
- True WDR: Handles high-contrast scenes with balanced exposure.
- 3D DNR and Defog: Enhances clarity by reducing noise and compensating for fog.
- Global Shutter, Trigger In & Strobe Out: Captures fast motion and syncs with external devices.
- UART RS232-TTL Compatibility: Works with Pleco-D, Pelco C, VISCA, Hitachi for seamless integration.
Applications:
- Surveillance: Ideal for detailed monitoring in various environments.
- Traffic Monitoring: Captures vehicle details and license plates.
- Industrial Security: Enhances security for industrial sites.
- Retail Security: Provides clear footage for loss prevention.
- Infrastructure Monitoring: Protects critical infrastructure with high clarity.
- Event Recording: Smoothly documents events with adjustable frame rates.
| Image Sensor | 1/1.8" Progressive Scan Global Shutter CMOS |
| Effective Pixels | 3.19MP 2064(H) x 1544(V) |
| Video Output Mode | Parallel/LVDS/CVBS |
| Max. Video Resolution | LVDS / Parallel :1080p@60(50fps) |
| Synchronization System | Internal/External Options |
| Min. Illumination |
Day mode: 0.1 Lux (F1.61) |
| S/N Rate | More than 55dB (AGC off, Sense-up off) |
| Lens |
AF Optical zoom lens (DC Iris), IR Corrective f=6.8mm to 120mm |
| Zoom Ratio | Optical 18x / Digital 12x |
| Focus Min. Working Distance | 0.1m(Wide)/2.0m(Tele)~Infinite |
| Focus Control | Auto/Interval/One Push/Manual/Preset |
| AE Mode | Auto/Shutter Priority/Iris Priority/AGC Priority/Manual |
| Brightness | 0-14 |
| Manual Shutter | 1/1, 1/2, 1/4(3), 1/8(6), 1/15(12), 1/30(25), 1/60(50) to 1/10000 |
| Manual Iris | F1.6 to F32, Close |
| Sense-up | Off~32fields |
| ETC | Spot AE, Slow AE |
| D&N Mode | Auto/Day(Color)/Night(BW)/External-H or L |
| White Balance | AUTO/One Push/Indoor/Outdoor/ATW/Manual |
| Image Freeze | Off/On |
| Image Flip | Off/Horizontal/Vertical/H+V (180° Flip) |
| Privacy Mask Zone | 8 Zones/14 mask color selectable |
| Digital Image Stabilization | Yes |
| Motion Detection | 4 Zones |
| D-WDR | Off/Low/Middle/High |
| WDR | Off/On, Adjustable (Level:0~29, Contrast:0~5, Bright:0~19) |
| BLC | Off/On, Area selectable |
| HLC | Off/On, Area selectable |
| AGC | Max.48dB |
| Sharpness | Adjustable(0~15) |
| 3D-DNR | Off/Auto/Low/Middle/High |
| 2D-DNR | Off/Auto/Low/Middle/High |
| Defog | Off/On/Auto |
| Language | English |
| UART |
RS232 TTL +5.0V (+3.3V compatible) |
| Supply Voltage | 12VDC (9V to 15VDC |
| Power Consumption | Max. 7.4W / Non-working zoom & focus 4.9W |
| Dimension (mm) | 51 X 59 X 97.6mm |
| Weight | Approx. 277g |
| Operating Temperature | -10℃~+50℃, Humidity(Less than 90%) |
| Storage Temperature | -20℃~+60℃, Humidity(Less than 90%) |
