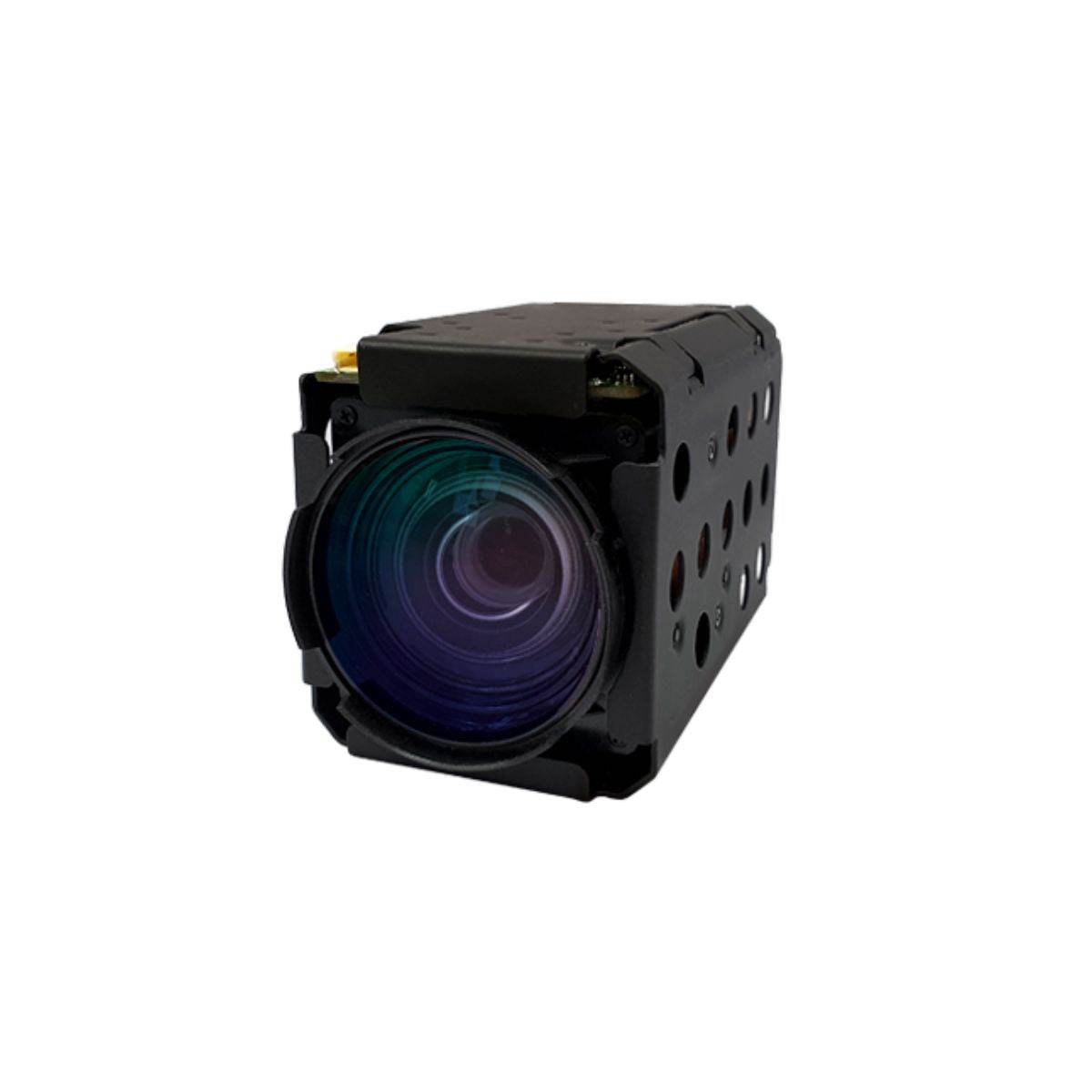

KT&C ATC-HZ5518W-U 1080P60 Full HD Camera with Global Shutter, 18x Optical Zoom
KT&C ATC-HZ5518W-U 1080P60 Full HD Camera with Global Shutter, 18x Optical Zoom
Couldn't load pickup availability
The KT&C ATC-HZ5518W-U is a high-performance surveillance camera featuring a 1/1.8" Progressive Scan Global Shutter CMOS sensor with a resolution of 3.19MP (2064x1544). It supports video output at 1080p up to 60fps, making it ideal for high-definition applications.
Equipped with a 216x AF Zoom system (18x optical and 12x digital), the camera provides excellent clarity with a focal length of 6.8mm to 120mm and a minimum illumination of 0.1 Lux in daylight. Advanced features include True WDR, 3D DNR, and Mechanical Day & Night functionality for superior performance in varying lighting conditions. With UART RS232-TTL compatibility and a compact design, it's perfect for diverse indoor and outdoor installations.
Features:- 1/1.8 Progressive Scan Global Shutter CMOS
- 216x AF Zoom(18x optical zoom, 12x digital zoom)
- 1080p 60/50/30/25fps
- Mechanical Day&Night
- True WDR
- 3D DNR, Defog
- Global Shutter, Trigger In&Strobe Out
- UART RS232-TTL(Pleco-D, Pelco C, VISCA, Hitachi)
Applications:
- Intelligent Traffic Monitoring
- Retail Security
- Perimeter Security
- Smart City Surveillance
- Industrial Monitoring
- Event Surveillance
- Remote Video Conferencing
- Animal Monitoring
- Research and Development
- Healthcare Facility Monitoring
|
Image Sensor |
1/1.8" Progressive Scan Global Shutter CMOS |
|
Effective Pixels |
3.19MP 2064(H) x 1544(V) |
|
Video Output Mode |
USB/CVBS |
|
Max. Video Resolution |
USB :1080p@60(50fps) |
|
Synchronization System |
Internal/External Options |
|
Min. Illumination |
Day mode: 0.1 Lux (F1.5) |
|
S/N Rate |
More than 55dB (AGC off, DSS off) |
|
Lens |
AF Optical zoom lens (DC Iris), IR Corrective f=6.8mm to 120mm |
|
Zoom Ratio |
Optical 18x / Digital 12x |
|
Focus Min. Working Distance |
0.1m(Wide)/2.0m(Tele)~Infinite |
|
Focus Control |
Auto/Interval/One Push/Manual/Preset |
|
AE Mode |
Auto/Shutter Priority/Iris Priority/AGC Priority/Manual |
|
Brightness |
0-14 |
|
Manual Shutter |
1/1, 1/2, 1/4(3), 1/8(6), 1/15(12), 1/30(25), 1/60(50) to 1/10000 |
|
Manual Iris |
F1.6 to F32, Close |
|
Sense-up |
Off~32fields |
|
ETC |
Spot AE, Slow AE |
|
D&N Mode |
Auto/Day(Color)/Night(BW)/External-H or L |
|
White Balance |
AUTO/One Push/Indoor/Outdoor/ATW/Manual |
|
Image Freeze |
Off/On |
|
Image Flip |
Off/Horizontal/Vertical/H+V (180° Flip) |
|
Privacy Mask Zone |
8 Zones/14 mask color selectable |
|
Digital Image Stabilization |
Yes |
|
Motion Detection |
4 Zones |
|
D-WDR |
Off/Low/Middle/High |
|
WDR |
Off/On, Adjustable (Level:0~29, Contrast:0~5, Bright:0~19) |
|
BLC |
Off/On, Area selectable |
|
HLC |
Off/On, Area selectable |
|
AGC |
Max.48dB |
|
Sharpness |
Adjustable(0~15) |
|
3D-DNR |
Off/Auto/Low/Middle/High |
|
2D-DNR |
Off/Auto/Low/Middle/High |
|
Defog |
Off/On/Auto |
|
Language |
English |
|
UART |
RS232 TTL +5.0V (+3.3V compatible) |
|
Supply Voltage |
12VDC (9V to 15VDC) |
|
Power Consumption |
Max.6.0W / Non-working zoom&focus 4.5W |
|
Dimension (mm) |
51 X 59 X 97.6mm |
|
Weight |
Approx. 277g |
|
Operating Temperature |
-10℃~+50℃, Humidity(Less than 90%) |
|
Storage Temperature |
-20℃~+60℃, Humidity(Less than 90%) |
