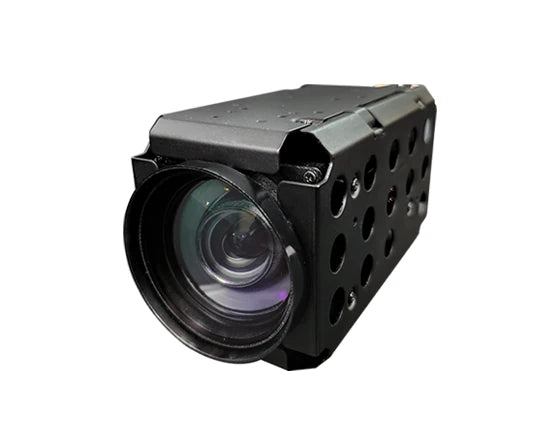

KT&C ATC-HZ5528W-LP 3MP Global Shutter 28x AF Zoom Block Camera

ATC-HZ5528W-LP Spec Sheet
ATC-HZ5528W-LP Dimensions

The KT&C ATC-HZ5528W-LP is a compact 3MP global shutter AF zoom block camera built for demanding imaging systems that need long-range optical zoom, sharp motion capture, flexible video output, and reliable remote camera control. Built around a 1/1.8" Sony progressive scan global shutter CMOS sensor, this camera is ideal for robotics, UAV/drone imaging, machine vision, industrial inspection, intelligent traffic systems, surveillance, security, and OEM embedded vision applications.

With 1080p video output up to 60fps, 28x optical zoom, 12x digital zoom, mechanical Day/Night operation, True WDR, 3D digital noise reduction, defog, and trigger in/strobe out support, the ATC-HZ5528W-LP gives integrators a powerful long-range zoom camera platform in a compact block camera design.

Key Features:

• 3.19MP 1/1.8" Sony progressive scan global shutter CMOS sensor
• 1080p output at 60/50/30/25fps
• 336x total AF zoom: 28x optical zoom + 12x digital zoom
• Global shutter performance for reduced motion distortion
• LVDS, Parallel, and CVBS video output modes
• Trigger input and strobe output for synchronized imaging
• Internal / external synchronization option
• Mechanical Day/Night with IR corrective lens
• True WDR, D-WDR, BLC, HLC, Defog, 2D-DNR, and 3D-DNR
• Digital image stabilization
• UART RS232-TTL control with VISCA, Pelco-D/P, and AFP/EAP protocol support
• 12VDC power input
• Long-range OEM block camera design for embedded systems

Long-Range Global Shutter Imaging

The ATC-HZ5528W-LP combines a global shutter image sensor with a powerful 28x optical zoom lens, making it a strong choice for applications where both motion accuracy and long-range detail are important. Global shutter capture helps reduce the distortion that can appear when imaging moving objects, mobile platforms, production lines, vehicles, drones, or robotic systems.

This makes the camera a practical choice for machine vision, intelligent traffic, inspection, surveillance, robotics, and other systems where clear frame capture matters.

28x Optical Zoom for Detailed Observation

The integrated autofocus zoom lens offers a focal range of 6.7mm to 190mm, giving the camera a horizontal field of view from approximately 54.3° wide to 2.0° telephoto. With 28x optical zoom and 12x digital zoom, the ATC-HZ5528W-LP is designed for applications that need both wide-area viewing and tight long-distance detail.

Focus control options include Auto, Interval, One Push, Manual, and Preset, giving integrators flexibility for fixed installations, PTZ-style systems, remote-controlled platforms, and automated imaging applications.

Flexible Video Output for OEM Integration

The ATC-HZ5528W-LP supports Parallel, LVDS, and CVBS video output, making it suitable for a wide range of embedded camera systems and custom video platforms. For digital output, the camera supports up to 1080p at 60fps over LVDS or Parallel output.

This flexibility makes it useful for OEM designs, industrial camera systems, machine vision equipment, robotics platforms, security systems, and intelligent transportation applications.

Trigger, Strobe, and External Sync Support

For timing-sensitive applications, the ATC-HZ5528W-LP includes trigger input and strobe output support, along with internal / external synchronization options. This makes the camera useful for synchronized imaging, machine vision inspection, multi-camera systems, robotics, traffic monitoring, and industrial automation.

Advanced Image Processing

The ATC-HZ5528W-LP includes a strong image processing feature set for difficult lighting and environmental conditions:

• True WDR for high-contrast scenes
• D-WDR with Auto, Low, Middle, and High settings
• 3D-DNR and 2D-DNR for cleaner low-light images
• Defog with Auto, Low, Middle, and High settings
• BLC and HLC for backlight and highlight compensation
• Digital image stabilization for vibration-prone platforms
• Mechanical Day/Night for color daytime imaging and black-and-white night operation
• Privacy masking and motion detection

These features help the camera maintain more usable image quality in real-world environments where lighting, haze, glare, and movement can affect performance.

Remote Camera Control

The ATC-HZ5528W-LP supports UART RS232-TTL control with automatic protocol detection for VISCA, Pelco-D/P, and AFP/EAP. Supported baud rates include 2400, 4800, 9600, 19200, 38400, 57600, and 115200bps.

This makes the camera easier to integrate into embedded controllers, robotics platforms, inspection equipment, security systems, and OEM devices that require remote zoom, focus, exposure, and image control.

Ideal Applications:

The KT&C ATC-HZ5528W-LP is well suited for:

• Robotics and autonomous systems
• UAV and drone imaging payloads
• Machine vision and factory automation
• Industrial inspection systems
• Intelligent traffic and transportation monitoring
• Security and surveillance systems
• Long-range observation
• Remote-controlled imaging platforms
• Synchronized imaging systems
• OEM embedded vision designs
• Medical and scientific imaging equipment
• Low-light and high-contrast video applications

Technical Highlights:

• Image Sensor: 1/1.8" Sony Progressive Scan Global Shutter CMOS
• Effective Pixels: 3.19MP, 2064(H) x 1544(V)
• Video Output: Parallel / LVDS / CVBS
• Max Resolution: 1080p at 60/50fps via LVDS or Parallel
• Synchronization: Internal / External Option
• Lens: AF optical zoom lens, DC iris, IR corrective
• Focal Length: 6.7mm to 190mm
• Aperture: F1.6 wide to F4.7 tele
• Zoom Ratio: 28x optical, 12x digital
• Minimum Illumination: 0.1 lux day mode, 0.05 lux night mode
• S/N Ratio: More than 55dB
• Focus Control: Auto, Interval, One Push, Manual, Preset
• Day/Night: Auto, Day, Night, External-H or L
• WDR: True WDR adjustable
• Noise Reduction: 2D-DNR and 3D-DNR
• Defog: Off, On, Auto
• Control: UART RS232-TTL, VISCA, Pelco-D/P, AFP/EAP
• Power: 12VDC, 9V to 15VDC supported
• Power Consumption: Max. 7.4W / 5.0W when zoom and focus are not operating
• Dimensions: 55.0 x 64.0 x 123 mm
• Weight: Approx. 380g
• Operating Temperature: -10°C to +50°C
• Storage Temperature: -20°C to +60°C

Why Choose the KT&C ATC-HZ5528W-LP?

The ATC-HZ5528W-LP combines the motion accuracy of a global shutter sensor, the long-range detail of a 28x optical AF zoom lens, and the integration flexibility of LVDS, Parallel, CVBS, trigger/strobe, external sync, and UART control. For OEMs and system designers who need a compact long-range block camera for industrial, robotic, surveillance, inspection, or embedded vision systems, this model is a strong fit.

Contact Block Cameras today for pricing, availability, and integration support for the KT&C ATC-HZ5528W-LP 3MP Global Shutter 28x AF Zoom Block Camera.
