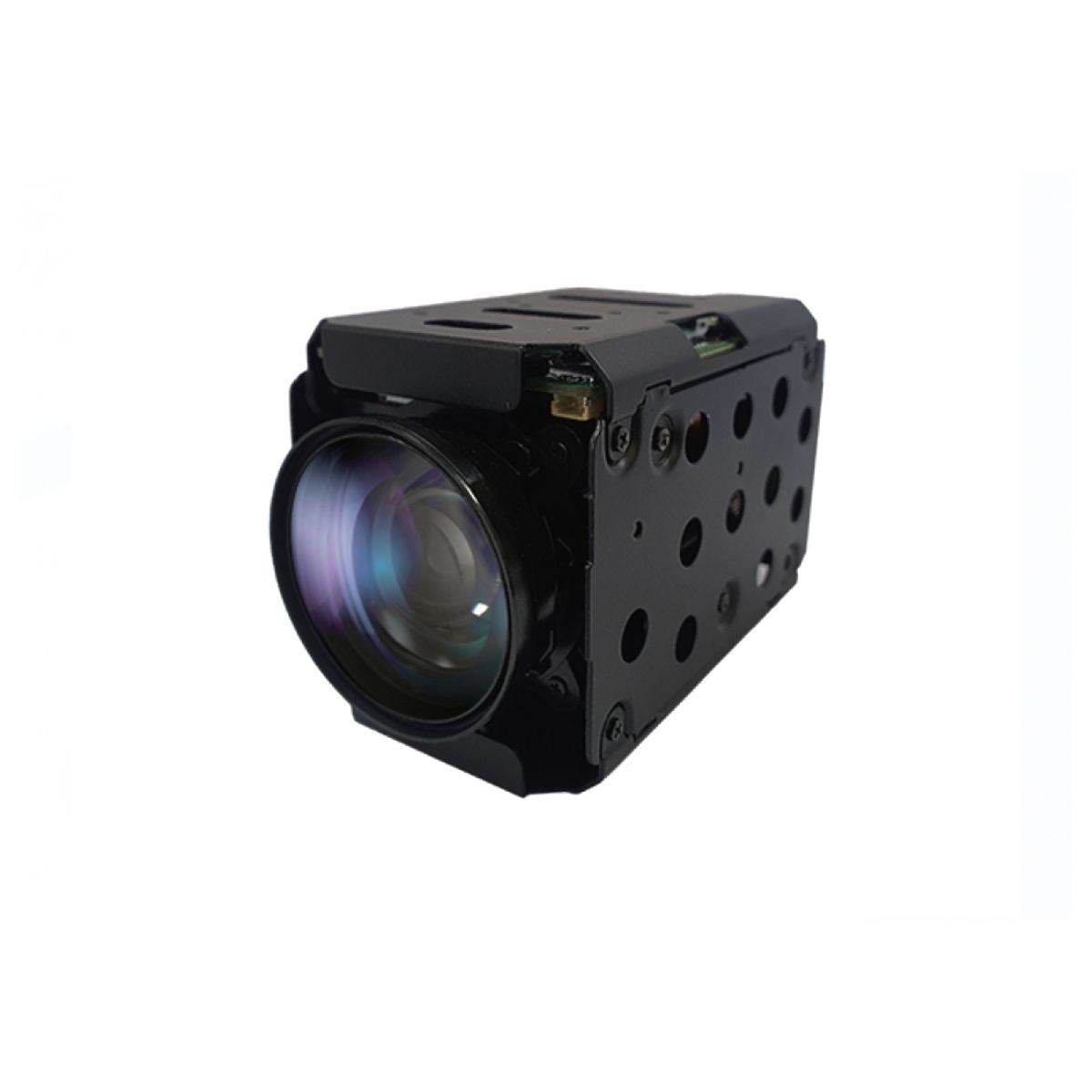

KT&C ATC-HZ5530W-LPN PTZ Camera - 3.19MP, 30x Optical Zoom, 1080P60
KT&C ATC-HZ5530W-LPN PTZ Camera - 3.19MP, 30x Optical Zoom, 1080P60
Couldn't load pickup availability
The KT&C ATC-HZ5530W-LPN is a high-performance PTZ camera featuring a 1/1.8" CMOS sensor that delivers 3.19MP effective resolution (2064 x 1544). It supports LVDS and CVBS output with a maximum video resolution of 1080p at 60fps, ideal for various surveillance applications.
Equipped with a 30x optical zoom lens (f=6.0mm to 180mm, F1.5 to F4.3), it offers a horizontal field of view ranging from 61.2° to 2.32°. The camera excels in low-light conditions, achieving a minimum illumination of 0.05Lux in day mode and 0.03Lux at night (with IR-cut filter). With an S/N rate greater than 52dB, it ensures clarity in diverse lighting environments.
Key features include digital image stabilization, four-zone motion detection, and customizable exposure settings. The camera supports various protocols (VISCA, Pelco-D/P) and operates on a 12V DC power supply, with a consumption of 5.2W. Its compact dimensions (55 x 64 x 123mm) and weight (approx. 380g) make it versatile for both indoor and outdoor use.
Features:
- 1/2.9" Global Shutter CMOS Sensor: Captures sharp, clear images without motion blur, ideal for fast-moving scenes.
- 30X Optical Zoom + 12X Digital Zoom: Delivers powerful zoom capabilities for both wide-area coverage and detailed close-ups.
- HD 720p Video (60/50/30/25fps): Offers smooth, high-quality video streaming for real-time monitoring.
- Mechanical Day & Night: Automatically adjusts to lighting changes for reliable 24/7 surveillance.
- True Wide Dynamic Range (WDR): Ensures balanced exposure in challenging lighting conditions, capturing all details.
- 3D Digital Noise Reduction (DNR): Minimizes visual noise for clearer images in low light.
- Defog Technology: Enhances clarity in foggy or hazy environments.
- Trigger In & Strobe Out: Allows synchronized operation with external devices for advanced setups.
- RS232-TTL Protocol Compatibility: Integrates seamlessly with existing systems, supporting Pleco-D, Pelco C, VISCA, and Hitachi.
Applications:
- High-Speed Surveillance: Ideal for tracking fast-moving objects without distortion.
- Traffic and Border Monitoring: Provides detailed, clear footage in critical security areas.
- Aerial and Drone Surveillance: Perfect for capturing high-quality images from the air.
- Public Safety: Enhances security in urban environments with comprehensive coverage.
- Industrial Inspection: Suitable for monitoring fast-paced manufacturing processes.
| Image Sensor | 1/1.8" CMOS | |
| Effective Pixels | 3.19MP 2064(H) x 1544(V) | |
| Video Output Mode | Common | LVDS / CVBS |
| AHD/TVI/LVDS | ||
| Max. Video Resolution | LVDS/ Parallel : 1080p@60(50fps) | |
| Synchronization System | Internal / External Option | |
| Min.Illumination | ||
| Min.Illumination | Day mode: 0.05Lux(F1.6) Night mode: 0.03Lux(F1.6/ IR-cut filter on) DSS OFF, AGC28dB |
|
| S/N Rate | More than 52dB(AGC off, DSS off) | |
| Lens | ||
| Lens | Type | AF Optical zoom lens(DC Iris), IR Corrective |
| Focal Length | f=6.0mm~180mm | |
| F-value | F1.5(W)~4.3(T) | |
| Angle of View | Horizontal 61.2°(W)~2.32°(T), Vertical 36.1°(W)~1.31°(T) | |
| Zoom Ratio | Optical 30x / Digital 12x | |
| Focus Min.Working Distance | .1m(Wide) / 1.5m(Tele)~∞ | |
| Focus Control | Auto/Manual/Interval/One Shot/Preset | |
| Exposure | ||
| AE mode | Auto/Shutter Priority/Iris Priority/Manual/Bright | |
| Brightness | 0~14 | |
| Manual Shutter | x32~x2(Low shutter), 1/30(25), 1/60(50)~1/30000 | |
| Manual Iris | F1.6~F19, Close | |
| Sense-up | Off~32fields | |
| ETC | Spot AE, Slow AE | |
| Functions | ||
| D&N Mode | Auto/Day(Color)/Night(BW)/External-H or L | |
| White Balance | AUTO/ATW/Indoor/Outdoor/Push/Manual | |
| Image Freeze | Off/On | |
| Image Flip | Off/Horizontal/Vertical/H+V(180° Flip) | |
| Privacy Mask Zone | 16 Zones/14 mask color selectable, semi-transparency | |
| Digital Image Stabilization | Yes | |
| Motion Detection | 4 Zones | |
| D-WDR | Off/Low/Middle/High | |
| WDR | Off/Low/Middle/High | |
| BLC | Off/On, Area selectable | |
| HLC | Off/0~20, Color selectable | |
| AGC | Max.58dB | |
| Sharpness | Adjustable(0~15) | |
| 3D-DNR | On/Off(1~5) | |
| 2D-DNR | Auto/Manual | |
| Defog | Off/Low/Middle/High | |
| Preset Position | 256 position Presets(Zoom,Focus), 16Memory Presets, Custom Preset | |
| Language | English,Janpanese,Russian,Spanish,German,France,Portuguese,Chinese | |
| Communication | ||
| UART | Remote | RS232 TTL +5.0V(+3.3V compatible) |
| Protocol | VISCA/Pelco-D/Pelco-P/Hitachi: Automatic detection | |
| Baud rate | 2400/48009600/19200/38400/57600/115200bps | |
| UTC | - | |
| Power | ||
| Supply Voltage | 12VDC(7V to 15VDC) | |
| Power Consumption | Max.5.2W / Non-working zoom&focus 3.2W | |
| Pysical and Temperature | ||
| Dimension(mm) | 55 x 64 x 123mm | |
| Weight | Approx.380g | |
| Operating Temperature | -10℃~+50℃, Humidity(20~80%) | |
| Storage Temperature | -20℃~+60℃, Humidity(20~95%) | |
