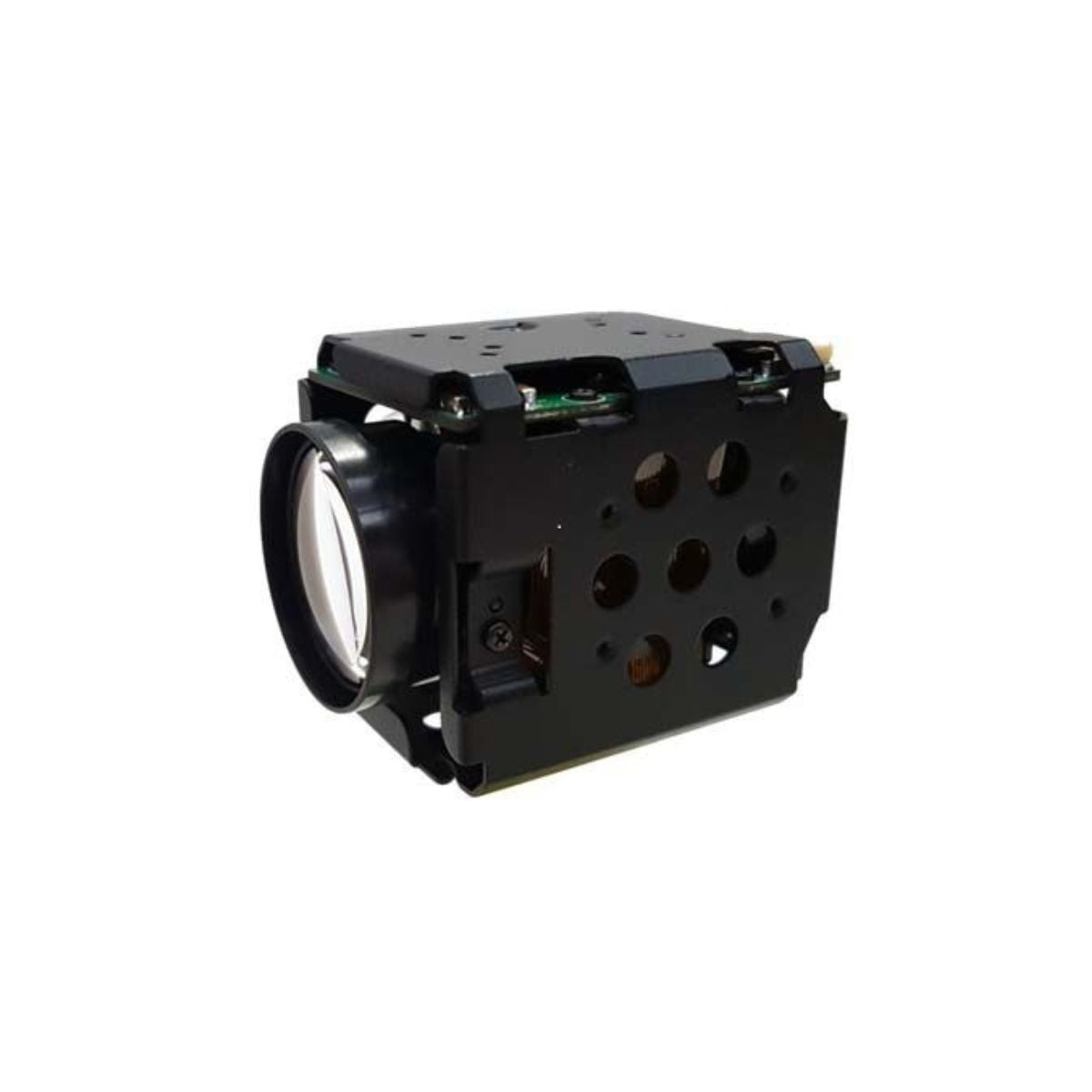

KT&C ATC-HZ5530Z-LPN: High-Performance 1/2.9" Global Shutter CMOS Camera with 300x AF Zoom, True WDR, and 720P Video Output
KT&C ATC-HZ5530Z-LPN: High-Performance 1/2.9" Global Shutter CMOS Camera with 300x AF Zoom, True WDR, and 720P Video Output
Couldn't load pickup availability
The KT&C ATC-HZ5530Z-LPN features a 1/2.9" SONY Progressive Scan Global Shutter CMOS sensor with 1.58MP resolution (1456 x 1088 pixels) and supports 720p video output at frame rates of 60, 50, 30, and 25 fps. It boasts a 300x AF Zoom capability (25x optical and 12x digital) with a focal length ranging from 5.0mm to 150mm and an aperture of F1.6 to F4.3, ensuring superior low-light performance with a minimum illumination of 0.1 lux in day mode and 0.08 lux in night mode.
Key features include True WDR, 3D DNR, and Defog technology for enhanced image clarity in various conditions. The camera supports UART RS232-TTL communication with VISCA, Pelco-D, Pelco-P, and Hitachi protocols for versatile control. Operating within a voltage range of 12VDC (9V to 15VDC) and a power consumption of max 5.3W, the KT&C ATC-HZ5530Z-LPN is built for reliability in demanding environments.
Features:
- 1/2.9 Progressive Scan Global Shutter CMOS
- 300x AF Zoom(25x optical zoom, 12x digital zoom)
- 720p 60/50/30/25fps
- Mechanical Day&Night
- True WDR
- 3D DNR, Defog
- Global Shutter, Trigger In&Strobe Out
- UART RS232-TTL(Pleco-D, Pelco C, VISCA, Hitachi)
Applications:
| Image Sensor | 1/2.9" SONY Progressive Scan Global Shutter CMOS |
| Effective Pixels | 1.58MP 1456(H) x 1088(V) |
| Video Output Mode | LVDS/ Parallel |
| Max. Video Resolution | LVDS / Parallel: 720p@60 (50fps) |
| Synchronization System | Internal / External Option |
| Min. Illumination | Day mode: 0.1 lux (F1.6), Night mode: 0.08 lux (F1.6 / IR-cut filter on) |
| S/N Rate | More than 55dB(AGC off, DSS off) |
| Type | AF Optical zoom lens(DC Iris), IR Corrective |
| Focal Length | f = 5.0mm~150mm |
| F-value | F1.6(W)~4.3(T) |
| Angle of View | Horizontal 59.2°(W)~2.0°(T), Vertical 33.8°(W)~1.15°(T) |
| Zoom Ratio | Optical 30x / Digital 12x |
| Focus Min. Working Distance | 0.01m (Wide) / 1.0m (Tele)~∞ |
| Focus Control | Auto/Manual/Interval/One Push/Preset |
| AE Mode | Auto/Shutter Priority/Iris Priority/Manual/Bright |
| Brightness | 0~14 |
| Manual Shutter | 1/1, 1/2, 1/4(3), 1/8(6), 1/15(12), 1/30(25), 1/60(50)~1/10000 |
| Manual Iris | F1.6~F32, Close |
| Sense Up | Off~32fields |
| ETC | Spot AE, Slow AE |
| D&N Mode | Auto/Day(Color)/Night(BW)/External-H or L |
| White Balance | AUTO/ATW/Indoor/Outdoor/Push/Manual |
| Image Freeze | Off/On |
| Image Flip | Off/Horizontal/Vertical/H+V(180° Flip) |
| Privacy Mask Zone | 8 Zones/14 mask color selectable |
| Digital Image Stabilization | Yes |
| Motion Detection | 4 Zones |
| D-WDR | Off/Low/Middle/High |
| WDR | Off/On, Adjustable(Level:0~29, Contrast:0~5, Bright:0~19) |
| BLC | Off/On, Area selectable |
| HLC | Off/On, Area selectable |
| AGC | Max.48dB, d2X ~ d9X |
| Sharpness | Adjustable (0~15) |
| 3D-DNR | Off/Auto/Low/Middle/High |
| 2D-DNR | Off/Auto/Low/Middle/High |
| Defog | Off/On/Auto |
| Preset Position | 256 position Presets(Zoom,Focus), 16 Memory Presets, Custom Preset |
| Language | English |
| UART Remote | RS232 TTL +5.0V(+3.3V compatible) |
| UART Protocol | VISCA/Pelco-D/Pelco-P/Hitachi: Automatic detection |
| UART Baud Rate | 2400/4800/9600/19200/38400/57600/115200bps |
| Supply Voltage | 12VDC (9V to 15VDC) |
| Power Consumption | Max. 5.3W / Non-working zoom & focus 3.8W |
| Dimension (mm) | 50.0 x 58.8 x 96.1 mm |
| Weight | Approx. 240g |
| Operating Temperature | -10℃~+50℃, Humidity(20~80%) |
| Storage Temperature | -20℃~+60℃, Humidity(20~95%) |
