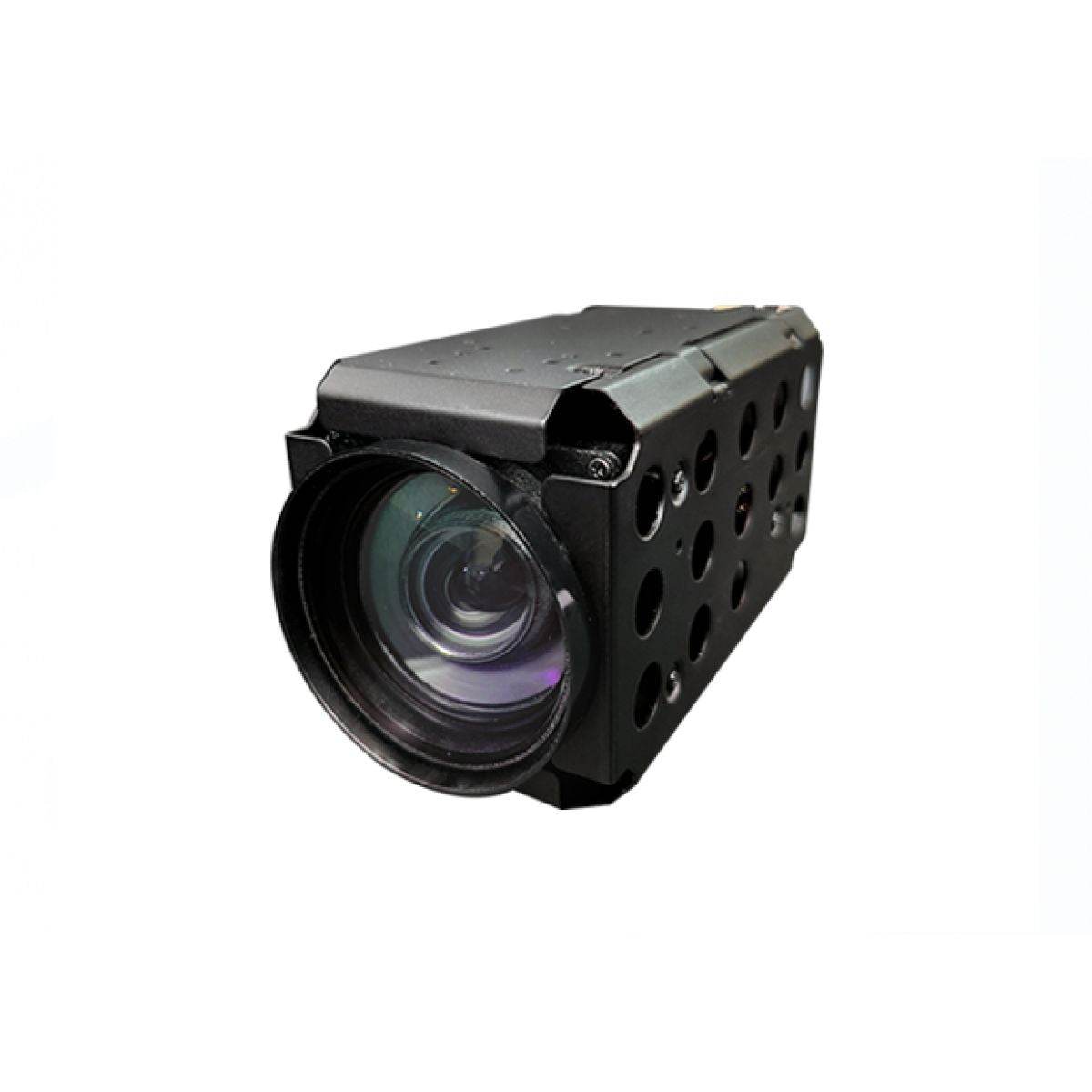

KT&C ATC-HZ5536W-LPN 3.19MP CMOS HD Network Camera with 36x Optical Zoom and 1080P60 Output
KT&C ATC-HZ5536W-LPN 3.19MP CMOS HD Network Camera with 36x Optical Zoom and 1080P60 Output
Couldn't load pickup availability
The KT&C ATC-HZ5536W-LPN is a high-performance camera featuring a 1/1.8" CMOS image sensor, delivering exceptional 3.19MP video resolution (2064x1544). It supports various video output modes including LVDS, Parallel, and CVBS, with a maximum resolution of 1080p at 60 (50) fps for smooth, high-definition video capture.
This camera boasts a 36x optical zoom lens with a focal length range of 6.0mm to 216mm, and an impressive minimum illumination of 0.1 Lux in day mode and 0.05 Lux at night. It includes advanced features like digital image stabilization, 3D-DNR, and adjustable WDR for optimal image quality in varying conditions. The compact design allows for easy installation, and it operates efficiently with a power consumption of just 5.3W, suitable for diverse surveillance applications.
Features:
- 1/1.8" SONY Progressive Scan Global Shutter CMOS
- 3.19MP 2064(H) x 1544(V)
- 432x AF Zoom (36x Optical / 12x Digital)
- 1080p 60/50/30/25 fps
- Mechanical Day & Night
- True WDR
- 3D DNR, Defog
- UART RS232-TTL(Pleco-D, Pelco C, VISCA, Hitachi)
Applications:
- Traffic
- Surveillance
- Military Applications
- Law Enforcement
- Border Patrol
- Monitoring
- Video Conferencing
- Low Vision Applications
| Image Sensor | 1/1.8" CMOS |
| Effective Pixels | 3.19MP 2064(H) x 1544(V) |
| Video Output Mode | LVDS / Parallel/ CVBS |
| Max. Video Resolution | LVDS/ Parallel : 1080p@60(50fps) |
| Synchronization System | Internal / External Option |
| Min. Illumination | Day Mode: 0.1Lux (F1.5) Night mode: 0.05Lux (F1.5/IR-cut filter on) DSS OFF, AGC45dB |
| S/N Rate | More than 52dB(AGC off, DSS off) |
| Lens | Type: AF Optical zoom lens(DC Iris), IR Corrective |
| Focal Length: f=6.0mm~216mm | |
| F-value: F1.5(W)~4.8(T) | |
| Angle of View: Horizontal 58.4°(W)~2.2°(T), Vertical 34.1°(W)~1.2°(T) | |
| Zoom Ratio | Optical 36x / Digital 12x |
| Focus Min.Working Distance | .1m(Wide) / 1.5m(Tele)~∞ |
| Focus Control | Auto/Manual/Interval/One Shot/Preset |
| AE mode | Auto/Shutter Priority/Iris Priority/Manual |
| Brightness | 0~14 |
| Manual Shutter | x32~x2(Low shutter), 1/30(25), 1/60(50)~1/30000 |
| Manual Iris | F1.6~F32, Close |
| Sense-up | Off~32fields |
| ETC | Spot AE, Slow AE |
| D&N Mode | Auto/Day(Color)/Night(BW)/External-H or L |
| White Balance | AUTO/ATW/Indoor/Outdoor/Push/Manual |
| Image Freeze | Off/On |
| Image Flip | Off/Horizontal/Vertical/H+V(180° Flip) |
| Privacy Mask Zone | 8 Zones/14 mask color selectable |
| Digital Image Stabilization | Yes |
| Motion Detection | 4 Zones |
| D-WDR | Off/Low/Middle/High |
| WDR | Off/On, Adjustable (Level: 0~29, Contrast: 0~5, Bright: 0~19) |
| BLC | Off/On, Area selectable |
| HLC | Off/On, Area selectable |
| AGC | Max.48dB |
| Sharpness | Adjustable(0~15) |
| 3D-DNR | Off/Auto/Low/Middle/High |
| 2D-DNR | Off/Auto/Low/Middle/High |
| Defog | Off/On/Auto |
| Preset Position | 256 position Presets(Zoom,Focus), 16Memory Presets, Custom Preset |
| Language | English |
| UART | Remote: RS232 TTL +5.0V(+3.3V compatible) |
| Protocol: VISCA/Pelco-D/Pelco-P/Hitachi: Automatic detection | |
| Baud rate: 2400/4800/9600/19200/38400/57600/115200bps | |
| UTC | - |
| Supply Voltage | 12VDC(7V to 15VDC) |
| Power Consumption | Max.5.3W / Non-working zoom&focus 3.8W |
| Dimension(mm) | 55.0x64.0x123mm |
| Weight | Approx.380g |
| Operating Temperature | -10℃~+50℃, Humidity(20~80%) |
| Storage Temperature | -20℃~+60℃, Humidity(20~95%) |
