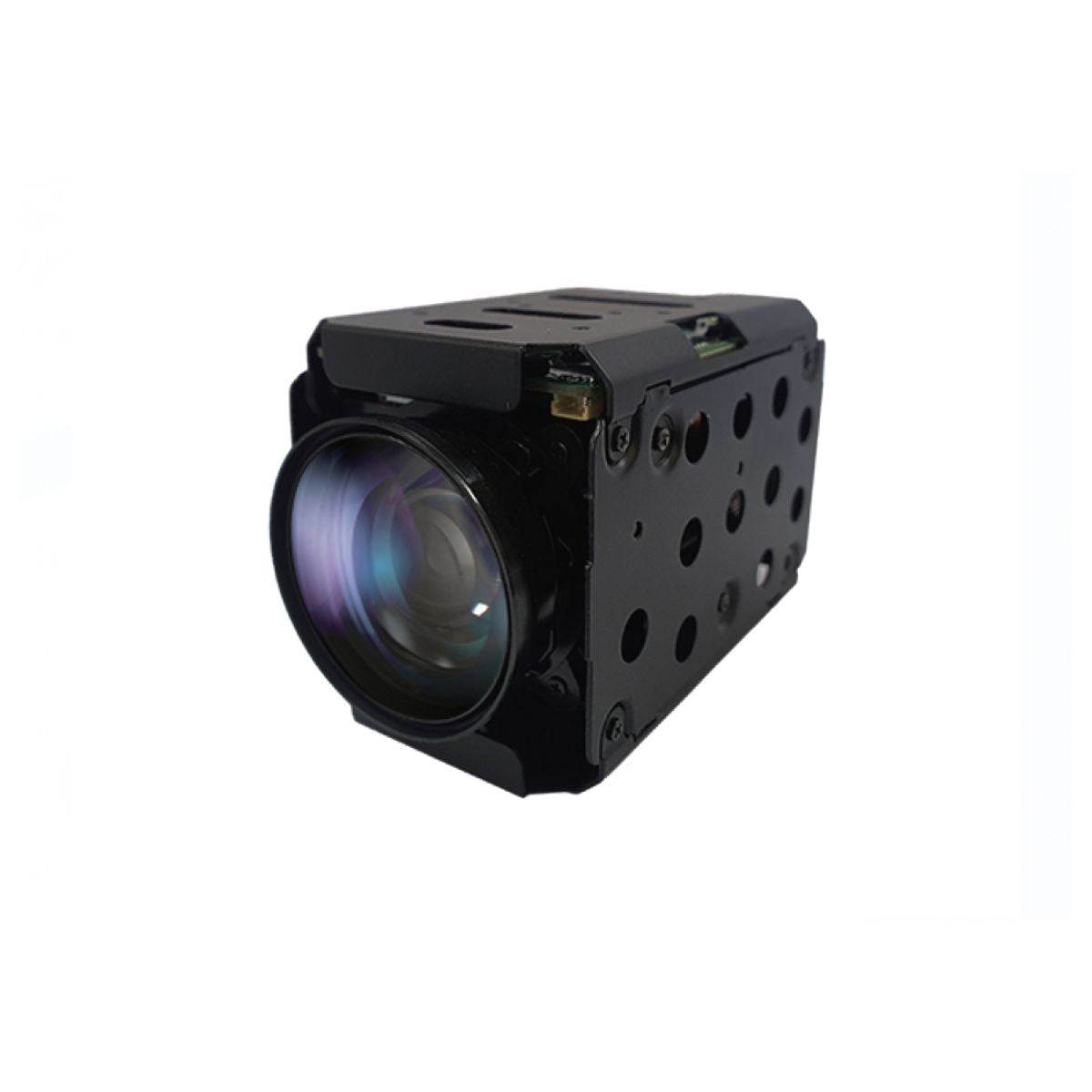

KT&C ATC-HZ5540T-LPN HD 40X Zoom Global Shutter Block Camera
KT&C ATC-HZ5540T-LPN HD 40X Zoom Global Shutter Block Camera
Couldn't load pickup availability
The KT&C ATC-HZ5540T-LPN is a high-performance surveillance camera featuring a 1/2.9" Progressive Scan Global Shutter CMOS image sensor, delivering 1.58MP resolution (1456x1088). It supports various video output modes, including Parallel, LVDS, and CVBS, with maximum resolutions of 720P60 for enhanced performance.
Equipped with a DC Iris AF optical zoom lens (4.25mm to 170mm), this camera boasts an optical zoom ratio of 40x and a digital zoom of 12x, providing versatility for detailed imaging. The lens aperture ranges from F1.6(W) to F4.95(T), with horizontal and vertical fields of view from 59.7° to 1.7° and 46.2° to 1.3°, respectively.
With a minimum illumination of 0.01 Lux in day mode and 0.007 Lux in night mode, the ATC-HZ5540T-LPN excels in low-light conditions, featuring an S/N ratio exceeding 55dB. Its advanced settings include multiple AE modes, a wide range of shutter speeds (1/1 to 1/10000 seconds), and robust features like digital image stabilization, motion detection, and comprehensive white balance adjustments. Compact dimensions (50 x 58.8 x 95.8mm) and a lightweight design (approx. 244g) make this camera an ideal choice for diverse surveillance applications.
Features:
- 1/2.9 Progressive Scan Global Shutter CMOS
- 480x AF Zoom(40x optical zoom, 12x digital zoom)
- 720p 60/50/30/25fps
- Mechanical Day&Night
- True WDR
- 3D DNR, Defog
- Global Shutter, Trigger In&Strobe Out
- UART RS232-TTL(Pleco-D, Pelco C, VISCA, Hitachi)
Applications:
- Traffic Surveillance
- Perimeter Security
- Public Safety
- Retail Monitoring
- Industrial Sites
| Image Sensor | 1/2.9" Progressive Scan Global Shutter CMOS |
| Effective Pixels | 1.58MP 1456(H) x 1088(V) |
| Video Output Mode | Parallel/LVDS/CVBS |
| Max. Video Resolution | LVDS / Parallel :1080p@60(50fps) |
| Synchronization System | Internal / External Option |
| Min.Illumination | Day mode: 0.01Lux(F1.6)Night mode: 0.007Lux(F1.6/ IR-cut filter on)Sens-Up off, AGC60dB |
| S/N Rate | More than 55dB(AGC off, Sense-up off) |
| Lens | AF Optical zoom lens(DC Iris), IR Correctivef=4.25mm~170mmF1.6(W)~4.95(T)Horizontal 59.7°(W)~1.7°(T), Vertical 46.2°(W)~1.3°(T) |
| Zoom Ratio | Optical 40x / Digital 12x |
| Focus Min. Working Distance | 0.01m(Wide)/3m(Tele)~Infinite |
| Focus Control | Auto/Interval/One Push/Manual/Preset |
| AE Mode | Auto/Shutter Priority/Iris Priority/AGC Priority/Manual |
| Brightness | 0~14 |
| Manual Shutter | 1/1, 1/2, 1/4(3), 1/8(6), 1/15(12), 1/30(25), 1/60(50)~1/10000 |
| Manual Iris | F1.6~F32, Close |
| Sense-Up | Off~32fields |
| ETC | Spot AE, Slow AE |
| D&N Mode | Auto/Day(Color)/Night(BW)/External-H or L |
| White Balance | AUTO/One Push/Indoor/Outdoor/ATW/Manual |
| Image Freeze | Off/On |
| Image Flip | Off/Horizontal/Vertical/H+V(180° Flip) |
| Privacy Mask Zone | 8 Zones/14 mask color selectable |
| Digital Image Stabilization | Yes |
| Motion Detection | 4 Zones |
| D-WDR | Off/On/Auto |
| WDR | Off/On, Adjustable(Strength:0~29, Contrast:0~5, AGC Max:1~50, HDR Sharpness:0~15, HDR Contrast:0~20, HDR Saturation:0~20) |
| BLC | Off/On, Area selectable |
| HLC | Off/On, Area selectable |
| AGC | Max.60dB |
| Sharpness | Adjustable(0~20) |
| 3D-DNR | Off/Auto/Low/Middle/High |
| 2D-DNR | Off/Auto/Low/Middle/High |
| Defog | Off/On/Auto |
| Language | English |
| UART | RS232 TTL +5.0V(+3.3V compatible)VISCA/Pelco-D/Pelco-P/Hitachi: Automatic detection)2400/4800/9600/19200/38400/57600/115200bps |
| Supply Voltage | 12VDC(9V to 15VDC) |
| Power Consumption | Max.8.4W / Non-working zoom & focus 4.5W |
| Dimension (mm) | 50X58.8X95.8mm |
| Weight | Approx.244g |
| Operating Temperature | -10℃~+50℃, Humidity(Less than 90%) |
| Storage Temperature | -20℃~+60℃, Humidity(Less than 90%) |
