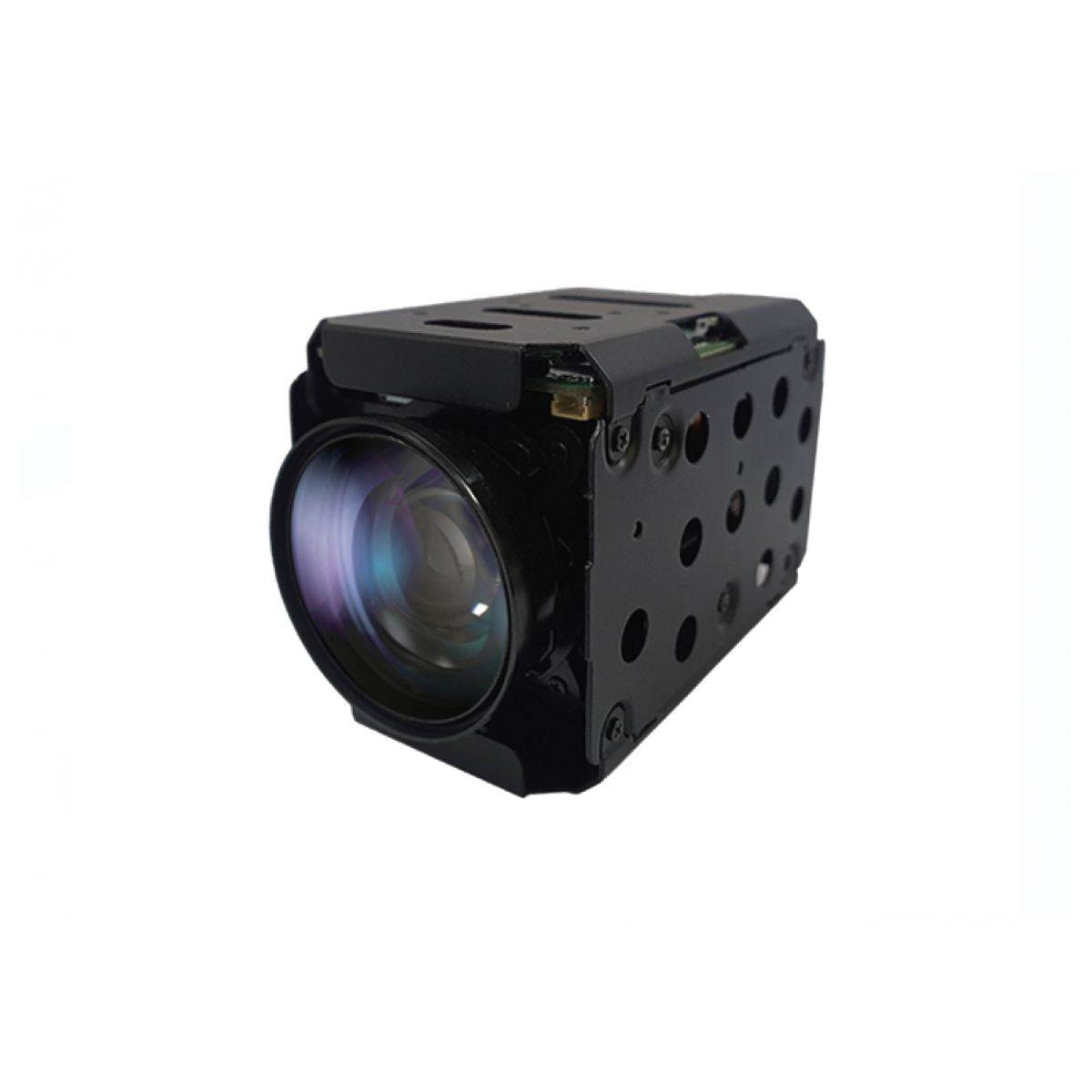

KT&C ATC-HZ5630T-LPX 2.13MP Security Camera with 30x Zoom, 1080P60 HD
KT&C ATC-HZ5630T-LPX 2.13MP Security Camera with 30x Zoom, 1080P60 HD
Couldn't load pickup availability
The KT&C ATC-HZ5630T-LPX is a high-performance security camera equipped with a 1/2.8” SONY EXMOR R Progressive Scan CMOS image sensor, providing an effective resolution of 2.13MP (1945 x 1097 pixels). This camera supports various video output modes, including LVDS, Parallel, CVBS (LP, LPX), TVI, and AVI, allowing for versatile integration in surveillance systems.
It achieves a maximum video resolution of 1080p at 60fps (LVDS/Parallel) and 30fps (TVI/AVI). The ATC-HZ5630T-LPX performs well under low-light conditions, with a minimum illumination of 0.1Lux in day mode and 0.05Lux in night mode with an IR-cut filter. Its signal-to-noise ratio exceeds 55dB (AGC off, DSS off), ensuring high-quality image capture.
The camera features an AF optical zoom lens with 30x optical zoom capability (f=4.3~129mm) and a wide aperture range of F1.6 to F5.0, providing a horizontal field of view from 53.9° (wide) to 1.93° (telephoto). Advanced exposure control includes Auto, Shutter Priority, and Manual modes, while the integrated WDR, BLC, and HLC functions enhance image quality in varying lighting conditions.
With 256 position presets and a maximum power consumption of 6.4W, the KT&C ATC-HZ5630T-LPX is designed for efficiency and adaptability in both indoor and outdoor environments.
Features:
- 1/2.8 Progressive Scan CMOS
- 360x AF Zoom(30x optical zoom, 12x digital zoom)
- 1080p 60/50/30/25fps
- Mechanical Day&Night
- True WDR
- 3D DNR, Defog
- UART RS232-TTL(Pleco-D, Pelco C, VISCA, Hitachi)
- ICT function: Image center tracking
Applications:
- Perimeter Security:Ideal for monitoring large perimeters with precise zoom and tracking features.
- Critical Infrastructure Surveillance: Ensures reliable imaging in varied lighting for sites like power plants and airports.
- Traffic Monitoring:Captures high-definition, real-time video for effective traffic management and law enforcement.
- Urban Surveillance: Supports citywide monitoring with dynamic tracking and detailed imagery.
- Public Space Monitoring:Provides comprehensive coverage of parks, plazas, and transit stations.
- Border Surveillance:Offers long-range monitoring and tracking for border security.
-
Industrial Facility Security:Monitors complex environments with robust zoom and low-light performance.
| Image Sensor | 1/2.8” SONY EXMOR R Progressive Scan CMOS |
| Effective Pixels | 2.13MP 1945(H) x 1097(V) |
| Video Output Mode | LVDS/Parallel/CVBS(LP, LPX) TVI/AVI/CVBS(TA) |
| Max. Video Resolution | LVDS / Parallel : 1080p@60(50fps) TVI/AVI : 1080p@30(25fps) |
| Synchronization System | Internal/External Options |
| Min. Illumination | Day mode: 0.1Lux(F1.6) Night mode: 0.05Lux(F1.6/ IR-cut filter on) |
| S/N Rate | More than 55dB (AGC off, DSS off) |
| Lens | AF Optical zoom lens (DC Iris), IR Corrective f=4.3~129mm F1.6 (W) to 5.0 (T) Horizontal 53.9°(W)~1.93°(T), Vertical 39.8°(W)~1.41°(T) |
| Zoom Ratio | Optical 30x / Digital 12x |
| Focus Min. Working Distance | 0.1m(Wide)/1.5m(Tele)~Infinite |
| Focus Control | Auto/Interval/One Push/Manual/Preset |
| AE Mode | Auto/Shutter Priority/Iris Priority/AGC Priority/Manual |
| Brightness | 0-14 |
| Manual Shutter | 1/1, 1/2, 1/4(3), 1/8(6), 1/15(12), 1/30(25), 1/60(50) to 1/10000 |
| Manual Iris | F1.6 to F32, Close |
| Sense-up | Off~32fields |
| ETC | Spot AE, Slow AE |
| D&N Mode | Auto/Day(Color)/Night(BW)/External-H or L |
| White Balance | AUTO/ATW/Indoor/Outdoor/One Push/Manual |
| Image Freeze | Off/On |
| Image Flip | Off/Horizontal/Vertical/H+V (180° Flip) |
| Privacy Mask Zone | 8 Zones/14 mask color selectable |
| Digital Image Stabilization | Disabled on this model |
| Motion Detection | 4 Zones |
| D-WDR | Off/Low/Middle/High |
| WDR | Off/On, Adjustable (Level:0~29, Contrast:0~5, Bright:0~19) |
| BLC | Off/On, Area selectable |
| HLC | Off/On, Area selectable |
| AGC | Max.72dB |
| Sharpness | Adjustable(0~15) |
| 3D-DNR | Off/Auto/Low/Middle/High |
| 2D-DNR | Off/Auto/Low/Middle/High |
| Defog | Off/On/Auto |
| Preset | 256 Position Presets(Zoom, Focus), 16 Memory Presets, Custom Preset |
| Language | English |
| UART | RS232 TTL +5.0V (+3.3V compatible) VISCA/Pelco-D/Pelco-P/Hitachi: Automatic detection 2400/4800/9600/19200/38400/57600/115200 bps |
| Supply Voltage | 12VDC (9V to 15VDC) |
| Power Consumption | Max.6.4W / Non-working zoom&focus 3.8W |
| Dimension (mm) | 50 X 58.8 X 90.5mm |
| Weight | Approx. 244g |
| Operating Temperature | -10℃~+50℃, Humidity(Less than 90%) |
| Storage Temperature | -20℃~+60℃, Humidity(Less than 90%) |
