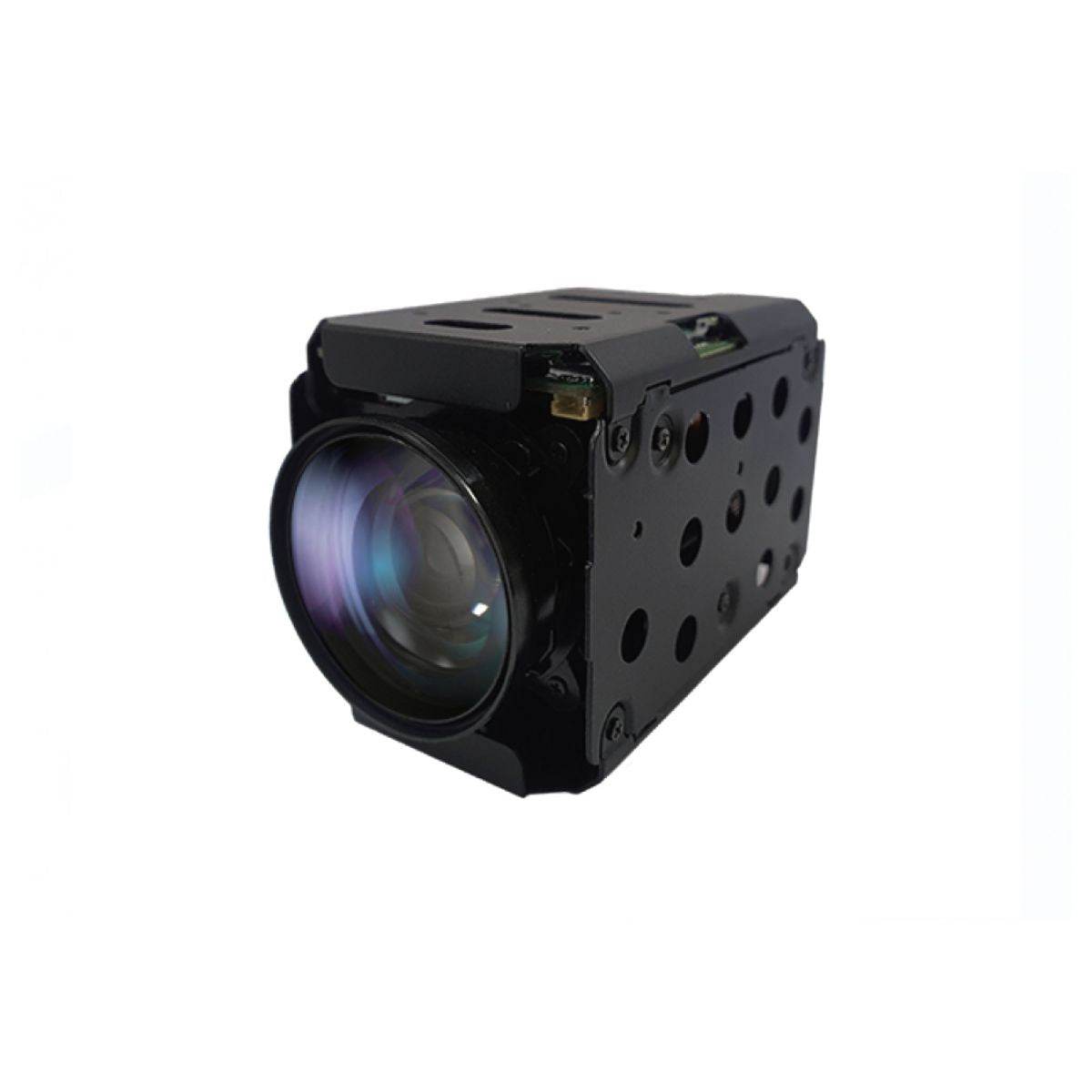

KT&C ATC-HZ7810C-TNB3 Surveillance Camera: 1080P60 Full HD, 10x Optical Zoom, 1/2.8” Exmor R CMOS
KT&C ATC-HZ7810C-TNB3 Surveillance Camera: 1080P60 Full HD, 10x Optical Zoom, 1/2.8” Exmor R CMOS
Couldn't load pickup availability
The KT&C ATC-HZ7810C-TNB3 surveillance camera combines cutting-edge imaging capabilities with advanced features for optimal performance in professional security applications. Its 1/2.8" Exmor R CMOS image sensor delivers full HD 1080p resolution with 2.13 million effective pixels, capturing detailed, high-definition visuals. With a 10x optical zoom lens (f=5.1mm to 51mm, F1.6 to F1.8) and an impressive total zoom capability of 120x (including digital zoom), this camera is suited for both close-up and distant monitoring tasks.
For enhanced visibility in varied lighting, the camera features Wide Dynamic Range (WDR), advanced 3D and 2D noise reduction (3DNR/2DNR), and an IR-cut filter that automatically switches to low-light mode, achieving sensitivity down to 0.01 Lux in night mode. The KT&C ATC-HZ7810C-TNB3 also provides flexible output options with HD-SDI, LVDS, and CVBS video output, supporting multiple resolutions including 1080p60 and 720p, ideal for compatibility with a range of systems.
Additional features include customizable privacy zone masking with up to 24 zones, a motion detection function across three distinct areas, and an OSD with support for up to 21 lines of customizable text. The camera also supports multiple white balance modes, synchronization options, and camera control protocol via SONY VISCA with a baud rate of 9.6 Kbps. Compact and efficient, it weighs approximately 210g and operates at a low power consumption of 4.4W with a DC power supply ranging from 7V to 15V.
Features:
- High-Resolution Sensor: 1/2.8” 2.13M Exmor R CMOS for FULL HD imaging.
- Wide Dynamic Range (WDR): Advanced progressive scan technology for optimal image quality.
- Powerful Zoom: 10× optical zoom with F1.6 aperture, and 120× total zoom capability.
- Noise Reduction: 3DNR/2DNR for clear images in low light.
- Digital Output: Multiple resolutions and frame rates, including 1080p and 720p options.
- IR Cut-Filter: Automatic engagement for improved low-light sensitivity.
- Privacy Zone Masking: Up to 16 blocks for concealing sensitive areas.
- Motion Detection: Alerts for movement within the surveillance area.
- Customizable Display: Up to 21 lines of text display (30 characters per line) with VISCA control.
Applications:
- CCTV Systems
- Security Surveillance
- Surveillance Operations
- Sewer and Pipe Inspection
| Image Sensor | 1/2.8" Exmor CMOS image sensor | |
| Effective Pixels | 2.38 million pixels | |
| Resolution | 1080P60 (1920x1080) | |
| Sensitivity | Day Mode :0.15 Lux @ F1.5 | |
| Night Mode :0.01 Lux @ F1.5 | ||
| S/N Rate | More than 52 dB | |
| Synchronization | Internal | |
| Back Light Compensation | OFF/BLC/HLC/WDR | |
| White Balance | Auto / ATW / Indoor / Outdoor / Push / Manual | |
| Shutter Speed | 1/25(30)/1/50(60) ~ 1/60000 sec | |
| OSD | English | |
| Motion Detection | 3 Area | |
| Privacy Zone Masking | 1~24, Privacy mask zone | |
| Picture Effects | Freeze, Image Reverse(H, V, H/V), Nega | |
| Camera Control Protocol | SONY VISCA, Baud Rate : 9.6 Kbps | |
| Video Output | HD-SDI,LVDS(DIgital OUT) | |
| CVBS 1Vp-p (75 Ω) | ||
| Power Supply | 12VDC (7V to 15VDC) | |
| Power Consumption | Max 4.4 W | |

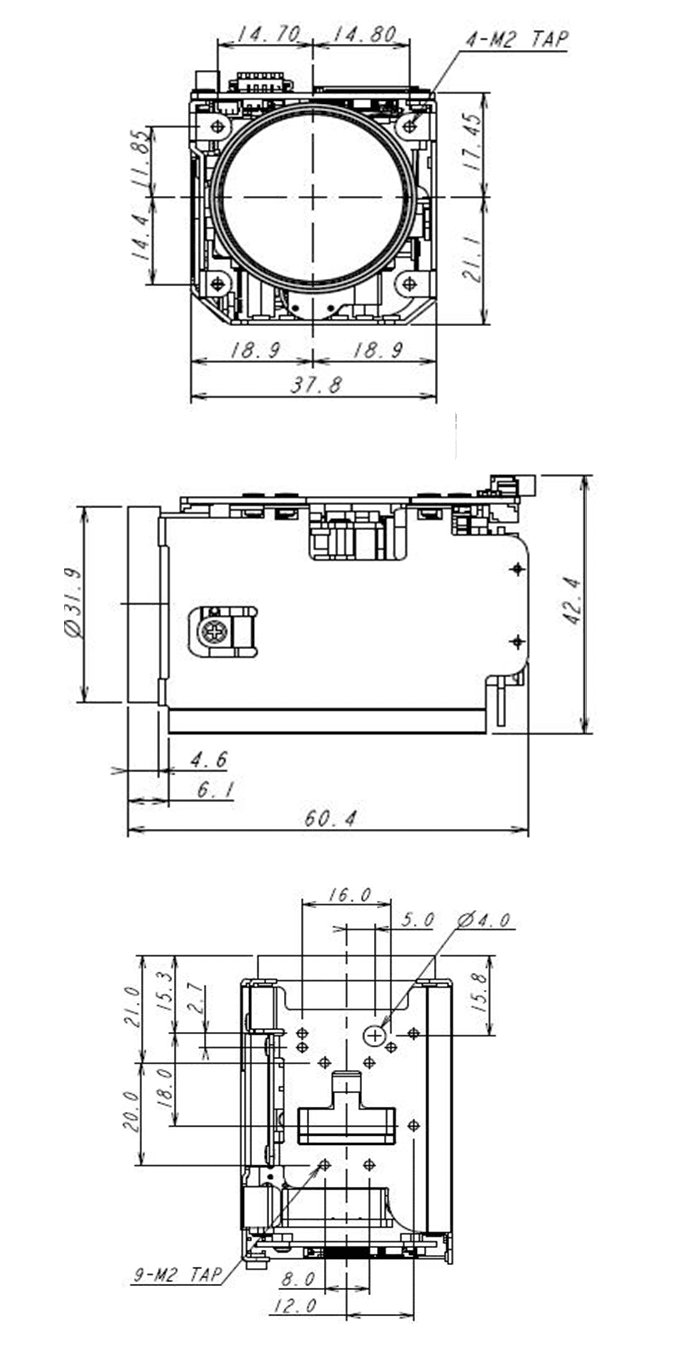

| Dimensions (WxHxD) | 41.6mm x 45mm x 61.6mm | |
| Lens | f=5.1mm ~ 51mm (F1.6 ~ 1.8F ) | |
| Zoom Rate | Optical to 10x | |
| Digital to 12x | ||
| Min. Working Distance | 0.01m(Wide) / 1.0m (Tele) | |
| FOV | D=68.0°(W) ~ 6.7°(T) | |
| Aperture | DC Iris | |
| Mechanical D&N | ICR(IR Cut filter Removable) | |
| Interfaces | 30 pin LVDS | |
| Weight | Approx. 210g | |
