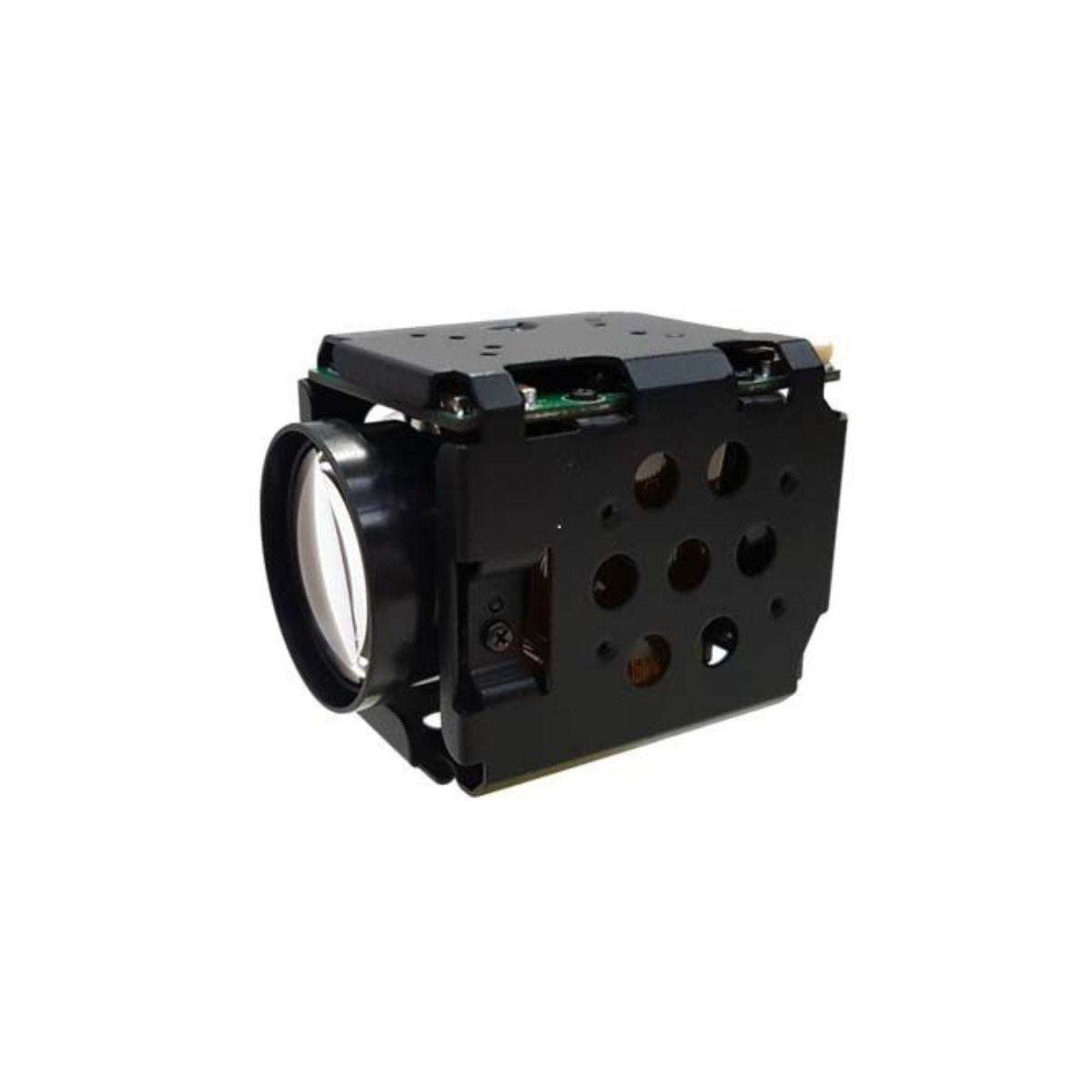

KT&C ATC-HZ7810LC 1080P60 Full HD Surveillance Camera with Exmor CMOS Sensor, 10x Optical Zoom, and Advanced Low Light Performance
KT&C ATC-HZ7810LC 1080P60 Full HD Surveillance Camera with Exmor CMOS Sensor, 10x Optical Zoom, and Advanced Low Light Performance
Couldn't load pickup availability
The KT&C ATC-HZ7810LC is a high-performance surveillance camera equipped with a 1/2.8" Exmor CMOS image sensor that delivers 2.38 million effective pixels and 1080P60 resolution (1920x1080), ensuring outstanding image clarity. Designed for optimal performance in low-light conditions, it features a day sensitivity of 0.15 Lux and a night mode sensitivity of 0.01 Lux at F1.5, making it perfect for various surveillance scenarios.
With a S/N ratio exceeding 52 dB, internal synchronization, and comprehensive backlight compensation options (OFF, BLC, HLC, WDR), this camera adapts to different lighting environments seamlessly. The camera supports multiple white balance modes and has a flexible shutter speed range from 1/25(30) to 1/60000 sec.
Its lens provides a focal length of 5.1mm to 51mm, featuring 10x optical zoom and up to 12x digital zoom, with a minimum working distance of 0.01m (wide) to 1.0m (tele). The field of view ranges from 68.0° (wide) to 6.7° (tele). Operating within -10° to +50°C, the camera utilizes a 12V DC power supply (7V to 15V) and consumes a maximum of 4.4 W.
It supports SONY VISCA control protocol at a baud rate of 9.6 Kbps and includes 30 pin LVDS interfaces, weighing approximately 210g with dimensions of 41.6mm x 45mm x 61.6mm.
Features:
- 1/2.8" Sony SONY EXMOR Progressive Scan
- 120x AF Zoom (10x Optical Zoom, 12x Digital Zoom)
- 1080P 30fps (25fps)
- Mechanical Day & Night
- Digital WDR, 3D DNR, Defog
- Multi Protocol (Compatible with SONY VISCA)
- LVDS (Digital OUT), CVBS, RS232 TTL
Applications:
- Unmanned Vehicles
- Surveillance Camera
- Police Vehicle Camera
- ROV Camera
- Remote Ocean Vehicle Camera
- Unmanned Aerial Vehicle
- Intelligent Traffic Camera
- Video Conference
- House of Worship Camera
ATC-HZ7810LC Spec Sheet
ATC-HZ7810LC Technical Manual
| Image Sensor | 1/2.8" Exmor CMOS Image Sensor | ||
| Effective Pixels | 2.38 Million Pixels | ||
| Resolution | 1080P (1920x1080) | ||
| Sensitivity | Day Mode: 0.15 Lux @ F1.5Night Mode: 0.01 Lux @F1.5 | ||
| S/N Rate | More than 52 dB | ||
| Synchronization | Internal | ||
| Back Light Compensation | OFF/BLC/HLC/WDR | ||
| White Balance | Auto / ATW / Indoor / Outdoor / Push / Manual | ||
| Shutter Speed | 1/25(30)/1/50(60) - 1/60000 sec | ||
| OSD | English | ||
| Motion Detection | 3 Area | ||
| Privacy Zone Masking | 1-24, Privacy Mask Zone | ||
| Picture Effects | Freeze, Image Reverse (H, V, H/V) Negative | ||
| Camera Control Protocol | SONY VISCA, Baud Rate : 9.6 Kbps | ||
| Power Supply | 12V DC (7V to 15V DC) | ||
| Power Consumption | Max 4.4 W | ||
| DImensions | 41.6mm x 45mm x 61.6mm | ||
| Lens | f=5.1mm - 51mm (F1.6 - 1.8F) | ||
| Zoom Rate | Optical to 10xDigital 12x | ||
| Min. Working Distance | 0.01m (Wide) / 1.0m (Tele) | ||
| FOV | D=68.0°(W) - 6.7° (T) | ||
| Aperture | DC Iris | ||
| Mechanical D&N | ICR (IR Cut Filter Removable) | ||
| Interfaces | 30 pin LVDS | ||
| Weight | Approx. 210g | ||
| Ambient Operating Temperature | -10° - +50°C | ||
| Storage Temperature | -20° - +60°C | ||
