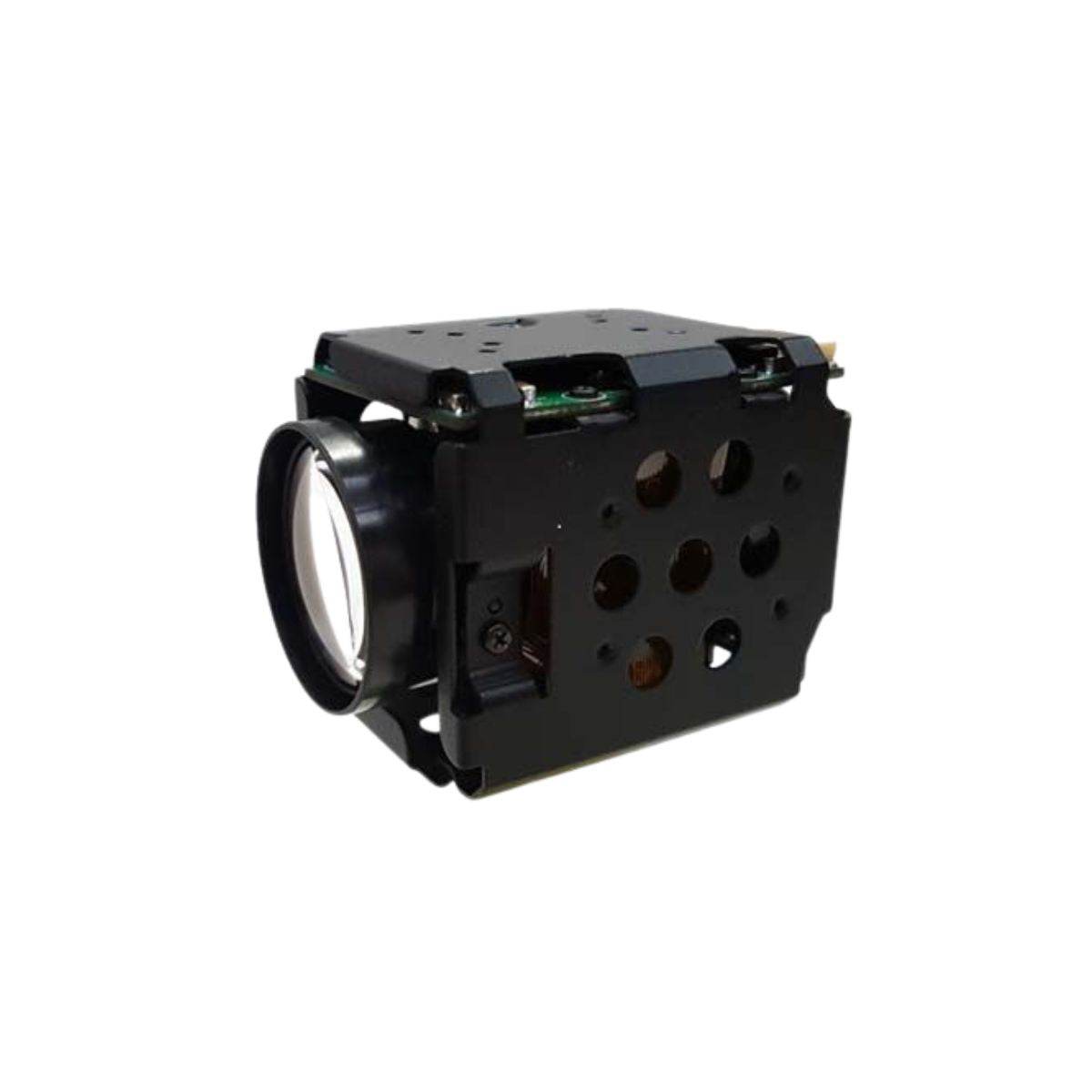

KT&C ATC-HZ7810LSC High-Definition 1080P60 Day/Night Camera with 10x Optical Zoom
KT&C ATC-HZ7810LSC High-Definition 1080P60 Day/Night Camera with 10x Optical Zoom
Couldn't load pickup availability
The KT&C ATC-HZ7810LSC is a high-definition surveillance camera designed for exceptional performance in various lighting conditions. Equipped with a 1/2.8" Exmor CMOS image sensor, it offers an effective pixel count of 2.38 million, delivering stunning 1080P60 resolution (1920x1080). With day sensitivity at 0.15 Lux and night sensitivity at an impressive 0.01 Lux at F1.5, it ensures clear images even in low light.
This camera features an S/N ratio exceeding 52 dB and internal synchronization for reliable performance. Backlight compensation options include OFF, BLC, HLC, and WDR, providing balanced exposure in challenging scenes. The adjustable white balance supports automatic, manual, indoor, and outdoor modes.
Its shutter speed ranges from 1/25(30)/1/50(60) to 1/60000 seconds, facilitating sharp image capture. Notable features include motion detection across three areas and privacy zone masking (1-24 zones). The camera control protocol complies with SONY VISCA at a baud rate of 9.6 Kbps.
The lens boasts a DC iris (f=5.1mm - 51mm, F1.6 - 1.8F), with optical zoom up to 10x and digital zoom up to 12x. It supports a minimum working distance of 0.01m (wide) and 1.0m (tele), with a field of view ranging from 68.0° (wide) to 6.7° (tele). Compact at 41.6mm x 45mm x 61.6mm and weighing approximately 210g, the ATC-HZ7810LSC is ideal for a variety of security applications.
Features:
- 1/2.8" Sony EXMOR Progressive Scan Sensor
- 120x AF Zoom
- Full HD 1080p Video Capture
- Mechanical Day & Night Function
- Digital WDR (Wide Dynamic Range)
- 3D DNR (Digital Noise Reduction)
- Defog Technology
- Multi-Protocol Compatibility
- Versatile Video Output Options
Applications:
- Robotics
- Drones
- Bomb Disposal Robots
- Unmanned Vehicles
- Surveillance Camera
- Police Vehicle Camera
- ROV (Remotely Operated Vehicle) Camera
- Remote Ocean Vehicle Camera
- Unmanned Aerial Vehicle (UAV) Camera
- Intelligent Traffic Camera
- Industrial Camera
- Video Conference Camera
- House of Worship Camera
ATC-HZ7810LSC Spec Sheet
ATC-HZ7810LSC Technical Manual
| Image Sensor | 1/2.8" Exmor CMOS Image Sensor | ||
| Effective Pixels | 2.38 Million Pixels | ||
| Resolution | 1080P (1920x1080) | ||
| Sensitivity | Day Mode: 0.15 Lux @ F1.5Night Mode: 0.01 Lux @F1.5 | ||
| S/N Rate | More than 52 dB | ||
| Synchronization | Internal | ||
| Back Light Compensation | OFF/BLC/HLC/WDR | ||
| White Balance | Auto / ATW / Indoor / Outdoor / Push / Manual | ||
| Shutter Speed | 1/25(30)/1/50(60) - 1/60000 sec | ||
| OSD | English | ||
| Motion Detection | 3 Area | ||
| Privacy Zone Masking | 1-24, Privacy Mask Zone | ||
| Picture Effects | Freeze, Image Reverse (H, V, H/V) Negative | ||
| Camera Control Protocol | SONY VISCA, Baud Rate : 9.6 Kbps | ||
| Power Supply | 12V DC (7V to 15V DC) | ||
| Power Consumption | Max 4.4 W | ||
| DImensions | 41.6mm x 45mm x 61.6mm | ||
| Lens | f=5.1mm - 51mm (F1.6 - 1.8F) | ||
| Zoom Rate | Optical to 10xDigital 12x | ||
| Min. Working Distance | 0.01m (Wide) / 1.0m (Tele) | ||
| FOV | D=68.0°(W) - 6.7° (T) | ||
| Aperture | DC Iris | ||
| Mechanical D&N | ICR (IR Cut Filter Removable) | ||
| Interfaces | 30 pin LVDS | ||
| Weight | Approx. 210g | ||
| Ambient Operating Temperature | -10° - +50°C | ||
| Storage Temperature | -20° - +60°C | ||
