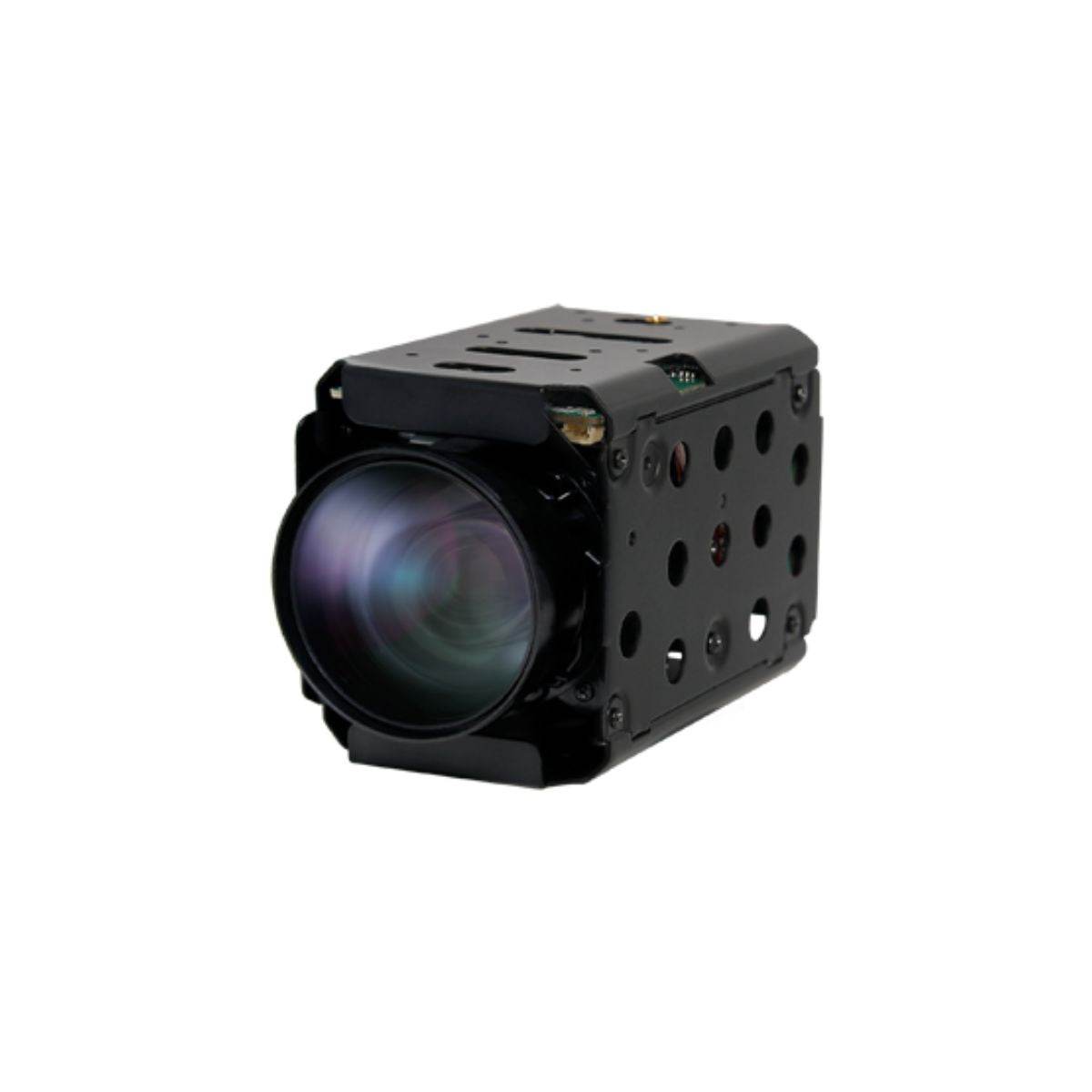

KT&C ATC-HZ7830T-LTN: 1080p High-Definition IP Camera with 360x Zoom

The KT&C ATC-HZ7830T-LTN is a high-performance surveillance camera featuring a 1/2.8” Sony EXMOR CMOS sensor, delivering 1080p resolution at 60/50fps for sharp, high-definition imagery. This camera boasts an impressive 360x zoom capability, combining 30x optical and 12x digital zoom for detailed targeting. True Wide Dynamic Range (WDR) technology ensures balanced lighting for clear images in high-contrast environments.

With a sensitivity of 0.5 Lux in day mode and 0.1 Lux at night (F1.6), the camera excels in various lighting conditions. Advanced features include 3D Digital Noise Reduction (DNR) for cleaner visuals, customizable motion detection across four zones, and privacy masking across 16 zones. It supports UART RS232-TTL control with compatibility for Pelco-D, Pelco-C, VISCA, and Hitachi protocols, facilitating seamless integration into existing systems. The camera operates on a DC supply of 12V (7V-15V range) with a maximum power consumption of 5.0W, making it an ideal choice for professional surveillance applications.

Features:

• 1/2.8” CMOS Sensor: Captures high-resolution images with sharp detail.
• 360x Zoom: Includes 30x optical and 12x digital zoom for precise targeting.
• 1080p Video at 60/50fps: Delivers smooth, high-definition footage.
• Day & Night Function: Adjusts automatically to lighting changes.
• True WDR: Balances light for clear images in high-contrast scenes.
• 3D DNR: Reduces noise for cleaner visuals.
• Defog: Enhances clarity in foggy or adverse weather.
• UART RS232-TTL: Compatible with Pelco-D, Pelco-C, VISCA, and Hitachi protocols for easy integration.

Applications:

• Perimeter Security: Monitor large outdoor areas effectively.
• Traffic Surveillance: Capture clear details in fast-moving environments.
• Public Safety: Ensure security in public spaces and infrastructure.
• Industrial Monitoring: Observe production lines with precision.
• Retail Security: Prevent theft and enhance safety in stores.
• Transportation Hubs: Secure busy areas with reliable, clear footage.

ATC-HZ7830T-LTN Spec Sheet
