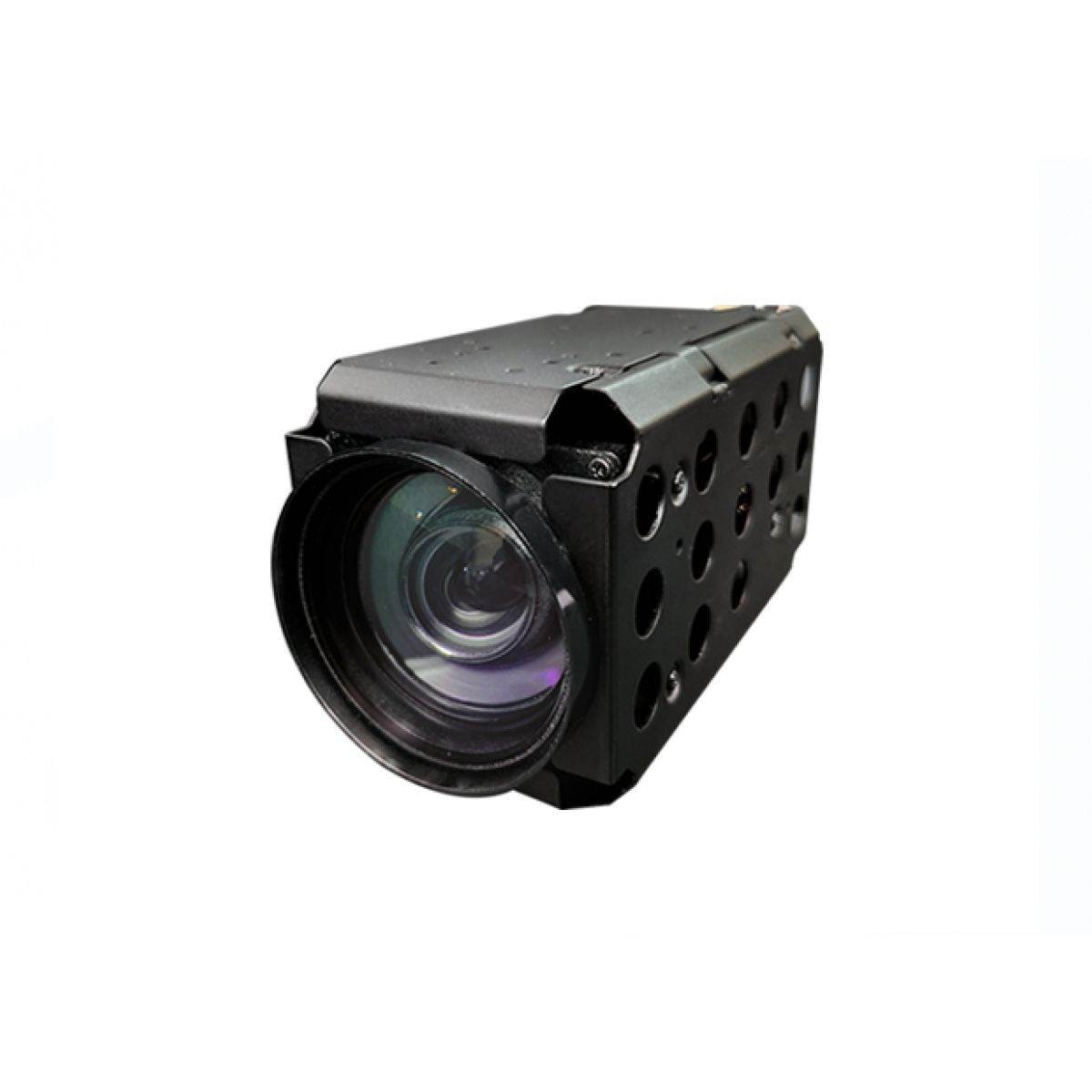

KT&C ATC-HZ7830Z-LTN 2.13MP 1080P60 Output Camera with 30x Optical Zoom

The KT&C ATC-HZ7830Z-LTN is a high-performance surveillance camera featuring a 1/2.8" Exmor R Progressive Scan CMOS sensor, delivering 2.13MP resolution (1945x1097 pixels). This camera supports multiple video output modes, including LVDS, SDI, CVBS, and TVI, with a maximum video resolution of 1080P60 (1080p at 60 frames per second), ensuring fluid and clear video capture.

With a minimum illumination of 0.5 Lux in day mode and 0.16 Lux at night (IR-cut filter engaged), the ATC-HZ7830Z-LTN excels in low-light conditions. It is equipped with a 30x optical zoom lens (f=4.3-129mm) and an adjustable F-value from F1.6 to F5.0, providing outstanding detail across varying distances.

Key features include digital image stabilization, adjustable sharpness, and an advanced WDR system (Wide Dynamic Range) configurable to Off, Low, Medium, or High settings. The camera offers privacy masking for up to 16 zones with 14 selectable colors and comes with an RS232 TTL remote control interface for seamless integration. Compact at 50 x 58.8 x 90.5 mm and weighing approximately 244 g, it operates efficiently across a temperature range of -10°C to +50°C with a maximum power consumption of 3.0W.

Features:

• 1/2.8" CMOS Sensor
• 360x AF Zoom
• Full HD 1080p Video
• Day & Night Function
• True WDR
• 3D DNR & Defog
• Protocol Compatibility

Applications:

• Surveillance Systems: Ideal for detailed monitoring across large areas.
• Security Monitoring: Provides reliable, high-quality footage in diverse lighting conditions.
• Industrial Monitoring: Captures precise imagery in demanding environments.
• Traffic Monitoring: Monitors and records traffic with clarity and accuracy.
• Critical Infrastructure Surveillance: Ensures detailed monitoring of sensitive areas.
• Wildlife Observation: Suitable for monitoring wildlife in various light conditions.

ATC-HZ7830Z-LTN Spec Sheet
